Search › Model › SH410
SH410

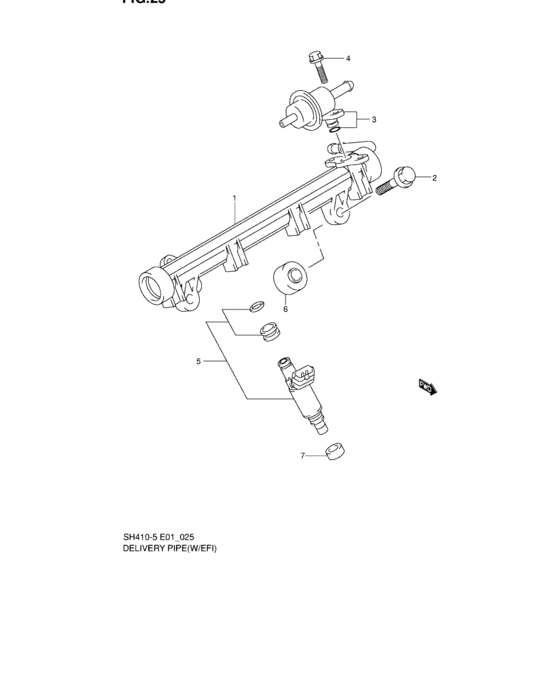

Delivery pipe (W/FUEL INJECTION) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 15730-M830A-000 | Pipe, delivery |
| 2 | 01550-08403-000 | Bolt |
| 2 | 01550-0840B-000 | Bolt |
| 2 | 01550-0840A-000 | Bolt |
| 3 | 15610-M63E8-000 | Regulator, pressure |
| 4 | 09103-06168-000 | BOLT(6X10) |
| 5 | 15710-M83F0-000 | Injector assy, fuel |
| 6 | 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe |
| 7 | 09320-08062-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 01550-08403-000 | Bolt | Delivery pipe (W/FUEL INJECTION) |
| 01550-0840A-000 | Bolt | Delivery pipe (W/FUEL INJECTION) |
| 01550-0840B-000 | Bolt | Delivery pipe (W/FUEL INJECTION) |
| 09103-06168-000 | BOLT(6X10) | Delivery pipe (W/FUEL INJECTION) |
| 09320-08062-000 | CUSHION | Delivery pipe (W/FUEL INJECTION) |
| 15610-M63E8-000 | Regulator, pressure | Delivery pipe (W/FUEL INJECTION) |
| 15710-M83F0-000 | Injector assy, fuel | Delivery pipe (W/FUEL INJECTION) |
| 15730-M830A-000 | Pipe, delivery | Delivery pipe (W/FUEL INJECTION) |
| 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe | Delivery pipe (W/FUEL INJECTION) |
