Search › Model › SH410
SH410

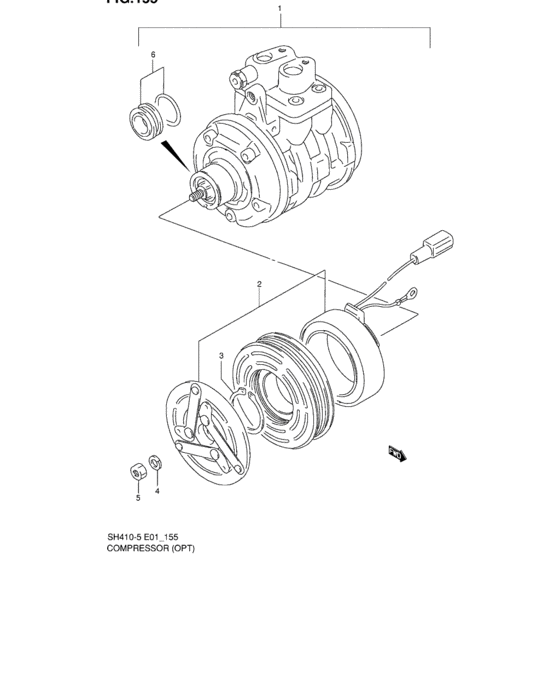

Compressor (OPT) 11
| # | OEM | Part name |
|---|---|---|
| 0 | 95200-72F00-000 | Compressor & magnet clutch |
| 1 | 95230-72F00-000 | Compressor |
| 2 | 95210-60B21-000 | CLUTCH,MAGNET |
| 3 | 08331-31383-000 | CIRCLIP |
| 4 | 08321-01083-000 | Lock washer |
| 4 | 08321-0108B-000 | WASHER,LOCK |
| 4 | 08321-0108A-000 | WASHER,LOCK |
| 5 | 08310-00083-000 | Nut |
| 5 | 08310-0008B-000 | NUT |
| 5 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 6 | 95260-82002-000 | SEAL ASSY,LIP |
| OEM | Part name | Category |
|---|---|---|
| 08310-00083-000 | Nut | Compressor (OPT) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Compressor (OPT) |
| 08310-0008B-000 | NUT | Compressor (OPT) |
| 08321-01083-000 | Lock washer | Compressor (OPT) |
| 08321-0108A-000 | WASHER,LOCK | Compressor (OPT) |
| 08321-0108B-000 | WASHER,LOCK | Compressor (OPT) |
| 08331-31383-000 | CIRCLIP | Compressor (OPT) |
| 95200-72F00-000 | Compressor & magnet clutch | Compressor (OPT) |
| 95210-60B21-000 | CLUTCH,MAGNET | Compressor (OPT) |
| 95230-72F00-000 | Compressor | Compressor (OPT) |
| 95260-82002-000 | SEAL ASSY,LIP | Compressor (OPT) |
