Search › Model › SH410
SH410

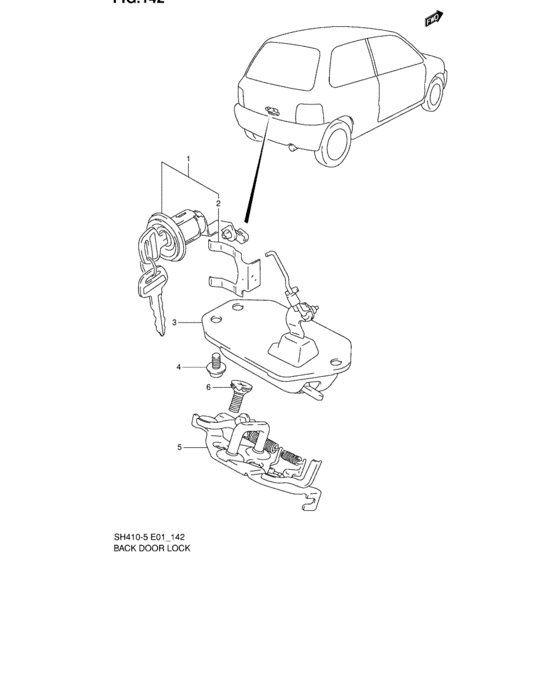

Back dr lock (BACK DR LOCK) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 82501-M7086-000 | Cylinder, back door lock |
| 2 | 82577-70B01-000 | CLIP,CYLINDER |
| 3 | 82510-M70F0-000 | Latch assy, back door |
| 4 | 02112-76123-000 | Screw |
| 4 | 02112-7612B-000 | SCREW |
| 5 | 82650-M70F0-000 | Striker, back door latch |
| 6 | 09137-08006-000 | Screw - Screw (8x18) |
| 6 | 09137-08011-000 | SCREW(8X18) |
| 6 | 09137-08004-000 | SCREW(8X18) |
| OEM | Part name | Category |
|---|---|---|
| 02112-76123-000 | Screw | Back dr lock (BACK DR LOCK) |
| 02112-7612B-000 | SCREW | Back dr lock (BACK DR LOCK) |
| 09137-08004-000 | SCREW(8X18) | Back dr lock (BACK DR LOCK) |
| 09137-08006-000 | Screw - Screw (8x18) | Back dr lock (BACK DR LOCK) |
| 09137-08011-000 | SCREW(8X18) | Back dr lock (BACK DR LOCK) |
| 82501-M7086-000 | Cylinder, back door lock | Back dr lock (BACK DR LOCK) |
| 82510-M70F0-000 | Latch assy, back door | Back dr lock (BACK DR LOCK) |
| 82577-70B01-000 | CLIP,CYLINDER | Back dr lock (BACK DR LOCK) |
| 82650-M70F0-000 | Striker, back door latch | Back dr lock (BACK DR LOCK) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 30
- Category
- 156
- Collected
- 2026-08-01
