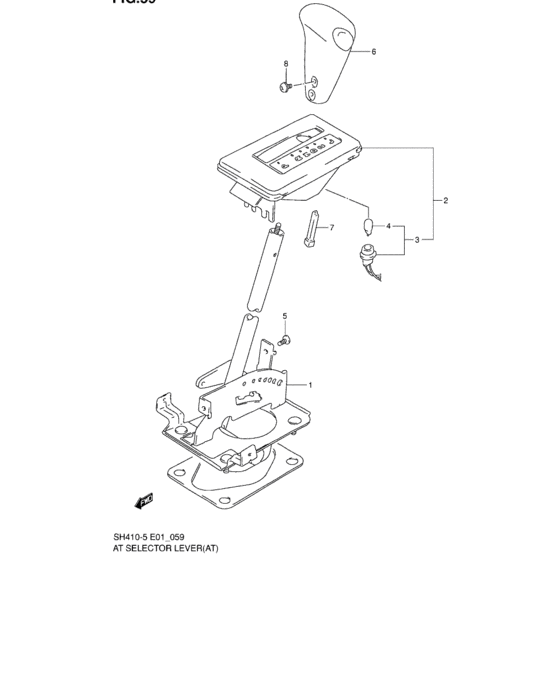

At selector lever (AT)
15
| # | OEM | Part name |
|---|
| 1 |
28110-70F20-000 |
Lever assy, select |
| 1 |
28110-70F00-000 |
LEVER ASSY,SELECT |
| 2 |
28150-70F20-000 |
INDICATOR ASSY,SELECT |
| 2 |
28150-70F00-000 |
INDICATOR ASSY,SELECT |
| 3 |
28159-62E00-000 |
LAMP ASSY,ILLUM |
| 4 |
09471-12077-000 |
BULB(12V1.7W,T10,WB121) |
| 5 |
02142-05103-000 |
Screw 5x10 |
| 5 |
02142-0510B-000 |
SCREW - Bolt |
| 6 |
28160-62B20-5PK |
Knob assy - Black |
| 6 |
28160-62B20-000 |
KNOB ASSY,SEL LEVER |
| 6 |
28160-62B10-5PK |
ノブアッシ,セレクタレバー(ブラック) |
| 6 |
28160-62B10-000 |
KNOB ASSY,SEL LEVER |
| 6 |
28160-62B11-000 |
KNOB ASSY,SEL LEVER |
| 7 |
28164-62B10-000 |
GUIDE,RELEASE ROD |
| 8 |
09125-05117-000 |
SCREW(5X6) - Screw (5x6) |
| OEM |
Part name |
Category |
| 02142-05103-000 |
Screw 5x10 |
At selector lever (AT) |
| 02142-0510B-000 |
SCREW - Bolt |
At selector lever (AT) |
| 09125-05117-000 |
SCREW(5X6) - Screw (5x6) |
At selector lever (AT) |
| 09471-12077-000 |
BULB(12V1.7W,T10,WB121) |
At selector lever (AT) |
| 28110-70F00-000 |
LEVER ASSY,SELECT |
At selector lever (AT) |
| 28110-70F20-000 |
Lever assy, select |
At selector lever (AT) |
| 28150-70F00-000 |
INDICATOR ASSY,SELECT |
At selector lever (AT) |
| 28150-70F20-000 |
INDICATOR ASSY,SELECT |
At selector lever (AT) |
| 28159-62E00-000 |
LAMP ASSY,ILLUM |
At selector lever (AT) |
| 28160-62B10-000 |
KNOB ASSY,SEL LEVER |
At selector lever (AT) |
| 28160-62B10-5PK |
ノブアッシ,セレクタレバー(ブラック) |
At selector lever (AT) |
| 28160-62B11-000 |
KNOB ASSY,SEL LEVER |
At selector lever (AT) |
| 28160-62B20-000 |
KNOB ASSY,SEL LEVER |
At selector lever (AT) |
| 28160-62B20-5PK |
Knob assy - Black |
At selector lever (AT) |
| 28164-62B10-000 |
GUIDE,RELEASE ROD |
At selector lever (AT) |
