Search › Model › SH410
SH410

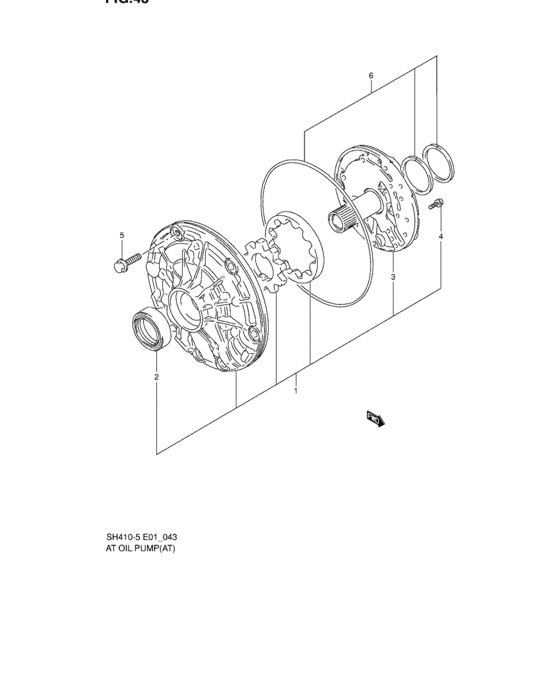

At oil pump (AT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-82301-000 | Pump assy,oil |
| 1 | 22800-82302-000 | PUMP ASSY,OIL |
| 2 | 22881-82300-000 | SEAL,OIL PUMP BODY OIL |
| 3 | 22820-82301-000 | COVER,OIL PUMP |
| 3 | 22800-82820-000 | New Genuine Part |
| 4 | 01570-06163-000 | Bolt |
| 4 | 01570-0616B-000 | Bolt |
| 4 | 01570-0616A-000 | Bolt |
| 5 | 09103-08128-000 | BOLT(8X28) |
| 6 | 22860-62BT0-000 | SEAL RING SET,OIL PUMP |
| OEM | Part name | Category |
|---|---|---|
| 01570-06163-000 | Bolt | At oil pump (AT) |
| 01570-0616A-000 | Bolt | At oil pump (AT) |
| 01570-0616B-000 | Bolt | At oil pump (AT) |
| 09103-08128-000 | BOLT(8X28) | At oil pump (AT) |
| 22800-82301-000 | Pump assy,oil | At oil pump (AT) |
| 22800-82302-000 | PUMP ASSY,OIL | At oil pump (AT) |
| 22800-82820-000 | New Genuine Part | At oil pump (AT) |
| 22820-82301-000 | COVER,OIL PUMP | At oil pump (AT) |
| 22860-62BT0-000 | SEAL RING SET,OIL PUMP | At oil pump (AT) |
| 22881-82300-000 | SEAL,OIL PUMP BODY OIL | At oil pump (AT) |
