SH410

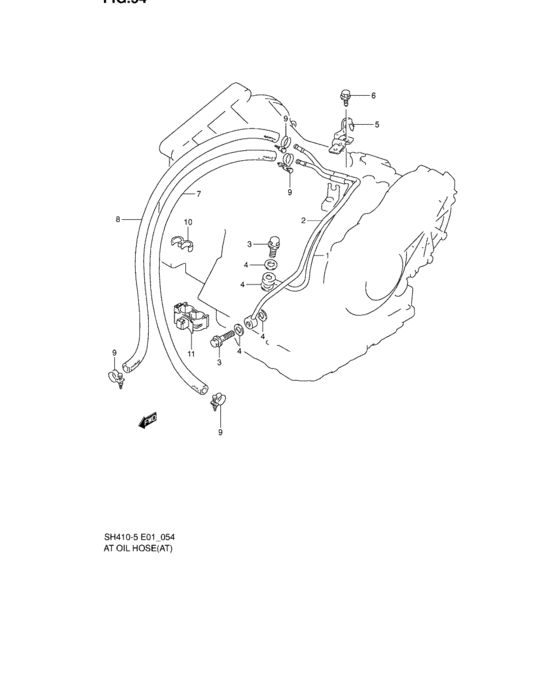

At oil hose (AT) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 24893-82334-000 | PIPE,OIL OUTLET |
| 2 | 24894-82334-000 | PIPE,OIL INLET |
| 3 | 09360-10032-000 | Bolt, union (10x24) - Union bolt |
| 3 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 4 | 09168-10028-000 | GASKET(10X15X1) |
| 5 | 24896-82301-000 | PLATE,OIL PIPE |
| 6 | 02162-06123-000 | Bolt (6x12) |
| 6 | 02162-0612B-000 | SCREW - Bolt |
| 6 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 7 | 24891-56X51-000 | HOSE SET |
| 9 | 09400-15312-000 | Сlamp |
| 9 | 09400-15311-000 | CLAMP |
| 10 | 09408-00043-000 | CLAMP - Holder, fuse case |
| 11 | 09403-14309-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | At oil hose (AT) |
| 02162-0612A-000 | SCREW - Bolt, bracket | At oil hose (AT) |
| 02162-0612B-000 | SCREW - Bolt | At oil hose (AT) |
| 09168-10028-000 | GASKET(10X15X1) | At oil hose (AT) |
| 09360-10032-000 | Bolt, union (10x24) - Union bolt | At oil hose (AT) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | At oil hose (AT) |
| 09400-15311-000 | CLAMP | At oil hose (AT) |
| 09400-15312-000 | Сlamp | At oil hose (AT) |
| 09403-14309-000 | CLAMP | At oil hose (AT) |
| 09408-00043-000 | CLAMP - Holder, fuse case | At oil hose (AT) |
| 24891-56X51-000 | HOSE SET | At oil hose (AT) |
| 24893-82334-000 | PIPE,OIL OUTLET | At oil hose (AT) |
| 24894-82334-000 | PIPE,OIL INLET | At oil hose (AT) |
| 24896-82301-000 | PLATE,OIL PIPE | At oil hose (AT) |
