SH410

Suzuki ALTO-A-STAR-CELERIO · 2,625 parts · 156 categories

2,625 items

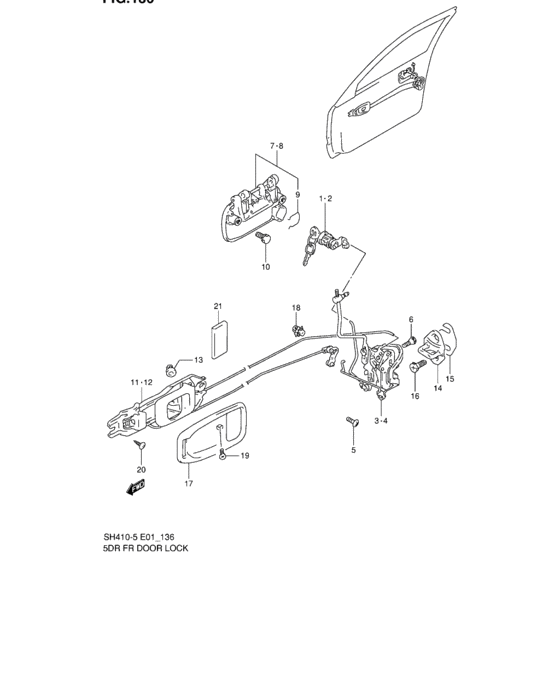

5dr fr dr lock (5DR FR DR LOCK) 26

#	OEM	Part name
1	82201-M7187-000	Cylinder, front door lock rh
2	82201-M7188-000	Cylinder, front door lock lh
3	82201-M70F1-000	Latch assy, door rh
3	82201-70F70-000	Latch assy,front door,r
3	82201-53E30-000	LATCH ASSY,FR DR,R
4	82202-M70F1-000	Latch assy, door lh
4	82202-70F70-000	LATCH ASSY,FR DR,L
4	82202-53E30-000	LATCH ASSY,FR DR,L
5	02142-06103-000	Screw
5	02142-0610B-000	SCREW - Stopper, cl rlse cam shaft
5	02142-0610A-000	SCREW
6	09137-06025-000	SCREW(6X16)
9	82815-60B00-000	CLIP
10	09112-06003-000	Bolt - 6x16
10	01570-0616B-000	Bolt
13	09148-06007-000	NUT
14	82610-M70F0-000	Striker, door latch
14	82610-60D00-000	STRIKER,DOOR LATCH
15	78199-78000-000	SPACER,DOOR LOCK STRIKER
16	09137-08011-000	SCREW(8X18)
18	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
19	03221-04123-000	スクリュ
19	03221-0412A-000	SCREW
20	03241-06123-000	Screw
20	03241-0612A-000	SCREW
21	77591-75000-000	PAD

OEM	Part name	Category
01570-0616B-000	Bolt	5dr fr dr lock (5DR FR DR LOCK)
02142-06103-000	Screw	5dr fr dr lock (5DR FR DR LOCK)
02142-0610A-000	SCREW	5dr fr dr lock (5DR FR DR LOCK)
02142-0610B-000	SCREW - Stopper, cl rlse cam shaft	5dr fr dr lock (5DR FR DR LOCK)
03221-04123-000	スクリュ	5dr fr dr lock (5DR FR DR LOCK)
03221-0412A-000	SCREW	5dr fr dr lock (5DR FR DR LOCK)
03241-06123-000	Screw	5dr fr dr lock (5DR FR DR LOCK)
03241-0612A-000	SCREW	5dr fr dr lock (5DR FR DR LOCK)
09112-06003-000	Bolt - 6x16	5dr fr dr lock (5DR FR DR LOCK)
09137-06025-000	SCREW(6X16)	5dr fr dr lock (5DR FR DR LOCK)
09137-08011-000	SCREW(8X18)	5dr fr dr lock (5DR FR DR LOCK)
09148-06007-000	NUT	5dr fr dr lock (5DR FR DR LOCK)
77591-75000-000	PAD	5dr fr dr lock (5DR FR DR LOCK)
78199-78000-000	SPACER,DOOR LOCK STRIKER	5dr fr dr lock (5DR FR DR LOCK)
82201-53E30-000	LATCH ASSY,FR DR,R	5dr fr dr lock (5DR FR DR LOCK)
82201-70F70-000	Latch assy,front door,r	5dr fr dr lock (5DR FR DR LOCK)
82201-M70F1-000	Latch assy, door rh	5dr fr dr lock (5DR FR DR LOCK)
82201-M7187-000	Cylinder, front door lock rh	5dr fr dr lock (5DR FR DR LOCK)
82201-M7188-000	Cylinder, front door lock lh	5dr fr dr lock (5DR FR DR LOCK)
82202-53E30-000	LATCH ASSY,FR DR,L	5dr fr dr lock (5DR FR DR LOCK)
82202-70F70-000	LATCH ASSY,FR DR,L	5dr fr dr lock (5DR FR DR LOCK)
82202-M70F1-000	Latch assy, door lh	5dr fr dr lock (5DR FR DR LOCK)
82610-60D00-000	STRIKER,DOOR LATCH	5dr fr dr lock (5DR FR DR LOCK)
82610-M70F0-000	Striker, door latch	5dr fr dr lock (5DR FR DR LOCK)
82815-60B00-000	CLIP	5dr fr dr lock (5DR FR DR LOCK)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	5dr fr dr lock (5DR FR DR LOCK)
