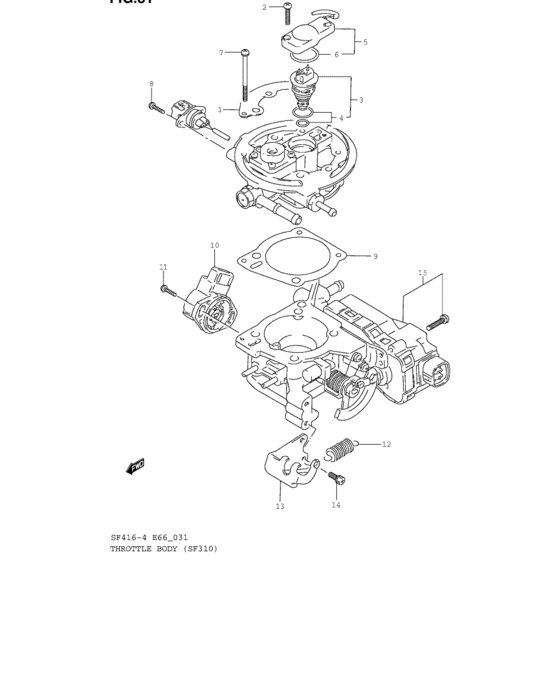

Throttle body (SF310)
21
| # | OEM | Part name |
|---|
| 0 |
13400-50G11-000 |
BODY ASSY,THROTTLE |
| 1 |
13453-50G00-000 |
COVER SUB ASSY |
| 2 |
13455-60B01-000 |
SCREW,COVER |
| 3 |
15710-60B50-000 |
INJECTOR ASSY,FUEL |
| 4 |
15713-60BT0-000 |
O-RING SET,INJECTOR |
| 5 |
13452-60B50-000 |
WIRE SUB ASSY,LEAD |
| 6 |
15715-60B50-000 |
O-RING |
| 7 |
02112-35453-000 |
SCREW |
| 8 |
02112-34103-000 |
Screw |
| 8 |
02112-3410A-000 |
SCREW |
| 9 |
13431-50G00-000 |
GASKET,BODY |
| 10 |
13420-50G00-000 |
SENSOR,THROTTLE |
| 11 |
02112-74103-000 |
Screw |
| 11 |
02112-7410B-000 |
SCREW |
| 12 |
13436-82400-000 |
SPRING,THROTTLE |
| 13 |
13446-50G00-000 |
BRACKET |
| 14 |
01570-06123-000 |
Bolt |
| 14 |
01570-0612B-000 |
Bolt - Bolt, upper |
| 14 |
01570-0612A-000 |
Bolt |
| 15 |
13430-50G00-000 |
MOTOR SET,ISC |
| 16 |
13408-50G00-000 |
GASKET SET,THROTTLE BODY |
| OEM |
Part name |
Category |
| 01570-06123-000 |
Bolt |
Throttle body (SF310) |
| 01570-0612A-000 |
Bolt |
Throttle body (SF310) |
| 01570-0612B-000 |
Bolt - Bolt, upper |
Throttle body (SF310) |
| 02112-34103-000 |
Screw |
Throttle body (SF310) |
| 02112-3410A-000 |
SCREW |
Throttle body (SF310) |
| 02112-35453-000 |
SCREW |
Throttle body (SF310) |
| 02112-74103-000 |
Screw |
Throttle body (SF310) |
| 02112-7410B-000 |
SCREW |
Throttle body (SF310) |
| 13400-50G11-000 |
BODY ASSY,THROTTLE |
Throttle body (SF310) |
| 13408-50G00-000 |
GASKET SET,THROTTLE BODY |
Throttle body (SF310) |
| 13420-50G00-000 |
SENSOR,THROTTLE |
Throttle body (SF310) |
| 13430-50G00-000 |
MOTOR SET,ISC |
Throttle body (SF310) |
| 13431-50G00-000 |
GASKET,BODY |
Throttle body (SF310) |
| 13436-82400-000 |
SPRING,THROTTLE |
Throttle body (SF310) |
| 13446-50G00-000 |
BRACKET |
Throttle body (SF310) |
| 13452-60B50-000 |
WIRE SUB ASSY,LEAD |
Throttle body (SF310) |
| 13453-50G00-000 |
COVER SUB ASSY |
Throttle body (SF310) |
| 13455-60B01-000 |
SCREW,COVER |
Throttle body (SF310) |
| 15710-60B50-000 |
INJECTOR ASSY,FUEL |
Throttle body (SF310) |
| 15713-60BT0-000 |
O-RING SET,INJECTOR |
Throttle body (SF310) |
| 15715-60B50-000 |
O-RING |
Throttle body (SF310) |
