Search › Model › SF416
SF416

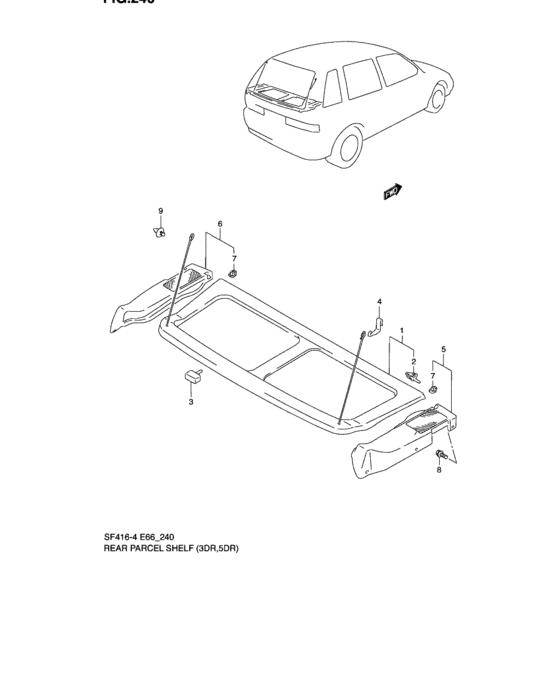

Rear parcel shelf (3DR,5DR) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 87410-80E10-T01 | Shelf, main - Gray |
| 2 | 87412-80E00-000 | Rod |
| 3 | 87417-60E00-000 | PAD,REAR PARCEL MAIN |
| 3 | 87417-61G00-000 | PAD |
| 4 | 87419-60B00-000 | HOOK,RR PARCEL STRING |
| 5 | 87430-65B00-T01 | Shelf, rh - Gray |
| 6 | 87450-65B00-T01 | Shelf, lh - Gray |
| 7 | 87435-82000-000 | HOLDER,RR PARCEL SHELF |
| 8 | 09116-06093-000 | BOLT(6X25) |
| 9 | 09409-07308-T01 | CLIP(GRAY) |
| OEM | Part name | Category |
|---|---|---|
| 09116-06093-000 | BOLT(6X25) | Rear parcel shelf (3DR,5DR) |
| 09409-07308-T01 | CLIP(GRAY) | Rear parcel shelf (3DR,5DR) |
| 87410-80E10-T01 | Shelf, main - Gray | Rear parcel shelf (3DR,5DR) |
| 87412-80E00-000 | Rod | Rear parcel shelf (3DR,5DR) |
| 87417-60E00-000 | PAD,REAR PARCEL MAIN | Rear parcel shelf (3DR,5DR) |
| 87417-61G00-000 | PAD | Rear parcel shelf (3DR,5DR) |
| 87419-60B00-000 | HOOK,RR PARCEL STRING | Rear parcel shelf (3DR,5DR) |
| 87430-65B00-T01 | Shelf, rh - Gray | Rear parcel shelf (3DR,5DR) |
| 87435-82000-000 | HOLDER,RR PARCEL SHELF | Rear parcel shelf (3DR,5DR) |
| 87450-65B00-T01 | Shelf, lh - Gray | Rear parcel shelf (3DR,5DR) |
