SF416

Suzuki KEI-SWIFT · 4,348 parts · 271 categories
SF416 ×

← Back to categories

4,348 items

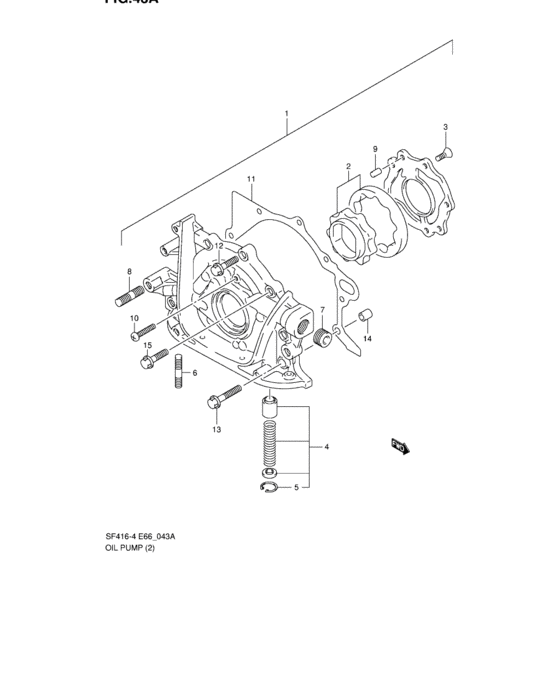

Oil pump (SF310:W/CATALYZER,SF413:4V) 29
#OEMPart name
1 16100-61812-000 Pump set, oil
1 16100-61815-000 PUMP SET,OIL
1 16100-61821-000 Pump assy, oil
1 16100-61825-000 PUMP SET,OIL
2 16130-60A00-000 ROTOR SET,OIL PUMP
3 09126-06007-000 SCREW(6X14) - Bolt
4 16150-60A10-000 Valve set, oil pump relief
4 16150-60A20-000 VALVE SET,OIL PUMP RELIEF
5 08331-41156-000 Circlip
5 08331-4115A-000 CIRCLIP
6 09246-08002-000 PLUG
7 01411-06123-000 Bolt, stud - Stud bolt
7 01411-0612A-000 BOLT,STUD
8 01411-08203-000 Stud 8x20 - Stud bolt
8 01411-0820B-000 BOLT,STUD
9 04221-06129-000 PIN
10 02112-06253-000 Screw
10 02112-0625B-000 SCREW
10 02112-0625A-000 SCREW
11 16119-60A05-000 GASKET,OIL PUMP
12 01550-06253-000 Bolt (6x25)
12 01550-0625B-000 Bolt - Bolt, head cover
12 01550-0625A-000 Bolt
13 01550-06353-000 Bolt
13 01550-0635B-000 Bolt
13 01550-0635A-000 Bolt
14 04211-09109-000 PIN - Knock pin
15 09103-06084-000 Bolt - Bolt, shift cam (6x25)
15 09103-06282-000 BOLT(6X25) - Bolt, shift cam (6x25)
