SF416

Suzuki KEI-SWIFT · 4,348 parts · 271 categories

4,348 items

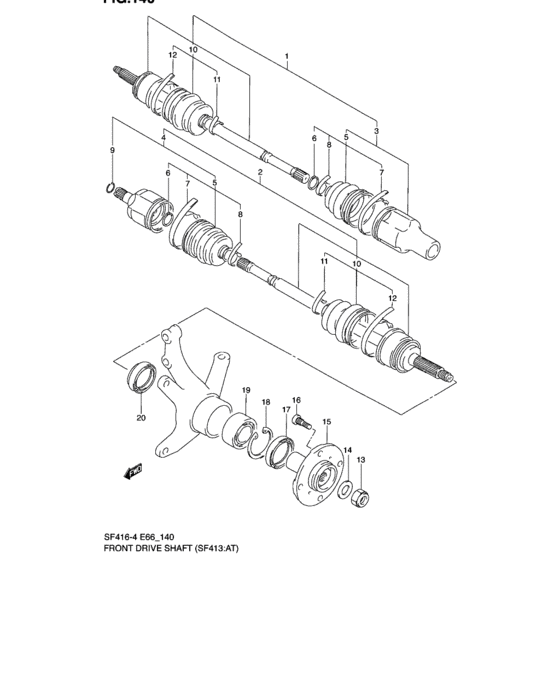

Front drive shaft (SF413:AT) 23

#	OEM	Part name
1	44101-63BC0-000	SHAFT ASSY,FRONT DRIVE,R
2	44102-63BC0-000	SHAFT ASSY,FRONT DRIVE,L
3	44114-63B20-000	JOINT ASSY,DIFF SIDE,R
3	44114-63B21-000	JOINT ASSY,DIFF SIDE,R
4	44114-60B21-000	JOINT ASSY,DIFF SIDE
4	44114-60B22-000	JOINT ASSY,DIFF SIDE
5	44119-86061-000	BOOT SET,DIFF SIDE
5	44119-86062-000	BOOT SET,DIFF SIDE
6	44111-82012-000	RING,SNAP
7	44121-60B00-000	BAND,BOOT
8	44124-86011-000	BAND,BOOT
9	09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)
10	44118-86061-000	BOOT SET,WHEEL SIDE
10	44118-86062-000	BOOT SET,WHEEL SIDE
12	44122-86010-000	BAND,BOOT - Clamp, differential side outer boot
13	09159-18008-000	NUT
14	09160-18017-000	WASHER(18X35X4)
15	43421-80E00-000	Hub, front wheel
16	09119-12012-000	BOLT(12X38)
17	09283-53001-000	SEAL,OIL(53X68.2X7)
18	09381-68001-000	CIRCLIP
19	09267-36003-000	Bearing - 40x72x36
20	43430-60810-000	SEAL SET,WHEEL BEARING OIL

OEM	Part name	Category
09119-12012-000	BOLT(12X38)	Front drive shaft (SF413:AT)
09159-18008-000	NUT	Front drive shaft (SF413:AT)
09160-18017-000	WASHER(18X35X4)	Front drive shaft (SF413:AT)
09267-36003-000	Bearing - 40x72x36	Front drive shaft (SF413:AT)
09283-53001-000	SEAL,OIL(53X68.2X7)	Front drive shaft (SF413:AT)
09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)	Front drive shaft (SF413:AT)
09381-68001-000	CIRCLIP	Front drive shaft (SF413:AT)
43421-80E00-000	Hub, front wheel	Front drive shaft (SF413:AT)
43430-60810-000	SEAL SET,WHEEL BEARING OIL	Front drive shaft (SF413:AT)
44101-63BC0-000	SHAFT ASSY,FRONT DRIVE,R	Front drive shaft (SF413:AT)
44102-63BC0-000	SHAFT ASSY,FRONT DRIVE,L	Front drive shaft (SF413:AT)
44111-82012-000	RING,SNAP	Front drive shaft (SF413:AT)
44114-60B21-000	JOINT ASSY,DIFF SIDE	Front drive shaft (SF413:AT)
44114-60B22-000	JOINT ASSY,DIFF SIDE	Front drive shaft (SF413:AT)
44114-63B20-000	JOINT ASSY,DIFF SIDE,R	Front drive shaft (SF413:AT)
44114-63B21-000	JOINT ASSY,DIFF SIDE,R	Front drive shaft (SF413:AT)
44118-86061-000	BOOT SET,WHEEL SIDE	Front drive shaft (SF413:AT)
44118-86062-000	BOOT SET,WHEEL SIDE	Front drive shaft (SF413:AT)
44119-86061-000	BOOT SET,DIFF SIDE	Front drive shaft (SF413:AT)
44119-86062-000	BOOT SET,DIFF SIDE	Front drive shaft (SF413:AT)
44121-60B00-000	BAND,BOOT	Front drive shaft (SF413:AT)
44122-86010-000	BAND,BOOT - Clamp, differential side outer boot	Front drive shaft (SF413:AT)
44124-86011-000	BAND,BOOT	Front drive shaft (SF413:AT)
