SF416

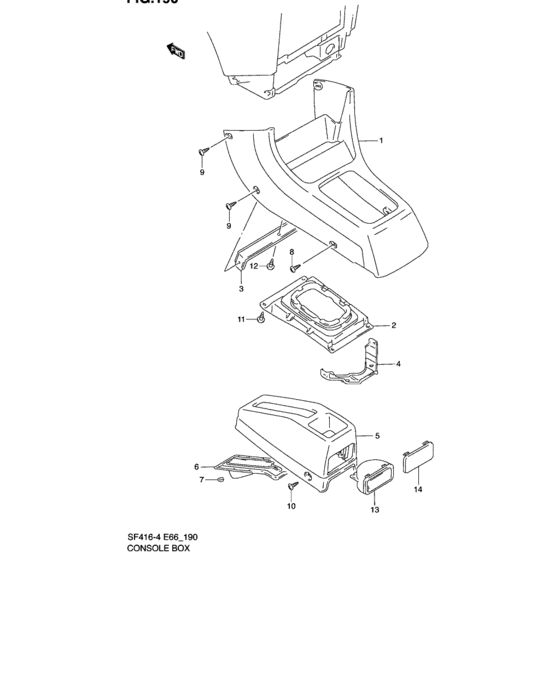

Console box (CONSOLE BOX) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 75811-60E10-T01 | Box, console - Gray |
| 2 | 75814-60E00-5PK | BRACKET,CONT LVR BOOT |
| 3 | 75815-60E00-000 | BRACKET,CONSOLE BOX FR |
| 4 | 75816-60E00-000 | BRACKET,CONSOLE BOX CTR |
| 5 | 75871-80E00-T01 | Cover, lever - Gray |
| 5 | 75871-80E10-T01 | Cover, lever - Gray |
| 6 | 75872-60B00-T01 | Blind, cover hole - Gray |
| 7 | 09148-03003-000 | NUT |
| 8 | 03142-05123-000 | Screw - Screw, belt cooling duct |
| 8 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 10 | 03142-05163-000 | Screw |
| 10 | 03141-0516A-000 | SCREW |
| 12 | 03541-05123-000 | Screw |
| 12 | 03541-0512B-000 | SCREW |
| 13 | 89850-60B00-T01 | ASH TRAY |
| 13 | 89850-50J00-T01 | ASHTRAY,RR |
| 13 | 89850-50J00-P4Z | ASHTRAY,RR |
| 14 | 89861-60B00-T01 | CAP,RR ASHTRAY HOLE |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Console box (CONSOLE BOX) |
| 03141-0516A-000 | SCREW | Console box (CONSOLE BOX) |
| 03142-05123-000 | Screw - Screw, belt cooling duct | Console box (CONSOLE BOX) |
| 03142-05163-000 | Screw | Console box (CONSOLE BOX) |
| 03541-05123-000 | Screw | Console box (CONSOLE BOX) |
| 03541-0512B-000 | SCREW | Console box (CONSOLE BOX) |
| 09148-03003-000 | NUT | Console box (CONSOLE BOX) |
| 75811-60E10-T01 | Box, console - Gray | Console box (CONSOLE BOX) |
| 75814-60E00-5PK | BRACKET,CONT LVR BOOT | Console box (CONSOLE BOX) |
| 75815-60E00-000 | BRACKET,CONSOLE BOX FR | Console box (CONSOLE BOX) |
| 75816-60E00-000 | BRACKET,CONSOLE BOX CTR | Console box (CONSOLE BOX) |
| 75871-80E00-T01 | Cover, lever - Gray | Console box (CONSOLE BOX) |
| 75871-80E10-T01 | Cover, lever - Gray | Console box (CONSOLE BOX) |
| 75872-60B00-T01 | Blind, cover hole - Gray | Console box (CONSOLE BOX) |
| 89850-50J00-P4Z | ASHTRAY,RR | Console box (CONSOLE BOX) |
| 89850-50J00-T01 | ASHTRAY,RR | Console box (CONSOLE BOX) |
| 89850-60B00-T01 | ASH TRAY | Console box (CONSOLE BOX) |
| 89861-60B00-T01 | CAP,RR ASHTRAY HOLE | Console box (CONSOLE BOX) |
