Search › Model › SF416
SF416

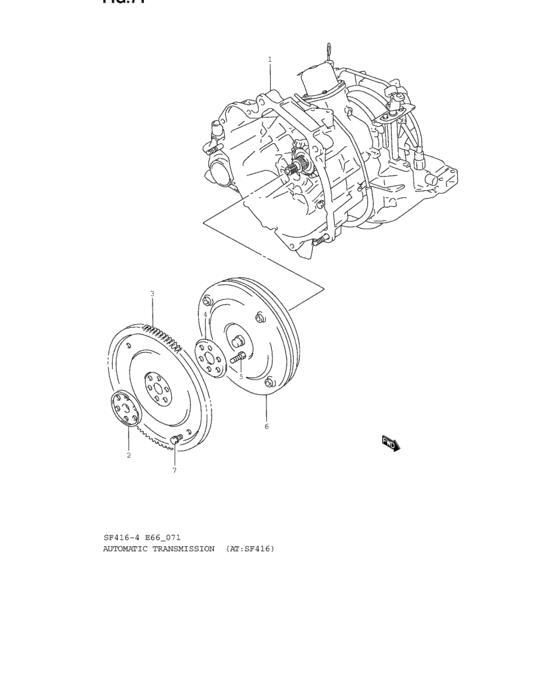

Automatic transmission (AT:SF416) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 20002-72C01-000 | T/M ASSY,AUTOMATIC |
| 2 | 22611-72C00-000 | フランジ,ドライブプレート |
| 3 | 22620-72C00-000 | PLATE,TC DRIVE |
| 4 | 22631-72C00-000 | PLATE,TC DRIVE REAR |
| 5 | 09100-10275-000 | BOLT(10X18.5) |
| 6 | 22710-72C00-000 | コンバータ,トルク |
| 7 | 09117-10049-000 | BOLT(10X12) |
| 8 | 24700-72CT0-000 | OVERHAUL SET,AT |
| OEM | Part name | Category |
|---|---|---|
| 09100-10275-000 | BOLT(10X18.5) | Automatic transmission (AT:SF416) |
| 09117-10049-000 | BOLT(10X12) | Automatic transmission (AT:SF416) |
| 20002-72C01-000 | T/M ASSY,AUTOMATIC | Automatic transmission (AT:SF416) |
| 22611-72C00-000 | フランジ,ドライブプレート | Automatic transmission (AT:SF416) |
| 22620-72C00-000 | PLATE,TC DRIVE | Automatic transmission (AT:SF416) |
| 22631-72C00-000 | PLATE,TC DRIVE REAR | Automatic transmission (AT:SF416) |
| 22710-72C00-000 | コンバータ,トルク | Automatic transmission (AT:SF416) |
| 24700-72CT0-000 | OVERHAUL SET,AT | Automatic transmission (AT:SF416) |
