| 01570-06163-000 |
Bolt |

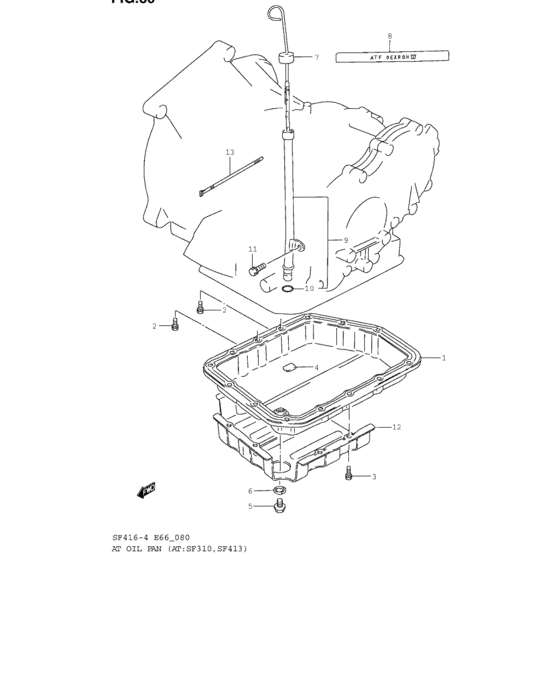

At oil pan (AT:SF310,SF413) |
| 01570-0616A-000 |
Bolt |
At oil pan (AT:SF310,SF413) |
| 01570-0616B-000 |
Bolt |
At oil pan (AT:SF310,SF413) |
| 02162-06163-000 |
Screw - Bolt |
At oil pan (AT:SF310,SF413) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
At oil pan (AT:SF310,SF413) |
| 09137-06015-000 |
BOLT(6X16) |
At oil pan (AT:SF310,SF413) |
| 09168-12009-000 |
GASKET(12X16.7X2) |
At oil pan (AT:SF310,SF413) |
| 09247-10007-000 |
PLUG |
At oil pan (AT:SF310,SF413) |
| 24761-82300-000 |
PAN,T/M OIL |
At oil pan (AT:SF310,SF413) |
| 24762-82300-000 |
COVER,OIL PAN,UNDER |
At oil pan (AT:SF310,SF413) |
| 24770-52G00-000 |
TUBE ASSY,T/M OIL FILLER |
At oil pan (AT:SF310,SF413) |
| 24770-62B20-000 |
TUBE ASSY,T/M OIL FILLER |
At oil pan (AT:SF310,SF413) |
| 24785-82300-000 |
O-RING,OIL FILLER TUBE |
At oil pan (AT:SF310,SF413) |
| 24830-52G01-000 |
GAUGE,OIL |
At oil pan (AT:SF310,SF413) |
| 24830-52G21-000 |
GAUGE,OIL |
At oil pan (AT:SF310,SF413) |
| 24839-61A31-000 |
EMBLEM,ATF |
At oil pan (AT:SF310,SF413) |
| 24861-78230-000 |
MAGNET,OIL CLEANER |
At oil pan (AT:SF310,SF413) |
| 24897-75F10-000 |
CLAMP,SOLENOID WIRE HARN |
At oil pan (AT:SF310,SF413) |
