Search › Model › SF413

SF413

Suzuki KEI-SWIFT · 4,348 parts · 271 categories

4,348 items

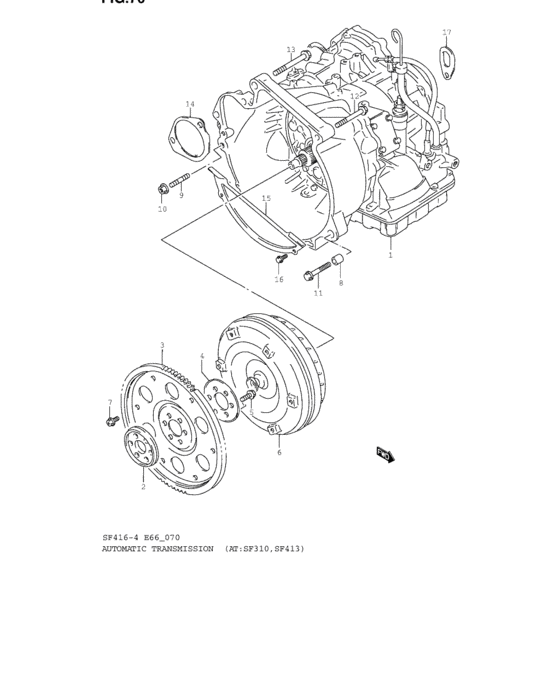

Automatic transmission (AT:SF310,SF413) 27

#	OEM	Part name
1	20002-62B69-000	T/m assy,automatic
1	20002-62E15-000	T/M ASSY,AUTOMATIC
2	22611-82301-000	FLANGE,DRIVE PLATE
3	22620-82302-000	PLATE,TC DRIVE
4	22631-82300-000	PLATE,TC DRIVE REAR
5	09103-10106-000	BOLT(10X20)
6	22710-82340-000	CONVERTER,TORQUE
6	22710-62B10-000	CONVERTER,TORQUE
7	09103-08335-000	Bolt - Bolt, oil gallery in
7	09103-08421-000	BOLT(8X9.5)
8	04211-13189-000	PIN
9	01421-10403-000	New Genuine Part
9	01421-1040A-000	BOLT,STUD
10	08316-10103-000	Nut
10	08316-1010B-000	NUT
11	01550-10503-000	Bolt - Bolt, rh
11	01550-1050B-000	Bolt
12	01550-10603-000	Bolt
12	01550-1060B-000	Bolt
12	01550-1060A-000	Bolt
13	01550-10703-000	ボルト
13	01550-1070A-000	Bolt
14	11311-60B00-000	PLATE,STARTING MOTOR
15	11320-83E01-000	PLATE,CLUTCH HSG LOWER
16	02162-06103-000	Bolt - Bolt, bracket
16	02162-0610A-000	SCREW
17	11851-62B00-000	HOOK

OEM	Part name	Category
01421-10403-000	New Genuine Part	Automatic transmission (AT:SF310,SF413)
01421-1040A-000	BOLT,STUD	Automatic transmission (AT:SF310,SF413)
01550-10503-000	Bolt - Bolt, rh	Automatic transmission (AT:SF310,SF413)
01550-1050B-000	Bolt	Automatic transmission (AT:SF310,SF413)
01550-10603-000	Bolt	Automatic transmission (AT:SF310,SF413)
01550-1060A-000	Bolt	Automatic transmission (AT:SF310,SF413)
01550-1060B-000	Bolt	Automatic transmission (AT:SF310,SF413)
01550-10703-000	ボルト	Automatic transmission (AT:SF310,SF413)
01550-1070A-000	Bolt	Automatic transmission (AT:SF310,SF413)
02162-06103-000	Bolt - Bolt, bracket	Automatic transmission (AT:SF310,SF413)
02162-0610A-000	SCREW	Automatic transmission (AT:SF310,SF413)
04211-13189-000	PIN	Automatic transmission (AT:SF310,SF413)
08316-10103-000	Nut	Automatic transmission (AT:SF310,SF413)
08316-1010B-000	NUT	Automatic transmission (AT:SF310,SF413)
09103-08335-000	Bolt - Bolt, oil gallery in	Automatic transmission (AT:SF310,SF413)
09103-08421-000	BOLT(8X9.5)	Automatic transmission (AT:SF310,SF413)
09103-10106-000	BOLT(10X20)	Automatic transmission (AT:SF310,SF413)
11311-60B00-000	PLATE,STARTING MOTOR	Automatic transmission (AT:SF310,SF413)
11320-83E01-000	PLATE,CLUTCH HSG LOWER	Automatic transmission (AT:SF310,SF413)
11851-62B00-000	HOOK	Automatic transmission (AT:SF310,SF413)
20002-62B69-000	T/m assy,automatic	Automatic transmission (AT:SF310,SF413)
20002-62E15-000	T/M ASSY,AUTOMATIC	Automatic transmission (AT:SF310,SF413)
22611-82301-000	FLANGE,DRIVE PLATE	Automatic transmission (AT:SF310,SF413)
22620-82302-000	PLATE,TC DRIVE	Automatic transmission (AT:SF310,SF413)
22631-82300-000	PLATE,TC DRIVE REAR	Automatic transmission (AT:SF310,SF413)
22710-62B10-000	CONVERTER,TORQUE	Automatic transmission (AT:SF310,SF413)
22710-82340-000	CONVERTER,TORQUE	Automatic transmission (AT:SF310,SF413)
