| 01550-08253-000 |
Bolt, rear |

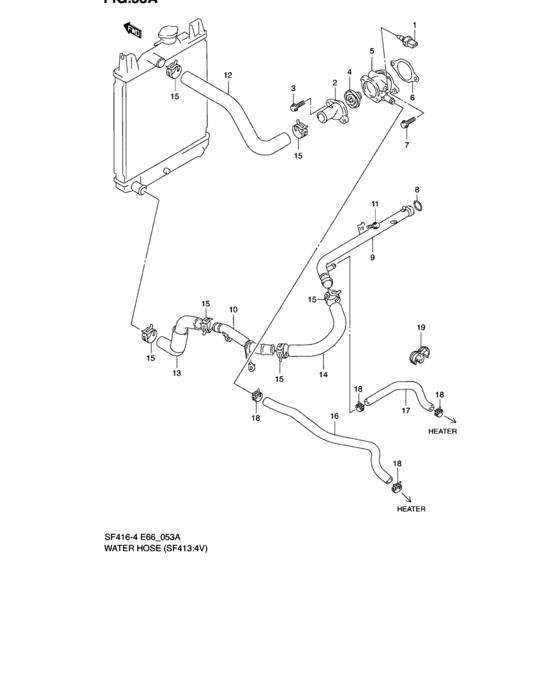

Water hose (SF413:4V) |
| 01550-0825A-000 |
Bolt |
Water hose (SF413:4V) |
| 01550-0825B-000 |
Bolt |
Water hose (SF413:4V) |
| 02162-06103-000 |
Bolt - Bolt, bracket |
Water hose (SF413:4V) |
| 02162-0610A-000 |
SCREW |
Water hose (SF413:4V) |
| 09280-28008-000 |
O RING(D:3.5,ID:27.7) |
Water hose (SF413:4V) |
| 09401-18403-000 |
CLIP - Clip, heater hose |
Water hose (SF413:4V) |
| 09401-30405-000 |
CLIP |
Water hose (SF413:4V) |
| 09408-00117-000 |
CLAMP |
Water hose (SF413:4V) |
| 13650-50F10-000 |
Sensor,water Temp |
Water hose (SF413:4V) |
| 17561-60B00-000 |
CAP,WATER THERMOSTAT |
Water hose (SF413:4V) |
| 17670-50G10-000 |
THERMOSTAT,WATER 88 DEG |
Water hose (SF413:4V) |
| 17670-50G11-000 |
THERMOSTAT |
Water hose (SF413:4V) |
| 17690-60G20-000 |
CASE,THERMOSTAT |
Water hose (SF413:4V) |
| 17699-60B02-000 |
GASKET,THERMO CASE |
Water hose (SF413:4V) |
| 17840-63B01-000 |
PIPE,WATER INTAKE NO.1 |
Water hose (SF413:4V) |
| 17840-64XV0-000 |
Pipe, water intake no.1 |
Water hose (SF413:4V) |
| 17840-64XVV-000 |
PIPE,WATER INTAKE NO.1 |
Water hose (SF413:4V) |
| 17851-60A00-000 |
HOSE,RADIATOR OUTLET NO.1 |
Water hose (SF413:4V) |
| 17852-63E00-000 |
HOSE,RADIATOR INLET |
Water hose (SF413:4V) |
| 17854-63B40-000 |
Hose, radiator outlet no.1 |
Water hose (SF413:4V) |
| 17854-63E30-000 |
Hose, radiator outlet no.1 |
Water hose (SF413:4V) |
| 17855-63B50-000 |
Hose, radiator outlet no.2 |
Water hose (SF413:4V) |
| 17860-63B01-000 |
PIPE,WATER INTAKE NO.2 |
Water hose (SF413:4V) |
| 17860-63B20-000 |
パイプ,ウォータインテーク,NO.2 |
Water hose (SF413:4V) |
| 17860-63B2V-000 |
PIPE,WATER INLET NO.2 |
Water hose (SF413:4V) |
| 17871-63E60-000 |
Hose, heater inlet |
Water hose (SF413:4V) |
| 17872-60E20-000 |
Hose, heater outlet |
Water hose (SF413:4V) |
| 17872-63E40-000 |
HOSE,HEATER OUTLET |
Water hose (SF413:4V) |
