Search › Model › SF310
SF310

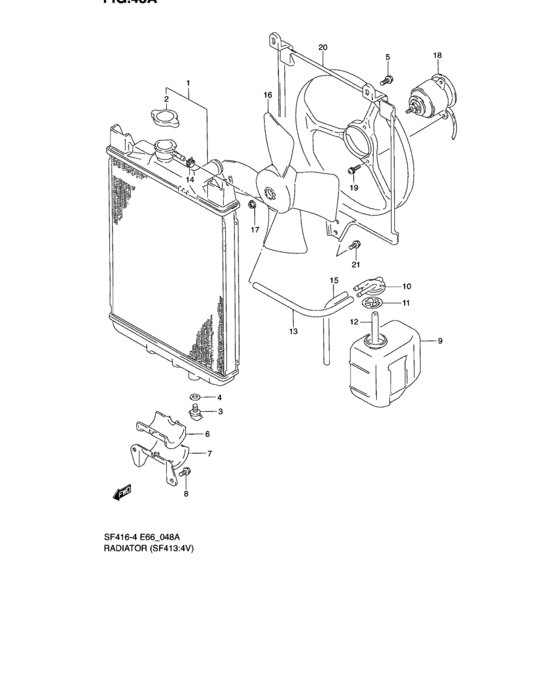

Radiator (SF413:4V) 27
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-63E20-000 | RADIATOR ASSY |
| 1 | 17700-60B32-000 | RADIATOR ASSY |
| 2 | 17920-60B21-000 | CAP,RADIATOR 0.9 |
| 3 | 17751-82000-000 | PLUG,RADIATOR DRAIN |
| 4 | 17759-63210-000 | GASKET |
| 4 | 17759-63211-000 | Gasket |
| 5 | 02162-06163-000 | Screw - Bolt |
| 5 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 6 | 17813-60E00-000 | RUBBER,RADIATOR SUPPORT |
| 7 | 17811-60E00-000 | BRACKET,RDTR SUPPORT |
| 7 | 17811-63E00-000 | BRACKET,RDTR SUPPORT |
| 9 | 17931-60B00-000 | TANK,WATER RESERVE |
| 10 | 17932-60B10-000 | CAP,WATER RESERVE TANK |
| 11 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 12 | 17937-80E00-000 | Hose, tank cap |
| 13 | 17939-80E00-370 | Hose, radiator to tank |
| 14 | 09401-11415-000 | CLIP |
| 15 | 17938-80E00-000 | Hose, tank vent pipe |
| 16 | 17111-84010-000 | FAN |
| 17 | 08316-20053-000 | Nut |
| 17 | 08316-2005A-000 | NUT |
| 18 | 17120-71C10-000 | MOTOR,COOLING FAN |
| 19 | 17129-50F10-000 | SCREW,FAN MOTOR |
| 20 | 17760-63B10-000 | SHROUD,ENGINE COOLING FAN |
| 21 | 02162-06123-000 | Bolt (6x12) |
| 21 | 02162-0612B-000 | SCREW - Bolt |
| 21 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | Radiator (SF413:4V) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Radiator (SF413:4V) |
| 02162-0612B-000 | SCREW - Bolt | Radiator (SF413:4V) |
| 02162-06163-000 | Screw - Bolt | Radiator (SF413:4V) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radiator (SF413:4V) |
| 08316-20053-000 | Nut | Radiator (SF413:4V) |
| 08316-2005A-000 | NUT | Radiator (SF413:4V) |
| 09401-11415-000 | CLIP | Radiator (SF413:4V) |
| 17111-84010-000 | FAN | Radiator (SF413:4V) |
| 17120-71C10-000 | MOTOR,COOLING FAN | Radiator (SF413:4V) |
| 17129-50F10-000 | SCREW,FAN MOTOR | Radiator (SF413:4V) |
| 17700-60B32-000 | RADIATOR ASSY | Radiator (SF413:4V) |
| 17700-63E20-000 | RADIATOR ASSY | Radiator (SF413:4V) |
| 17751-82000-000 | PLUG,RADIATOR DRAIN | Radiator (SF413:4V) |
| 17759-63210-000 | GASKET | Radiator (SF413:4V) |
| 17759-63211-000 | Gasket | Radiator (SF413:4V) |
| 17760-63B10-000 | SHROUD,ENGINE COOLING FAN | Radiator (SF413:4V) |
| 17811-60E00-000 | BRACKET,RDTR SUPPORT | Radiator (SF413:4V) |
| 17811-63E00-000 | BRACKET,RDTR SUPPORT | Radiator (SF413:4V) |
| 17813-60E00-000 | RUBBER,RADIATOR SUPPORT | Radiator (SF413:4V) |
| 17920-60B21-000 | CAP,RADIATOR 0.9 | Radiator (SF413:4V) |
| 17931-60B00-000 | TANK,WATER RESERVE | Radiator (SF413:4V) |
| 17932-60B10-000 | CAP,WATER RESERVE TANK | Radiator (SF413:4V) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | Radiator (SF413:4V) |
| 17937-80E00-000 | Hose, tank cap | Radiator (SF413:4V) |
| 17938-80E00-000 | Hose, tank vent pipe | Radiator (SF413:4V) |
| 17939-80E00-370 | Hose, radiator to tank | Radiator (SF413:4V) |
