| 02162-06123-000 |
Bolt (6x12) |

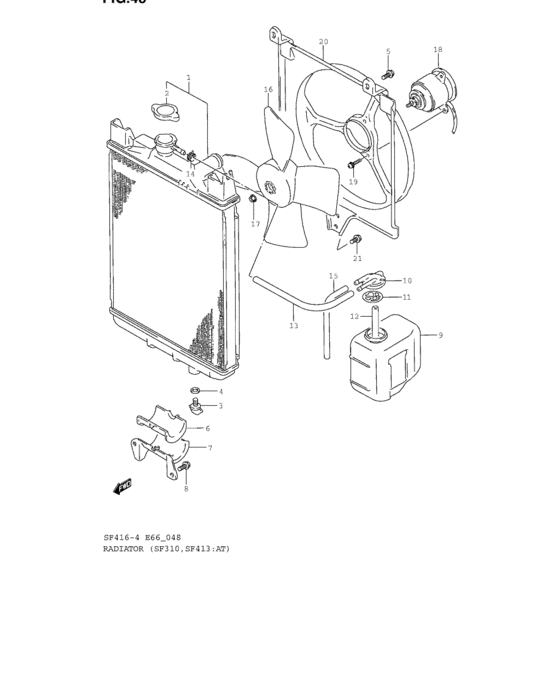

Radiator (SF310,SF413:2V:AT) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Radiator (SF310,SF413:2V:AT) |
| 02162-0612B-000 |
SCREW - Bolt |
Radiator (SF310,SF413:2V:AT) |
| 02162-06163-000 |
Screw - Bolt |
Radiator (SF310,SF413:2V:AT) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Radiator (SF310,SF413:2V:AT) |
| 08316-20053-000 |
Nut |
Radiator (SF310,SF413:2V:AT) |
| 08316-2005A-000 |
NUT |
Radiator (SF310,SF413:2V:AT) |
| 09401-11415-000 |
CLIP |
Radiator (SF310,SF413:2V:AT) |
| 17111-84010-000 |
FAN |
Radiator (SF310,SF413:2V:AT) |
| 17120-71C10-000 |
MOTOR,COOLING FAN |
Radiator (SF310,SF413:2V:AT) |
| 17129-50F10-000 |
SCREW,FAN MOTOR |
Radiator (SF310,SF413:2V:AT) |
| 17700-60B32-000 |
RADIATOR ASSY |
Radiator (SF310,SF413:2V:AT) |
| 17700-63E20-000 |
RADIATOR ASSY |
Radiator (SF310,SF413:2V:AT) |
| 17751-82000-000 |
PLUG,RADIATOR DRAIN |
Radiator (SF310,SF413:2V:AT) |
| 17759-63210-000 |
GASKET |
Radiator (SF310,SF413:2V:AT) |
| 17759-63211-000 |
Gasket |
Radiator (SF310,SF413:2V:AT) |
| 17760-63B10-000 |
SHROUD,ENGINE COOLING FAN |
Radiator (SF310,SF413:2V:AT) |
| 17811-60E00-000 |
BRACKET,RDTR SUPPORT |
Radiator (SF310,SF413:2V:AT) |
| 17811-63E00-000 |
BRACKET,RDTR SUPPORT |
Radiator (SF310,SF413:2V:AT) |
| 17813-60E00-000 |
RUBBER,RADIATOR SUPPORT |
Radiator (SF310,SF413:2V:AT) |
| 17920-60B21-000 |
CAP,RADIATOR 0.9 |
Radiator (SF310,SF413:2V:AT) |
| 17931-60B00-000 |
TANK,WATER RESERVE |
Radiator (SF310,SF413:2V:AT) |
| 17932-60B10-000 |
CAP,WATER RESERVE TANK |
Radiator (SF310,SF413:2V:AT) |
| 17933-60B00-000 |
RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
Radiator (SF310,SF413:2V:AT) |
| 17937-80E00-000 |
Hose, tank cap |
Radiator (SF310,SF413:2V:AT) |
| 17938-80E00-000 |
Hose, tank vent pipe |
Radiator (SF310,SF413:2V:AT) |
| 17939-80E00-370 |
Hose, radiator to tank |
Radiator (SF310,SF413:2V:AT) |
