SF310

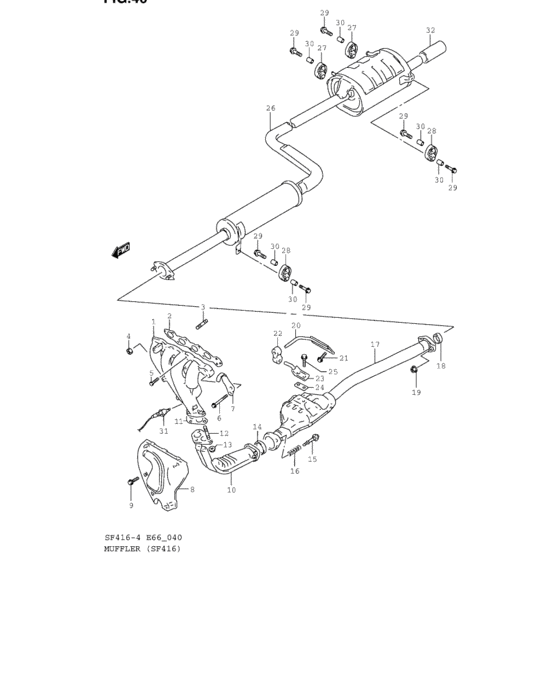

Muffler (SF416) 52
| # | OEM | Part name |
|---|---|---|
| 1 | 14111-71X50-000 | MANIFOLD,EXH |
| 2 | 14140-52G00-000 | Gasket, exhaust manifold |
| 3 | 09108-08246-000 | BOLT,STUD |
| 4 | 08316-10083-000 | Nut |
| 4 | 08316-1008B-000 | NUT |
| 5 | 01500-08253-000 | Bolt |
| 5 | 01500-0825A-000 | Bolt |
| 6 | 01550-08403-000 | Bolt |
| 6 | 01550-0840B-000 | Bolt |
| 6 | 01550-0840A-000 | Bolt |
| 7 | 11851-62B00-000 | HOOK |
| 8 | 13830-71C01-000 | Cover comp,warm air |
| 8 | 13830-71C0V-000 | COVER,WARM AIR |
| 9 | 09103-06168-000 | BOLT(6X10) |
| 10 | 14190-71C01-000 | パイプ,エキゾースト,NO.1 |
| 10 | 14190-71C0V-000 | Pipe,exh no.1 |
| 11 | 14182-64B03-000 | GASKET,EXH PIPE |
| 12 | 01411-10253-000 | New Genuine Part |
| 12 | 01411-1025A-000 | BOLT,STUD |
| 13 | 09159-10016-000 | NUT - Nut, clamp bracket |
| 14 | 14183-50G00-000 | Ring, seal |
| 14 | 14183-76A00-000 | RING,SEAL EXH PIPE |
| 15 | 09119-10041-000 | BOLT(10X65) |
| 16 | 14492-82610-000 | SPRING,EXH PIPE |
| 17 | 14250-71CV0-000 | Pipe, exhaust no.1 |
| 17 | 14250-71CVV-000 | PIPE,EXH NO.2 |
| 18 | 14182-60B00-000 | GASKET,EXH PIPE |
| 18 | 14182-60B01-000 | Gasket,exh Pipe |
| 19 | 09159-10049-000 | Nut |
| 19 | 09159-10102-000 | NUT |
| 20 | 14293-71C01-000 | BRACKET,EXH PIPE BODY SIDE |
| 21 | 01550-10163-000 | Bolt |
| 21 | 01550-1016B-000 | Bolt - Plug, oil gallery |
| 21 | 01550-1016A-000 | Bolt - Plug, oil gallery |
| 22 | 14281-71C01-000 | MOUNTING,MUF |
| 23 | 14284-71C00-000 | Brkt,exh pipe |
| 24 | 14283-71C00-000 | INSULATOR,EXH PIPE BRKT |
| 25 | 01550-06163-000 | Bolt |
| 25 | 01550-0616B-000 | Bolt |
| 25 | 01550-0616A-000 | Bolt |
| 26 | 14300-71C34-000 | マフラ,エキゾースト |
| 26 | 14300-71C3V-000 | MUFFLER |
| 27 | 14281-60G00-000 | MOUNTING MUFFLER |
| 27 | 14281-60G01-000 | MOUNTING,MUF |
| 28 | 14281-60B00-000 | MOUNTING,MUF |
| 29 | 01550-08353-000 | Bolt, rear |
| 29 | 01550-0835B-000 | Bolt |
| 29 | 01550-0835A-000 | Bolt |
| 30 | 09180-08057-000 | Spacer |
| 30 | 09180-08227-000 | SPACER(8.2X12.5X23.5) |
| 31 | 18213-64B00-000 | SENSOR,OXYGEN |
| 32 | 14630-71C60-000 | PIPE,MUFFLER TAIL |
| OEM | Part name | Category |
|---|---|---|
| 01411-10253-000 | New Genuine Part | Muffler (SF416) |
| 01411-1025A-000 | BOLT,STUD | Muffler (SF416) |
| 01500-08253-000 | Bolt | Muffler (SF416) |
| 01500-0825A-000 | Bolt | Muffler (SF416) |
| 01550-06163-000 | Bolt | Muffler (SF416) |
| 01550-0616A-000 | Bolt | Muffler (SF416) |
| 01550-0616B-000 | Bolt | Muffler (SF416) |
| 01550-08353-000 | Bolt, rear | Muffler (SF416) |
| 01550-0835A-000 | Bolt | Muffler (SF416) |
| 01550-0835B-000 | Bolt | Muffler (SF416) |
| 01550-08403-000 | Bolt | Muffler (SF416) |
| 01550-0840A-000 | Bolt | Muffler (SF416) |
| 01550-0840B-000 | Bolt | Muffler (SF416) |
| 01550-10163-000 | Bolt | Muffler (SF416) |
| 01550-1016A-000 | Bolt - Plug, oil gallery | Muffler (SF416) |
| 01550-1016B-000 | Bolt - Plug, oil gallery | Muffler (SF416) |
| 08316-10083-000 | Nut | Muffler (SF416) |
| 08316-1008B-000 | NUT | Muffler (SF416) |
| 09103-06168-000 | BOLT(6X10) | Muffler (SF416) |
| 09108-08246-000 | BOLT,STUD | Muffler (SF416) |
| 09119-10041-000 | BOLT(10X65) | Muffler (SF416) |
| 09159-10016-000 | NUT - Nut, clamp bracket | Muffler (SF416) |
| 09159-10049-000 | Nut | Muffler (SF416) |
| 09159-10102-000 | NUT | Muffler (SF416) |
| 09180-08057-000 | Spacer | Muffler (SF416) |
| 09180-08227-000 | SPACER(8.2X12.5X23.5) | Muffler (SF416) |
| 11851-62B00-000 | HOOK | Muffler (SF416) |
| 13830-71C01-000 | Cover comp,warm air | Muffler (SF416) |
| 13830-71C0V-000 | COVER,WARM AIR | Muffler (SF416) |
| 14111-71X50-000 | MANIFOLD,EXH | Muffler (SF416) |
| 14140-52G00-000 | Gasket, exhaust manifold | Muffler (SF416) |
| 14182-60B00-000 | GASKET,EXH PIPE | Muffler (SF416) |
| 14182-60B01-000 | Gasket,exh Pipe | Muffler (SF416) |
| 14182-64B03-000 | GASKET,EXH PIPE | Muffler (SF416) |
| 14183-50G00-000 | Ring, seal | Muffler (SF416) |
| 14183-76A00-000 | RING,SEAL EXH PIPE | Muffler (SF416) |
| 14190-71C01-000 | パイプ,エキゾースト,NO.1 | Muffler (SF416) |
| 14190-71C0V-000 | Pipe,exh no.1 | Muffler (SF416) |
| 14250-71CV0-000 | Pipe, exhaust no.1 | Muffler (SF416) |
| 14250-71CVV-000 | PIPE,EXH NO.2 | Muffler (SF416) |
| 14281-60B00-000 | MOUNTING,MUF | Muffler (SF416) |
| 14281-60G00-000 | MOUNTING MUFFLER | Muffler (SF416) |
| 14281-60G01-000 | MOUNTING,MUF | Muffler (SF416) |
| 14281-71C01-000 | MOUNTING,MUF | Muffler (SF416) |
| 14283-71C00-000 | INSULATOR,EXH PIPE BRKT | Muffler (SF416) |
| 14284-71C00-000 | Brkt,exh pipe | Muffler (SF416) |
| 14293-71C01-000 | BRACKET,EXH PIPE BODY SIDE | Muffler (SF416) |
| 14300-71C34-000 | マフラ,エキゾースト | Muffler (SF416) |
| 14300-71C3V-000 | MUFFLER | Muffler (SF416) |
| 14492-82610-000 | SPRING,EXH PIPE | Muffler (SF416) |
| 14630-71C60-000 | PIPE,MUFFLER TAIL | Muffler (SF416) |
| 18213-64B00-000 | SENSOR,OXYGEN | Muffler (SF416) |
