| 01550-06203-000 |
Bolt |

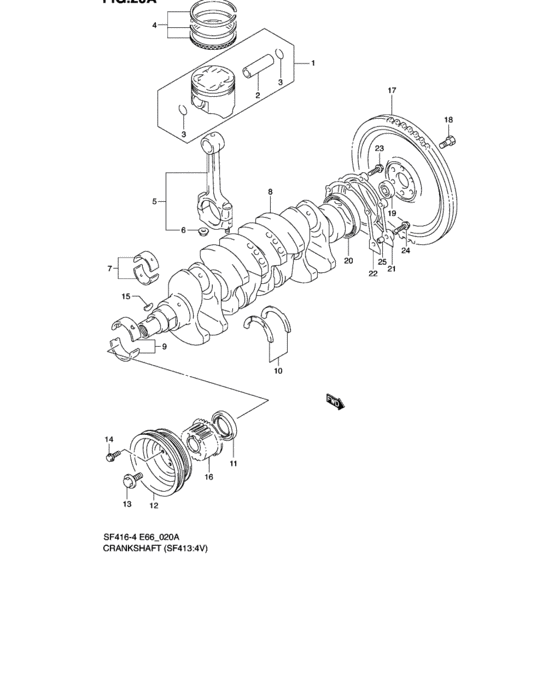

Crankshaft (SF413:4V) |
| 01550-0620B-000 |
Bolt - Bolt, inspection cap |
Crankshaft (SF413:4V) |
| 01550-06253-000 |
Bolt (6x25) |
Crankshaft (SF413:4V) |
| 01550-0625A-000 |
Bolt |
Crankshaft (SF413:4V) |
| 01550-0625B-000 |
Bolt - Bolt, head cover |
Crankshaft (SF413:4V) |
| 04211-09109-000 |
PIN - Knock pin |
Crankshaft (SF413:4V) |
| 08341-31059-000 |
KEY |
Crankshaft (SF413:4V) |
| 09100-10275-000 |
BOLT(10X18.5) |
Crankshaft (SF413:4V) |
| 09103-06185-000 |
BOLT(6X20) - Bolt (6x20) |
Crankshaft (SF413:4V) |
| 09159-08033-000 |
NUT |
Crankshaft (SF413:4V) |
| 09283-32042-000 |
SEAL,OIL(32X47X6) |
Crankshaft (SF413:4V) |
| 09283-68002-000 |
SEAL,OIL(68X86X8) |
Crankshaft (SF413:4V) |
| 09381-19001-000 |
RING,SNAP - Snap ring |
Crankshaft (SF413:4V) |
| 11341-82000-000 |
Housing, oil seal |
Crankshaft (SF413:4V) |
| 11341-82001-000 |
HOUSING,OIL SEAL |
Crankshaft (SF413:4V) |
| 11349-60A01-000 |
GASKET,OIL SEAL HSG - Gasket, oil seal housing |
Crankshaft (SF413:4V) |
| 12100-63880-050 |
PISTON SET,OS:0.50 |
Crankshaft (SF413:4V) |
| 12100-63880-0A0 |
PISTON SET,STD:MARK 1 |
Crankshaft (SF413:4V) |
| 12100-63880-0B0 |
PISTON SET,STD:MARK 2 |
Crankshaft (SF413:4V) |
| 12100-82810-000 |
BEARING SET,CONNROD - Bearing set, big end |
Crankshaft (SF413:4V) |
| 12100-82810-025 |
BEARING SET,CONNROD US:0.25 |
Crankshaft (SF413:4V) |
| 12140-63E50-000 |
RING SET,PISTON (STD) |
Crankshaft (SF413:4V) |
| 12140-63E50-050 |
RING SET,PISTON OS:0.50 |
Crankshaft (SF413:4V) |
| 12151-86501-000 |
PIN,PISTON |
Crankshaft (SF413:4V) |
| 12160-70C00-000 |
Connecting rod assy |
Crankshaft (SF413:4V) |
| 12160-70C10-000 |
CONNROD ASSY |
Crankshaft (SF413:4V) |
| 12221-83E00-000 |
CRANKSHAFT |
Crankshaft (SF413:4V) |
| 12300-60840-000 |
BEARING SET,CRANK THRUST (STD) |
Crankshaft (SF413:4V) |
| 12300-60840-012 |
BEARING SET,CRANK THRUST (OS:0.125) |
Crankshaft (SF413:4V) |
| 12300-82810-0AA |
BEARING SET,CRANKSHAFT US |
Crankshaft (SF413:4V) |
| 12300-82810-0BA |
BEARING SET,CRANKSHAFT US |
Crankshaft (SF413:4V) |
| 12300-82810-0CA |
BEARING SET,CRANKSHAFT US |
Crankshaft (SF413:4V) |
| 12300-82810-0DA |
BEARING SET,CRANKSHAFT US |
Crankshaft (SF413:4V) |
| 12300-82810-0EA |
BEARING SET,CRANKSHAFT US |
Crankshaft (SF413:4V) |
| 12300-82820-000 |
Bearing set, crank thrust (STD) |
Crankshaft (SF413:4V) |
| 12300-82820-012 |
Bearing set, crank thrust (OS:0.125) |
Crankshaft (SF413:4V) |
| 12340-82000-0A0 |
BEARING SET,CRANKSHAFT STD (Green) |
Crankshaft (SF413:4V) |
| 12340-82000-0B0 |
BEARING SET,CRANKSHAFT STD (Black) |
Crankshaft (SF413:4V) |
| 12340-82000-0C0 |
BEARING SET,CRANKSHAFT STD (None) |
Crankshaft (SF413:4V) |
| 12340-82000-0D0 |
BEARING SET,CRANKSHAFT STD (Yellow) |
Crankshaft (SF413:4V) |
| 12340-82000-0E0 |
BEARING SET,CRANKSHAFT STD (Blue) |
Crankshaft (SF413:4V) |
| 12611-51G10-000 |
PULLEY,CRANKSHAFT |
Crankshaft (SF413:4V) |
| 12619-53B01-000 |
BOLT,CRANK PULLEY |
Crankshaft (SF413:4V) |
| 12620-63B00-000 |
FLYWHEEL |
Crankshaft (SF413:4V) |
| 12623-60A00-000 |
BEARING,INPUT SHAFT - Bearing, input shaft |
Crankshaft (SF413:4V) |
| 12630-52G00-000 |
Pulley, crank timing belt |
Crankshaft (SF413:4V) |
| 12630-52G01-000 |
PULLEY,CRANK TIMING BELT |
Crankshaft (SF413:4V) |
