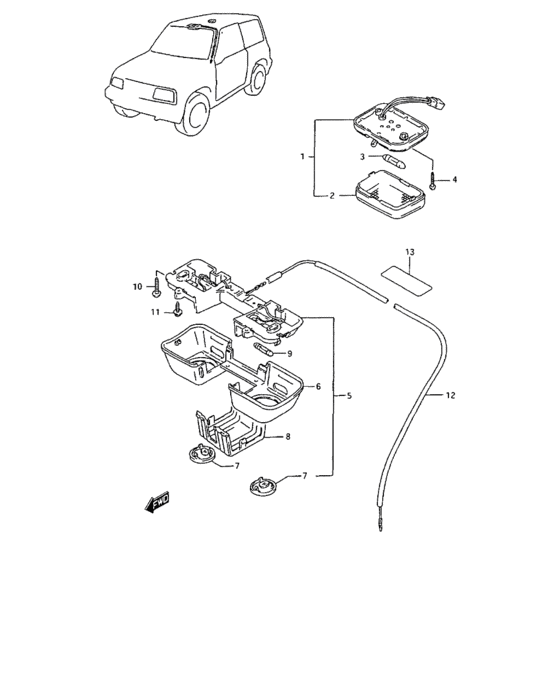

Room lamp (ROOM LAMP)
18
| # | OEM | Part name |
|---|
| 1 |
36210-85C00-6GS |
Lamp assy, room |
| 2 |
36212-85C00-000 |
Lens |
| 3 |
09471-12073-000 |
BULB(12V,5W) |
| 4 |
03211-04163-000 |
Screw |
| 4 |
03211-0416A-000 |
SCREW |
| 5 |
36230-85C20-6GS |
Lamp Assy, Spot |
| 5 |
36230-85C30-6GS |
Lamp Assy, Spot |
| 5 |
36230-85C10-6GS |
Lamp Assy, Spot |
| 6 |
36235-60A10-6GS |
Cover,spot lamp,no.1 |
| 7 |
36232-60A10-T01 |
LENS,SPOT LAMP |
| 8 |
36242-60A10-6GS |
COVER,SPOT LAMP,NO.2 |
| 10 |
03141-05203-000 |
スクリュ |
| 10 |
03141-0520B-000 |
SCREW |
| 10 |
03142-0520B-000 |
SCREW |
| 11 |
03541-04103-000 |
Screw |
| 11 |
03541-0410A-000 |
SCREW |
| 12 |
36820-61A10-000 |
WIRE,SPOT LAMP |
| 13 |
36930-60A10-000 |
COVER |
| OEM |
Part name |
Category |
| 03141-05203-000 |
スクリュ |
Room lamp (ROOM LAMP) |
| 03141-0520B-000 |
SCREW |
Room lamp (ROOM LAMP) |
| 03142-0520B-000 |
SCREW |
Room lamp (ROOM LAMP) |
| 03211-04163-000 |
Screw |
Room lamp (ROOM LAMP) |
| 03211-0416A-000 |
SCREW |
Room lamp (ROOM LAMP) |
| 03541-04103-000 |
Screw |
Room lamp (ROOM LAMP) |
| 03541-0410A-000 |
SCREW |
Room lamp (ROOM LAMP) |
| 09471-12073-000 |
BULB(12V,5W) |
Room lamp (ROOM LAMP) |
| 36210-85C00-6GS |
Lamp assy, room |
Room lamp (ROOM LAMP) |
| 36212-85C00-000 |
Lens |
Room lamp (ROOM LAMP) |
| 36230-85C10-6GS |
Lamp Assy, Spot |
Room lamp (ROOM LAMP) |
| 36230-85C20-6GS |
Lamp Assy, Spot |
Room lamp (ROOM LAMP) |
| 36230-85C30-6GS |
Lamp Assy, Spot |
Room lamp (ROOM LAMP) |
| 36232-60A10-T01 |
LENS,SPOT LAMP |
Room lamp (ROOM LAMP) |
| 36235-60A10-6GS |
Cover,spot lamp,no.1 |
Room lamp (ROOM LAMP) |
| 36242-60A10-6GS |
COVER,SPOT LAMP,NO.2 |
Room lamp (ROOM LAMP) |
| 36820-61A10-000 |
WIRE,SPOT LAMP |
Room lamp (ROOM LAMP) |
| 36930-60A10-000 |
COVER |
Room lamp (ROOM LAMP) |
