SE420

Suzuki VITARA · 3,251 parts · 147 categories
SE420 ×

← Back to categories

3,251 items

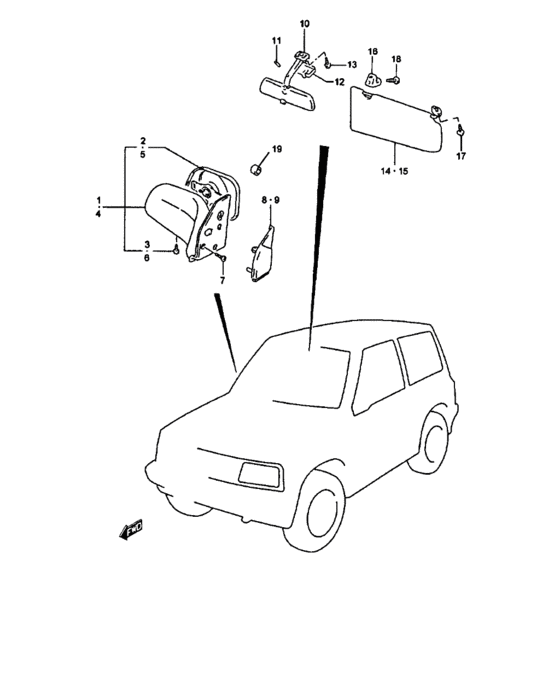

Mirror/sun visor (3DR) 37
#OEMPart name
1 84701-62A20-5PK MIRROR ASSY,RR VIEW,R
1 84701-85C20-5PK Mirror, out rr view rh - Black
2 84720-61A00-000 MIRROR S/ASSY,OUT RR VIEW,R
2 84720-61A10-000 MIRROR S/ASSY,OUT RR VIEW,R
3 03511-04103-000 Tapping screw
3 03511-0410A-000 SCREW
4 84702-62A20-5PK MIRROR ASSY,RR VIEW,L
4 84702-85C20-5PK Mirror, out rr view lh - Black
5 84760-61A00-000 MIRROR S/ASSY,OUT RR VIEW,L
5 84760-61A10-000 MIRROR S/ASSY,OUT RR VIEW,L
7 03141-04083-000 スクリュ
7 03141-0408A-000 SCREW
8 84750-85C00-5PK Garnish, sash brkt inr rh
9 84790-85C00-5PK Garnish, sash brkt inr lh
10 84703-85C10-T01 Mirror, inside rr view - Gray
11 84782-85C00-000 Rubber
12 84781-85C00-6GS Cover
13 02122-05203-000 Screw
13 02122-0520A-000 SCREW
14 84801-60A00-6NY Sunvisor assy, rh - Gray
14 84801-60A01-6NY SUNVISOR ASSY,R
14 84801-61A00-T18 Sunvisor set, rh - Gray
14 84801-61A01-T18 SUNVISOR ASSY,R
14 84801-69A20-T18 Sunvisor assy,r(gray)
14 84801-69A2V-T18 Sunvisor assy,r
15 84802-60A00-6NY Sunvisor assy, lh - Gray
15 84802-60A01-6NY SUNVISOR ASSY,L
15 84802-60A00-T18 Sunvisor set, lh - Gray
15 84802-60A01-T18 SUNVISOR ASSY,L
15 84802-69A02-T18 Sunvisor assy, lh - Gray
15 84802-69A0V-T18 SUNVISOR ASSY,L
16 84851-60B00-6GS HOLDER,SUNVISOR
17 09127-05016-000 スクリュ,5X16
17 02122-0516B-000 SCREW
18 03211-05163-000 Screw - Tapping screw
18 03211-0516A-000 SCREW
19 86124-85C00-000 Bush,inside rear view mirror
