SE420

Suzuki VITARA · 3,251 parts · 147 categories
SE420 ×

← Back to categories

3,251 items

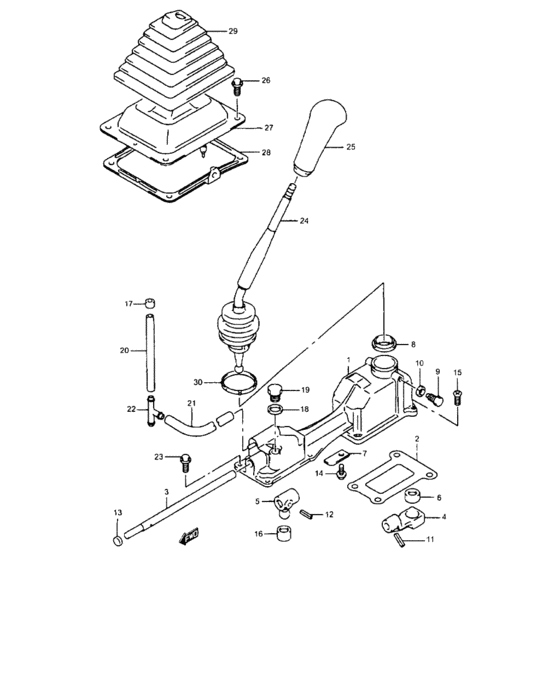

Gear shift control (GEAR SHIFT CONTROL) 40
#OEMPart name
1 25121-78E00-000 Case, gear shift lever
2 25129-60A00-000 PLATE,GEAR SHF CASE
3 25521-78E00-000 SHAFT,GEAR SHIFT
4 25531-78E11-000 ARM,GEAR SHIFT
5 25541-78E10-000 Lever, gear shift
5 25541-78E11-000 Lever,gear shift
6 25551-85C00-000 Bush, gear control lever
7 27465-78E00-000 PLATE,OIL PROTECT
8 28117-60A00-000 SEAT,GEAR SHF LEVER CASE
9 21941-85C50-000 Bolt, lever locating - 8x20
10 08321-B3108-300 Washer - 8.2x15.2x1.6
11 09205-03037-000 PIN,SPRING(3X25)
12 09205-06016-000 PIN,SPRING(6X25)
12 09205-06007-000 PIN,SPRING(6X25) - Pin (6x27)
13 21947-85C10-000 Plug
14 01550-06123-000 Bolt
14 01550-0612B-000 Bolt - Bolt, clamp
14 01550-0612A-000 Bolt
15 02122-06163-000 Screw
15 02122-0616B-000 SCREW - Screw, intake pipe
15 02122-0616A-000 SCREW
16 25551-78E00-000 Bush
16 25551-52D00-000 BUSH,GEAR SHIFT LEVER
17 46543-85C00-000 Plug, breather
18 22913-65D10-000 GASKET
18 22913-59J10-000 GASKET,14X20X0.9
18 22910-65810-000 BOLT&GASKET SET
19 09247-14027-000 PLUG(14X11.5) - Plug, oil drain
19 09247-14044-000 DRAIN PLUG (M14x1.5)
20 21931-85C10-000 Hose, breather n.1
22 09367-08004-000 3 WAY - 3 way (m8)
23 01550-08253-000 Bolt, rear
23 01550-0825B-000 Bolt
23 01550-0825A-000 Bolt
24 28101-85C00-000 LEVER,GEAR SHF CONT
25 28113-85C00-5PK Knob, control lever
27 28136-85F40-000 BOOT,GR SHF CONT LEVER NO.2
28 28137-60A01-000 COVER,GEAR SHF CONT BOOT
29 28138-60A01-5PK Boot, control lever n.3
30 21935-85C00-000 Clamp
