SE420

Suzuki VITARA · 3,251 parts · 147 categories

3,251 items

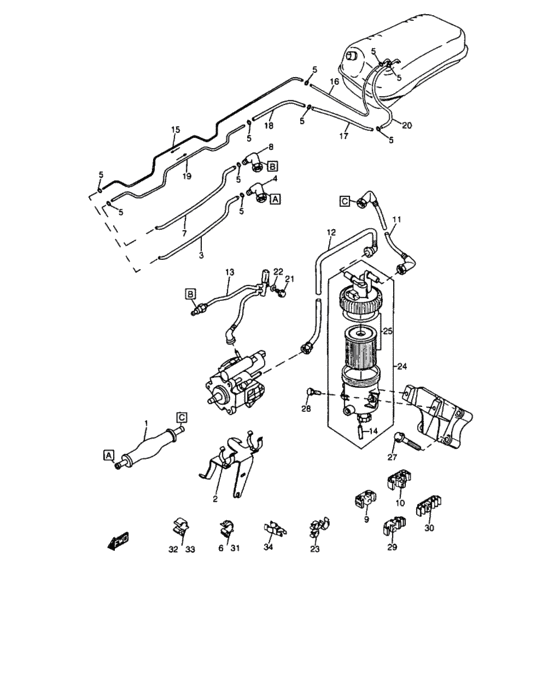

Fuel Pump (TYPE 2) 35

#	OEM	Part name
1	15100-86CB0-000	Primer
2	15862-86CT2-000	Bracket, primer
3	15816-86CF0-000	Hose, delivery to primer
4	15820-84CB0-000	Connector to filter - Inlet
5	15899-85C00-000	Clamp, pipe to hose
6	09408-00055-000	CLAMP
7	15864-86CU0-000	Hose, return to chassis pipe
8	15820-84CA0-000	Connector to filter - Outlet
9	09408-00157-000	CLAMP
10	09403-14309-000	CLAMP
11	15816-86CH0-000	Hose, primer to filter
12	15865-86CT2-000	Hose, filter to pump
13	15865-86CT3-000	Return hose & temp. sensor ass,y
14	15862-86CT1-000	Hose, purge
15	15811-86CE0-000	Pipe, tank in chassis outlet
15	15811-86CD0-000	Pipe, tank in chassis outlet
16	15816-86CE0-000	Hose, tank outlet to chassis p,ipe
17	15861-86CG0-000	Pipe, return in tank
18	15864-86CS0-000	Hose, return pipe to fuel tank
19	15861-86CI0-000	Pipe, return to tank
19	15861-86CH0-000	Pipe, return to tank
20	15864-86CR0-000	Hose, return pipe to fuel tank
21	01550-86CT0-000	Bolt
22	09160-86CT2-000	Washer
23	15894-86CT0-000	Clip
24	15410-86CT1-000	Fuel filter assy
25	15412-86CT1-000	Element, fuel filter
26	15420-86CT1-000	Filter assy
27	18137-86CT1-000	Bolt
28	15414-86CT0-000	Bolt
29	15893-86CA0-000	Clamp, fuel hose
30	15895-86CA0-000	Clamp,fuel pipe
32	15891-60A11-000	CLAMP,FUEL PIPE
33	15895-86CB0-000	Clamp, fuel pipe
34	09408-00060-000	CLAMP

OEM	Part name	Category
01550-86CT0-000	Bolt	Fuel Pump (TYPE 2)
09160-86CT2-000	Washer	Fuel Pump (TYPE 2)
09403-14309-000	CLAMP	Fuel Pump (TYPE 2)
09408-00055-000	CLAMP	Fuel Pump (TYPE 2)
09408-00060-000	CLAMP	Fuel Pump (TYPE 2)
09408-00157-000	CLAMP	Fuel Pump (TYPE 2)
15100-86CB0-000	Primer	Fuel Pump (TYPE 2)
15410-86CT1-000	Fuel filter assy	Fuel Pump (TYPE 2)
15412-86CT1-000	Element, fuel filter	Fuel Pump (TYPE 2)
15414-86CT0-000	Bolt	Fuel Pump (TYPE 2)
15420-86CT1-000	Filter assy	Fuel Pump (TYPE 2)
15811-86CD0-000	Pipe, tank in chassis outlet	Fuel Pump (TYPE 2)
15811-86CE0-000	Pipe, tank in chassis outlet	Fuel Pump (TYPE 2)
15816-86CE0-000	Hose, tank outlet to chassis p,ipe	Fuel Pump (TYPE 2)
15816-86CF0-000	Hose, delivery to primer	Fuel Pump (TYPE 2)
15816-86CH0-000	Hose, primer to filter	Fuel Pump (TYPE 2)
15820-84CA0-000	Connector to filter - Outlet	Fuel Pump (TYPE 2)
15820-84CB0-000	Connector to filter - Inlet	Fuel Pump (TYPE 2)
15861-86CG0-000	Pipe, return in tank	Fuel Pump (TYPE 2)
15861-86CH0-000	Pipe, return to tank	Fuel Pump (TYPE 2)
15861-86CI0-000	Pipe, return to tank	Fuel Pump (TYPE 2)
15862-86CT1-000	Hose, purge	Fuel Pump (TYPE 2)
15862-86CT2-000	Bracket, primer	Fuel Pump (TYPE 2)
15864-86CR0-000	Hose, return pipe to fuel tank	Fuel Pump (TYPE 2)
15864-86CS0-000	Hose, return pipe to fuel tank	Fuel Pump (TYPE 2)
15864-86CU0-000	Hose, return to chassis pipe	Fuel Pump (TYPE 2)
15865-86CT2-000	Hose, filter to pump	Fuel Pump (TYPE 2)
15865-86CT3-000	Return hose & temp. sensor ass,y	Fuel Pump (TYPE 2)
15891-60A11-000	CLAMP,FUEL PIPE	Fuel Pump (TYPE 2)
15893-86CA0-000	Clamp, fuel hose	Fuel Pump (TYPE 2)
15894-86CT0-000	Clip	Fuel Pump (TYPE 2)
15895-86CA0-000	Clamp,fuel pipe	Fuel Pump (TYPE 2)
15895-86CB0-000	Clamp, fuel pipe	Fuel Pump (TYPE 2)
15899-85C00-000	Clamp, pipe to hose	Fuel Pump (TYPE 2)
18137-86CT1-000	Bolt	Fuel Pump (TYPE 2)
