Search › Model › SE420
SE420

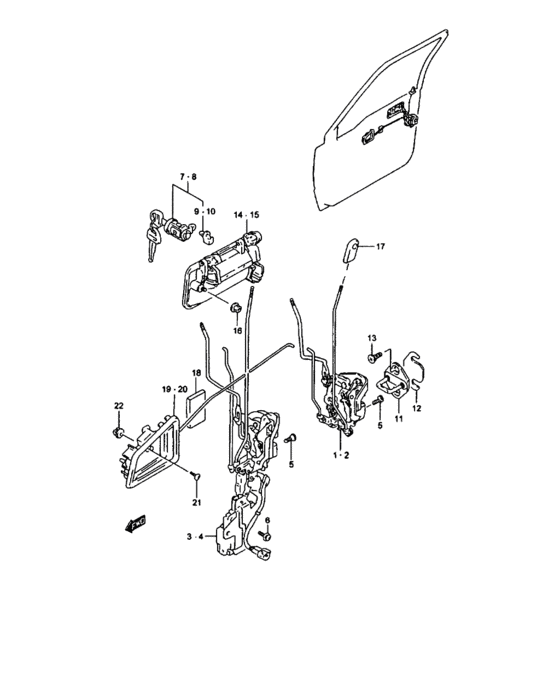

Fr dr lock (3DR) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 82201-65A00-000 | LATCH ASSY,FR DR,R |
| 2 | 82202-65A00-000 | LATCH ASSY,FR DR,L |
| 3 | 82201-66A00-000 | LATCH ASSY,FR DR,R |
| 4 | 82202-66A00-000 | LATCH ASSY,FR DR,L |
| 5 | 02122-56163-000 | SCREW |
| 5 | 02122-5616B-000 | SCREW |
| 6 | 02112-76123-000 | Screw |
| 6 | 02112-7612B-000 | SCREW |
| 7 | 82200-60831-000 | CYLINDER,FR DR LOCK,R |
| 8 | 82200-60841-000 | CYLINDER,FR DR LOCK,L |
| 9 | 82277-60A00-000 | HOLDER |
| 10 | 82287-60A00-000 | HOLDER |
| 11 | 82610-60A01-000 | STRIKER,FR DOOR LATCH |
| 12 | 78199-78000-000 | SPACER,DOOR LOCK STRIKER |
| 13 | 09137-08011-000 | SCREW(8X18) |
| 14 | 82810-85C00-5PK | Handle, out rh - Black |
| 15 | 82820-85C00-5PK | Handle, out lh - Black |
| 16 | 08316-20063-000 | Nut |
| 16 | 08316-2006A-000 | NUT |
| 17 | 82973-60A01-5PK | KNOB,FR DR INSIDE LOCK |
| 18 | 77591-75000-000 | PAD |
| 19 | 83110-85C00-T01 | Handle, door inside rh - Gray |
| 20 | 83130-85C00-T01 | Handle, door inside lh - Gray |
| 21 | 03121-05163-000 | Screw |
| 21 | 03121-0516A-000 | SCREW |
| 22 | 59981-85C00-000 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 02112-76123-000 | Screw | Fr dr lock (3DR) |
| 02112-7612B-000 | SCREW | Fr dr lock (3DR) |
| 02122-56163-000 | SCREW | Fr dr lock (3DR) |
| 02122-5616B-000 | SCREW | Fr dr lock (3DR) |
| 03121-05163-000 | Screw | Fr dr lock (3DR) |
| 03121-0516A-000 | SCREW | Fr dr lock (3DR) |
| 08316-20063-000 | Nut | Fr dr lock (3DR) |
| 08316-2006A-000 | NUT | Fr dr lock (3DR) |
| 09137-08011-000 | SCREW(8X18) | Fr dr lock (3DR) |
| 59981-85C00-000 | Nut | Fr dr lock (3DR) |
| 77591-75000-000 | PAD | Fr dr lock (3DR) |
| 78199-78000-000 | SPACER,DOOR LOCK STRIKER | Fr dr lock (3DR) |
| 82200-60831-000 | CYLINDER,FR DR LOCK,R | Fr dr lock (3DR) |
| 82200-60841-000 | CYLINDER,FR DR LOCK,L | Fr dr lock (3DR) |
| 82201-65A00-000 | LATCH ASSY,FR DR,R | Fr dr lock (3DR) |
| 82201-66A00-000 | LATCH ASSY,FR DR,R | Fr dr lock (3DR) |
| 82202-65A00-000 | LATCH ASSY,FR DR,L | Fr dr lock (3DR) |
| 82202-66A00-000 | LATCH ASSY,FR DR,L | Fr dr lock (3DR) |
| 82277-60A00-000 | HOLDER | Fr dr lock (3DR) |
| 82287-60A00-000 | HOLDER | Fr dr lock (3DR) |
| 82610-60A01-000 | STRIKER,FR DOOR LATCH | Fr dr lock (3DR) |
| 82810-85C00-5PK | Handle, out rh - Black | Fr dr lock (3DR) |
| 82820-85C00-5PK | Handle, out lh - Black | Fr dr lock (3DR) |
| 82973-60A01-5PK | KNOB,FR DR INSIDE LOCK | Fr dr lock (3DR) |
| 83110-85C00-T01 | Handle, door inside rh - Gray | Fr dr lock (3DR) |
| 83130-85C00-T01 | Handle, door inside lh - Gray | Fr dr lock (3DR) |
