Search › Model › SE420
SE420

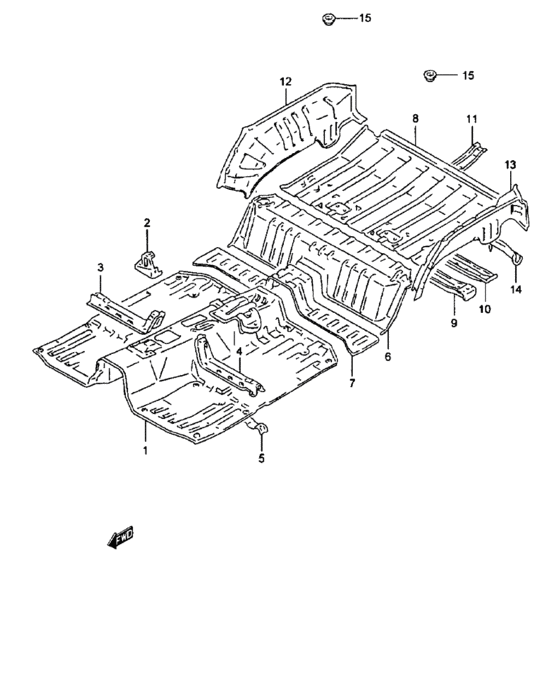

Floor paner (5DR) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 61400-58810-000 | パネルセット,フロントフロア |
| 1 | 61411-57B60-000 | PAN,MAIN FLOOR |
| 2 | 61440-60A00-000 | BRACKET,JACK |
| 3 | 61450-56B00-000 | MEMBER,FR SEAT,R |
| 4 | 61550-56B00-000 | MEMBER,FR SEAT,L |
| 5 | 61641-60A10-000 | REINFORCEMENT,SEAT BELT,CTR |
| 6 | 61700-56B10-000 | PANEL ASSY,CENTER FLOOR |
| 7 | 61760-56B50-000 | PANEL,CTR FLOOR FRONT |
| 8 | 62111-56B61-000 | PANEL,REAR FLOOR |
| 9 | 62120-56B50-000 | MEMBER,RR FL NO.1 |
| 10 | 62130-86CA0-000 | Member, rear floor n.2 |
| 10 | 62131-56B50-000 | MEMBER,RR FL NO.2 |
| 11 | 62141-56B50-000 | MEMBER,RR FL NO.3 |
| 12 | 62210-56B10-000 | PANEL,RR WHEEL HSG INR,R |
| 13 | 62310-56B00-000 | PANEL,RR WHEEL HSG INR,L |
| 14 | 62510-57B21-000 | MEMBER,RR FL TAIL |
| 15 | 65971-77E00-000 | Cap, rear floor drain |
| 15 | 65971-77E10-000 | CAP,OD:30 |
| OEM | Part name | Category |
|---|---|---|
| 61400-58810-000 | パネルセット,フロントフロア | Floor paner (5DR) |
| 61411-57B60-000 | PAN,MAIN FLOOR | Floor paner (5DR) |
| 61440-60A00-000 | BRACKET,JACK | Floor paner (5DR) |
| 61450-56B00-000 | MEMBER,FR SEAT,R | Floor paner (5DR) |
| 61550-56B00-000 | MEMBER,FR SEAT,L | Floor paner (5DR) |
| 61641-60A10-000 | REINFORCEMENT,SEAT BELT,CTR | Floor paner (5DR) |
| 61700-56B10-000 | PANEL ASSY,CENTER FLOOR | Floor paner (5DR) |
| 61760-56B50-000 | PANEL,CTR FLOOR FRONT | Floor paner (5DR) |
| 62111-56B61-000 | PANEL,REAR FLOOR | Floor paner (5DR) |
| 62120-56B50-000 | MEMBER,RR FL NO.1 | Floor paner (5DR) |
| 62130-86CA0-000 | Member, rear floor n.2 | Floor paner (5DR) |
| 62131-56B50-000 | MEMBER,RR FL NO.2 | Floor paner (5DR) |
| 62141-56B50-000 | MEMBER,RR FL NO.3 | Floor paner (5DR) |
| 62210-56B10-000 | PANEL,RR WHEEL HSG INR,R | Floor paner (5DR) |
| 62310-56B00-000 | PANEL,RR WHEEL HSG INR,L | Floor paner (5DR) |
| 62510-57B21-000 | MEMBER,RR FL TAIL | Floor paner (5DR) |
| 65971-77E00-000 | Cap, rear floor drain | Floor paner (5DR) |
| 65971-77E10-000 | CAP,OD:30 | Floor paner (5DR) |
