SE420

Suzuki VITARA · 3,251 parts · 147 categories

3,251 items

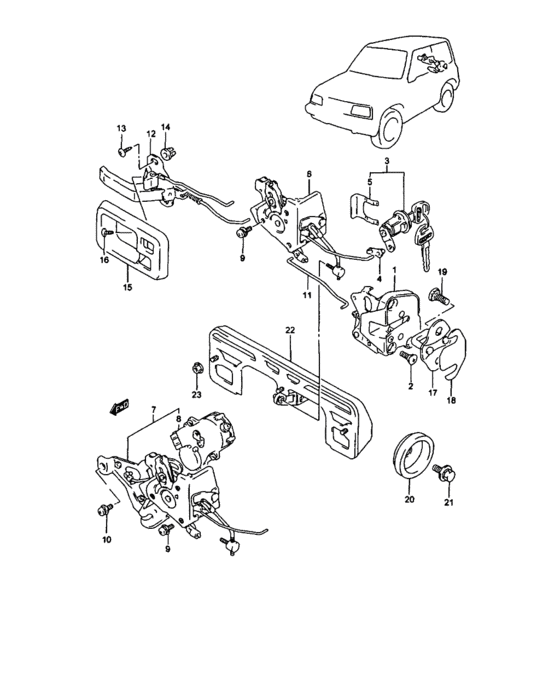

Back dr lock (V) 28

#	OEM	Part name
1	82530-61A00-000	LATCH ASSY,BACK DR
2	02122-56163-000	SCREW
2	02122-5616B-000	SCREW
3	82500-60830-000	CYLINDER BACK DOORLOCK
3	82500-60831-000	CYLINDER,BACK DR LOCK
4	82287-60A00-000	HOLDER
5	82577-70B01-000	CLIP,CYLINDER
6	83170-62A00-000	LINK,BACK DR LATCH
7	83170-58B00-000	LINK ASSY,BACK DR LATCH
8	82550-57B00-000	ACTUATOR,BACK DR LATCH
9	02112-76123-000	Screw
9	02112-7612B-000	SCREW
11	83175-85C00-000	Rod, back door latch
12	83190-62A00-T01	HANDLE,BACK DOOR INSIDE
13	03141-06123-000	Screw 6x12
13	03141-0612A-000	SCREW
14	59981-85C00-000	Nut
15	82981-82000-T01	BEZEL,BACK DR INSIDE HANDLE
16	03141-04083-000	スクリュ
16	03141-0408A-000	SCREW
17	82660-61A01-000	STRIKER,BACK DOOR LATCH
18	78199-78000-000	SPACER,DOOR LOCK STRIKER
19	09137-08011-000	SCREW(8X18)
20	82761-85C00-000	Male, stop
21	09118-08128-000	BOLT(8X16) - Bolt, front fender, front
22	82850-85C00-5PK	Handle, door out - Black
23	08316-20063-000	Nut
23	08316-2006A-000	NUT

OEM	Part name	Category
02112-76123-000	Screw	Back dr lock (V)
02112-7612B-000	SCREW	Back dr lock (V)
02122-56163-000	SCREW	Back dr lock (V)
02122-5616B-000	SCREW	Back dr lock (V)
03141-04083-000	スクリュ	Back dr lock (V)
03141-0408A-000	SCREW	Back dr lock (V)
03141-06123-000	Screw 6x12	Back dr lock (V)
03141-0612A-000	SCREW	Back dr lock (V)
08316-20063-000	Nut	Back dr lock (V)
08316-2006A-000	NUT	Back dr lock (V)
09118-08128-000	BOLT(8X16) - Bolt, front fender, front	Back dr lock (V)
09137-08011-000	SCREW(8X18)	Back dr lock (V)
59981-85C00-000	Nut	Back dr lock (V)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Back dr lock (V)
82287-60A00-000	HOLDER	Back dr lock (V)
82500-60830-000	CYLINDER BACK DOORLOCK	Back dr lock (V)
82500-60831-000	CYLINDER,BACK DR LOCK	Back dr lock (V)
82530-61A00-000	LATCH ASSY,BACK DR	Back dr lock (V)
82550-57B00-000	ACTUATOR,BACK DR LATCH	Back dr lock (V)
82577-70B01-000	CLIP,CYLINDER	Back dr lock (V)
82660-61A01-000	STRIKER,BACK DOOR LATCH	Back dr lock (V)
82761-85C00-000	Male, stop	Back dr lock (V)
82850-85C00-5PK	Handle, door out - Black	Back dr lock (V)
82981-82000-T01	BEZEL,BACK DR INSIDE HANDLE	Back dr lock (V)
83170-58B00-000	LINK ASSY,BACK DR LATCH	Back dr lock (V)
83170-62A00-000	LINK,BACK DR LATCH	Back dr lock (V)
83175-85C00-000	Rod, back door latch	Back dr lock (V)
83190-62A00-T01	HANDLE,BACK DOOR INSIDE	Back dr lock (V)
