SE419D

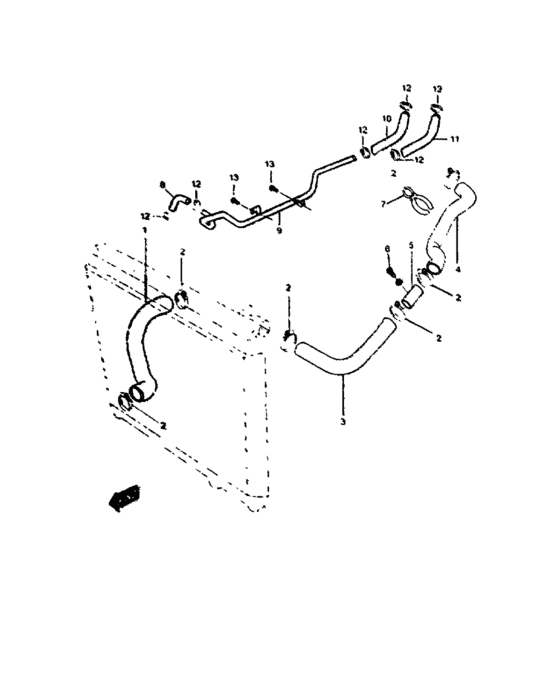

Water hose (WATER HOSE) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 17851-86CB1-000 | Hose |
| 2 | 09402-48511-000 | Clamp |
| 3 | 17841-86CE0-000 | Hose |
| 4 | 17842-86CB0-000 | Hose water |
| 5 | 17841-86CD0-000 | Union pipe, inlet hose |
| 6 | 01550-06123-000 | Bolt |
| 6 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 6 | 01550-0612A-000 | Bolt |
| 7 | 09408-00063-000 | CLAMP |
| 8 | 17872-86CA0-000 | Hose, outlet heater n2 |
| 9 | 17844-86CB0-000 | Pipe, heater |
| 10 | 17872-86CB2-000 | Hose |
| 11 | 17871-86CA0-000 | Hose, heater inlet |
| 12 | 08002-86CA0-000 | Clamp, suction hose |
| 13 | 11119-86CA4-000 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Water hose (WATER HOSE) |
| 01550-0612A-000 | Bolt | Water hose (WATER HOSE) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Water hose (WATER HOSE) |
| 08002-86CA0-000 | Clamp, suction hose | Water hose (WATER HOSE) |
| 09402-48511-000 | Clamp | Water hose (WATER HOSE) |
| 09408-00063-000 | CLAMP | Water hose (WATER HOSE) |
| 11119-86CA4-000 | Screw | Water hose (WATER HOSE) |
| 17841-86CD0-000 | Union pipe, inlet hose | Water hose (WATER HOSE) |
| 17841-86CE0-000 | Hose | Water hose (WATER HOSE) |
| 17842-86CB0-000 | Hose water | Water hose (WATER HOSE) |
| 17844-86CB0-000 | Pipe, heater | Water hose (WATER HOSE) |
| 17851-86CB1-000 | Hose | Water hose (WATER HOSE) |
| 17871-86CA0-000 | Hose, heater inlet | Water hose (WATER HOSE) |
| 17872-86CA0-000 | Hose, outlet heater n2 | Water hose (WATER HOSE) |
| 17872-86CB2-000 | Hose | Water hose (WATER HOSE) |
