SE419D

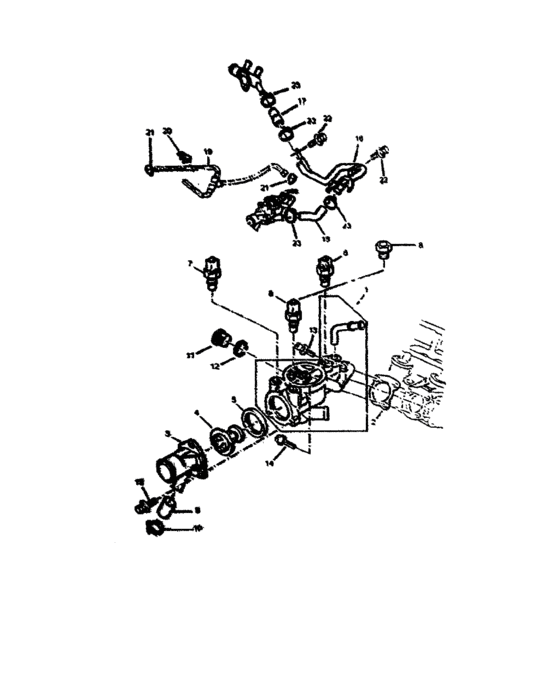

Thermostat (THERMOSTAT) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 17589-86CA1-000 | Water box |
| 2 | 14151-86CB0-000 | Gasket |
| 3 | 17581-86CA1-000 | Outlet stud |
| 4 | 17570-86CA0-000 | Thermostat |
| 5 | 11228-86CB0-000 | Gasket |
| 6 | 13651-86CT2-000 | Temp, switch |
| 7 | 13651-86CT0-000 | Sensor |
| 8 | 13651-86CT1-000 | Temp, sending |
| 8 | 11226-86CA4-000 | Plug |
| 9 | 27991-86CT0-000 | Plug |
| 10 | 09403-86CC0-000 | Clamp |
| 11 | 09248-86CT0-000 | Threaded, plug |
| 12 | 09168-86CT0-000 | Gasket |
| 15 | 11119-86CB1-000 | Bolt |
| 16 | 17872-86CA0-000 | Hose, outlet heater n2 |
| 17 | 17874-86CA0-000 | By-pass hoses |
| 18 | 17859-86CA1-000 | By-pass hose |
| 19 | 17879-86CB0-000 | Union |
| 20 | 09404-86CA0-000 | Stetcher bracket |
| 21 | 09408-86CA0-000 | Clamp |
| 22 | 11119-86CA4-000 | Screw |
| 23 | 09409-86CC0-000 | Clamp |
| OEM | Part name | Category |
|---|---|---|
| 09168-86CT0-000 | Gasket | Thermostat (THERMOSTAT) |
| 09248-86CT0-000 | Threaded, plug | Thermostat (THERMOSTAT) |
| 09403-86CC0-000 | Clamp | Thermostat (THERMOSTAT) |
| 09404-86CA0-000 | Stetcher bracket | Thermostat (THERMOSTAT) |
| 09408-86CA0-000 | Clamp | Thermostat (THERMOSTAT) |
| 09409-86CC0-000 | Clamp | Thermostat (THERMOSTAT) |
| 11119-86CA4-000 | Screw | Thermostat (THERMOSTAT) |
| 11119-86CB1-000 | Bolt | Thermostat (THERMOSTAT) |
| 11226-86CA4-000 | Plug | Thermostat (THERMOSTAT) |
| 11228-86CB0-000 | Gasket | Thermostat (THERMOSTAT) |
| 13651-86CT0-000 | Sensor | Thermostat (THERMOSTAT) |
| 13651-86CT1-000 | Temp, sending | Thermostat (THERMOSTAT) |
| 13651-86CT2-000 | Temp, switch | Thermostat (THERMOSTAT) |
| 14151-86CB0-000 | Gasket | Thermostat (THERMOSTAT) |
| 17570-86CA0-000 | Thermostat | Thermostat (THERMOSTAT) |
| 17581-86CA1-000 | Outlet stud | Thermostat (THERMOSTAT) |
| 17589-86CA1-000 | Water box | Thermostat (THERMOSTAT) |
| 17859-86CA1-000 | By-pass hose | Thermostat (THERMOSTAT) |
| 17872-86CA0-000 | Hose, outlet heater n2 | Thermostat (THERMOSTAT) |
| 17874-86CA0-000 | By-pass hoses | Thermostat (THERMOSTAT) |
| 17879-86CB0-000 | Union | Thermostat (THERMOSTAT) |
| 27991-86CT0-000 | Plug | Thermostat (THERMOSTAT) |
