SE419D

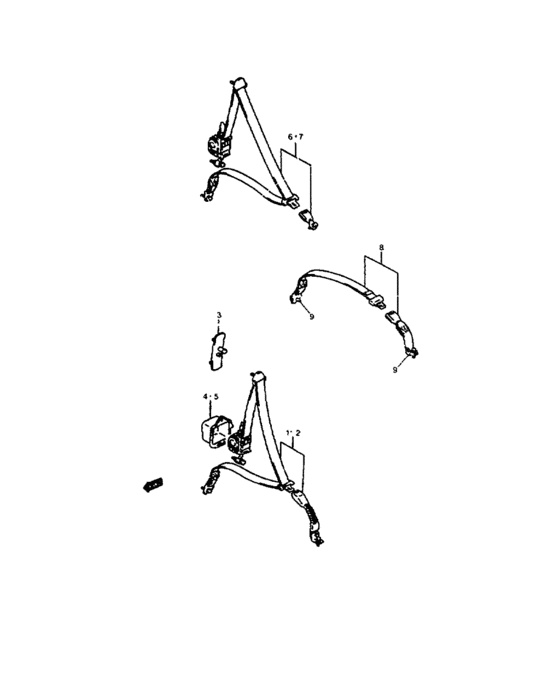

Seat belt (SEAT BELT) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-86C01-000 | Belt assy, front rh - Black |
| 2 | 84902-86C01-000 | Belt assy, front lh - Black |
| 3 | 84990-56B00-6GS | ADJUSTER ASSY,FR SHLDR |
| 4 | 84924-56B10-000 | COVER,FR SEAT BELT ELR DUST,R |
| 5 | 84925-56B10-000 | COVER,FR SEAT BELT ELR DUST,L |
| 6 | 84904-86C11-000 | Belt assy, rear rh - Black |
| 6 | 84904-86C01-000 | Belt assy, rear rh - Black |
| 7 | 84905-86C11-000 | Belt assy, rear lh - Black |
| 7 | 84905-86C01-000 | Belt assy, rear lh - Black |
| 8 | 84906-86C01-000 | Belt assy, rear center |
| 9 | 09103-12038-000 | BOLT(12X16) |
| OEM | Part name | Category |
|---|---|---|
| 09103-12038-000 | BOLT(12X16) | Seat belt (SEAT BELT) |
| 84901-86C01-000 | Belt assy, front rh - Black | Seat belt (SEAT BELT) |
| 84902-86C01-000 | Belt assy, front lh - Black | Seat belt (SEAT BELT) |
| 84904-86C01-000 | Belt assy, rear rh - Black | Seat belt (SEAT BELT) |
| 84904-86C11-000 | Belt assy, rear rh - Black | Seat belt (SEAT BELT) |
| 84905-86C01-000 | Belt assy, rear lh - Black | Seat belt (SEAT BELT) |
| 84905-86C11-000 | Belt assy, rear lh - Black | Seat belt (SEAT BELT) |
| 84906-86C01-000 | Belt assy, rear center | Seat belt (SEAT BELT) |
| 84924-56B10-000 | COVER,FR SEAT BELT ELR DUST,R | Seat belt (SEAT BELT) |
| 84925-56B10-000 | COVER,FR SEAT BELT ELR DUST,L | Seat belt (SEAT BELT) |
| 84990-56B00-6GS | ADJUSTER ASSY,FR SHLDR | Seat belt (SEAT BELT) |
