SE419D

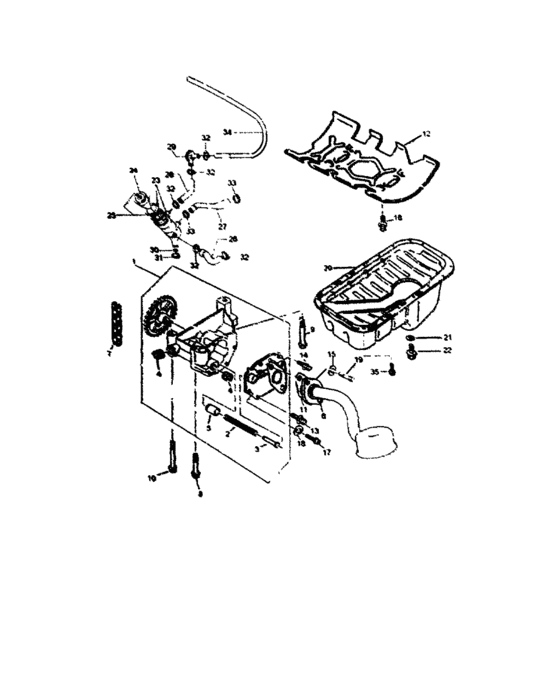

Oil pump (OIL PUMP) 34
| # | OEM | Part name |
|---|---|---|
| 1 | 18104-88CT0-000 | Oil Pump |
| 2 | 18152-86CA0-000 | Piston spring |
| 3 | 09111-86CT0-000 | Retainer, spring |
| 4 | 11226-86CT0-000 | Plug |
| 5 | 16151-86CA0-000 | Valve, oil relief |
| 6 | 16520-86CA1-000 | Oil strainer |
| 7 | 10100-86CA0-000 | Chain, oil pump |
| 8 | 01610-86CA2-000 | Bolt |
| 9 | 01610-86CT0-000 | Bolt |
| 10 | 01610-86CA1-000 | Bolt |
| 11 | 16527-86CA1-000 | Gasket |
| 12 | 11512-86CA0-000 | Plate, baffle |
| 13 | 01517-86CT0-000 | Bolt |
| 14 | 01517-86CT1-000 | Bolt |
| 15 | 08321-86CA0-000 | Spring washer |
| 16 | 11119-86CA5-000 | Bolt |
| 17 | 11681-86CT0-000 | Bolt |
| 18 | 08321-86CT0-000 | Spring washer |
| 19 | 01517-86CA2-000 | Screw h |
| 20 | 11510-86CA2-000 | Pan comp oil |
| 21 | 09168-86CA0-000 | Gasket |
| 22 | 09247-86CB1-000 | Drain plug |
| 23 | 16920-86CA0-000 | Oil filler assy |
| 24 | 11226-86CA3-000 | Plug |
| 25 | 11228-86CA3-000 | Seal, oil |
| 26 | 17876-86CB0-000 | Union |
| 27 | 17887-86CA0-000 | Union |
| 28 | 17879-86CB0-000 | Union |
| 29 | 15230-86CB0-000 | Regulator |
| 30 | 15167-86CA0-000 | O-ring |
| 31 | 09403-86CA1-000 | Clamp |
| 33 | 09403-86CT0-000 | Clamp |
| 34 | 11175-86CA0-000 | Hose,eng ventilation |
| 35 | 01500-86CB0-000 | Bolt, pan oil |
| OEM | Part name | Category |
|---|---|---|
| 01500-86CB0-000 | Bolt, pan oil | Oil pump (OIL PUMP) |
| 01517-86CA2-000 | Screw h | Oil pump (OIL PUMP) |
| 01517-86CT0-000 | Bolt | Oil pump (OIL PUMP) |
| 01517-86CT1-000 | Bolt | Oil pump (OIL PUMP) |
| 01610-86CA1-000 | Bolt | Oil pump (OIL PUMP) |
| 01610-86CA2-000 | Bolt | Oil pump (OIL PUMP) |
| 01610-86CT0-000 | Bolt | Oil pump (OIL PUMP) |
| 08321-86CA0-000 | Spring washer | Oil pump (OIL PUMP) |
| 08321-86CT0-000 | Spring washer | Oil pump (OIL PUMP) |
| 09111-86CT0-000 | Retainer, spring | Oil pump (OIL PUMP) |
| 09168-86CA0-000 | Gasket | Oil pump (OIL PUMP) |
| 09247-86CB1-000 | Drain plug | Oil pump (OIL PUMP) |
| 09403-86CA1-000 | Clamp | Oil pump (OIL PUMP) |
| 09403-86CT0-000 | Clamp | Oil pump (OIL PUMP) |
| 10100-86CA0-000 | Chain, oil pump | Oil pump (OIL PUMP) |
| 11119-86CA5-000 | Bolt | Oil pump (OIL PUMP) |
| 11175-86CA0-000 | Hose,eng ventilation | Oil pump (OIL PUMP) |
| 11226-86CA3-000 | Plug | Oil pump (OIL PUMP) |
| 11226-86CT0-000 | Plug | Oil pump (OIL PUMP) |
| 11228-86CA3-000 | Seal, oil | Oil pump (OIL PUMP) |
| 11510-86CA2-000 | Pan comp oil | Oil pump (OIL PUMP) |
| 11512-86CA0-000 | Plate, baffle | Oil pump (OIL PUMP) |
| 11681-86CT0-000 | Bolt | Oil pump (OIL PUMP) |
| 15167-86CA0-000 | O-ring | Oil pump (OIL PUMP) |
| 15230-86CB0-000 | Regulator | Oil pump (OIL PUMP) |
| 16151-86CA0-000 | Valve, oil relief | Oil pump (OIL PUMP) |
| 16520-86CA1-000 | Oil strainer | Oil pump (OIL PUMP) |
| 16527-86CA1-000 | Gasket | Oil pump (OIL PUMP) |
| 16920-86CA0-000 | Oil filler assy | Oil pump (OIL PUMP) |
| 17876-86CB0-000 | Union | Oil pump (OIL PUMP) |
| 17879-86CB0-000 | Union | Oil pump (OIL PUMP) |
| 17887-86CA0-000 | Union | Oil pump (OIL PUMP) |
| 18104-88CT0-000 | Oil Pump | Oil pump (OIL PUMP) |
| 18152-86CA0-000 | Piston spring | Oil pump (OIL PUMP) |
