| 01570-08253-000 |
Bolt, upper |

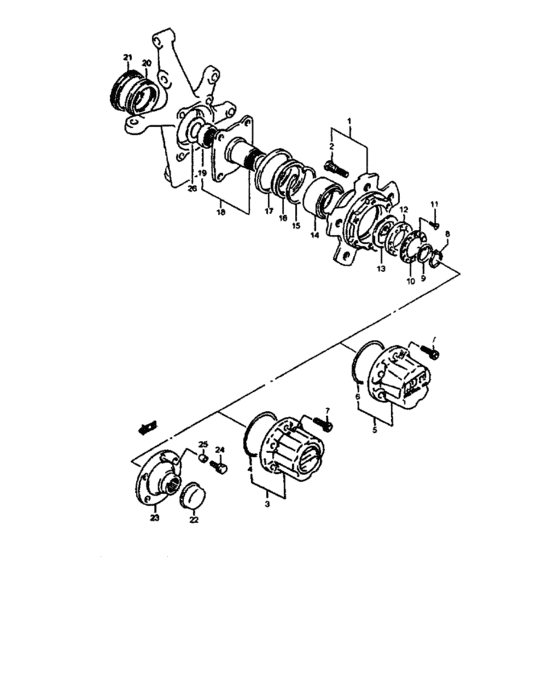

Front wheel hub (FRONT WHEEL HUB) |
| 01570-0825A-000 |
Bolt |
Front wheel hub (FRONT WHEEL HUB) |
| 01570-0825B-000 |
Bolt |
Front wheel hub (FRONT WHEEL HUB) |
| 02122-04083-000 |
SCREW |
Front wheel hub (FRONT WHEEL HUB) |
| 02122-0408A-000 |
SCREW |
Front wheel hub (FRONT WHEEL HUB) |
| 09119-12008-000 |
ボルト,12X38 |
Front wheel hub (FRONT WHEEL HUB) |
| 09119-12012-000 |
BOLT(12X38) |
Front wheel hub (FRONT WHEEL HUB) |
| 09263-28030-000 |
BEARING(28X35X16) |
Front wheel hub (FRONT WHEEL HUB) |
| 09283-54001-000 |
SEAL,OIL(54X69X7) |
Front wheel hub (FRONT WHEEL HUB) |
| 09286-64001-000 |
SEAL,OIL(64X76X7) |
Front wheel hub (FRONT WHEEL HUB) |
| 09286-75001-000 |
SEAL,OIL(75X83X4) |
Front wheel hub (FRONT WHEEL HUB) |
| 09289-48004-000 |
SEAL,OIL(48X70X17) |
Front wheel hub (FRONT WHEEL HUB) |
| 09381-68001-000 |
CIRCLIP |
Front wheel hub (FRONT WHEEL HUB) |
| 43241-80001-000 |
CAP,FR AXLE |
Front wheel hub (FRONT WHEEL HUB) |
| 43420-50820-000 |
HUB SET,FR WHL |
Front wheel hub (FRONT WHEEL HUB) |
| 43421-60A00-000 |
HUB FR WHEEL |
Front wheel hub (FRONT WHEEL HUB) |
| 43440-85C10-000 |
Spindle assy, front wheel |
Front wheel hub (FRONT WHEEL HUB) |
| 43461-60A01-000 |
NUT,FR WHL BRG LOCK |
Front wheel hub (FRONT WHEEL HUB) |
| 43461-60A30-000 |
Nut, bearing lock |
Front wheel hub (FRONT WHEEL HUB) |
| 43462-85C00-000 |
Bearing, wheel |
Front wheel hub (FRONT WHEEL HUB) |
| 43465-60A00-000 |
WASHER,FR WHEEL BRG |
Front wheel hub (FRONT WHEEL HUB) |
| 43465-60A30-000 |
Washer, wheel bearing |
Front wheel hub (FRONT WHEEL HUB) |
| 43466-60A00-000 |
WASHER,FR WHEEL BRG LOCK |
Front wheel hub (FRONT WHEEL HUB) |
| 43471-60A00-000 |
FLANGE AXLE SHAFT DRIVE |
Front wheel hub (FRONT WHEEL HUB) |
| 43471-80001-000 |
FLANGE,FR AXLE SHAFT DRIVE |
Front wheel hub (FRONT WHEEL HUB) |
| 43486-85C00-000 |
Circlip, wheel bearing |
Front wheel hub (FRONT WHEEL HUB) |
| 43800-60812-000 |
WHEEL LOCKING HUB SET (MANUAL) |
Front wheel hub (FRONT WHEEL HUB) |
| 43810-60A30-000 |
Hub assy, auto free wheel |
Front wheel hub (FRONT WHEEL HUB) |
| 43810-60A40-000 |
Hub assy, free wheel |
Front wheel hub (FRONT WHEEL HUB) |
| 43811-60A30-000 |
Screw |
Front wheel hub (FRONT WHEEL HUB) |
| 43811-65D00-000 |
BOLT,DRIVE FLANGE |
Front wheel hub (FRONT WHEEL HUB) |
| 43838-60A30-000 |
Ring |
Front wheel hub (FRONT WHEEL HUB) |
| 43841-80001-000 |
WASHER,LOCKING HUB CONE |
Front wheel hub (FRONT WHEEL HUB) |
| 44182-60A01-000 |
WASHER,FR SPINDLE THRUST |
Front wheel hub (FRONT WHEEL HUB) |
| 44183-60A00-000 |
WASHER,FR DRIVESHAFT THRUST |
Front wheel hub (FRONT WHEEL HUB) |
