SE419D

Suzuki VITARA · 2,559 parts · 114 categories
SE419D ×

← Back to categories

2,559 items

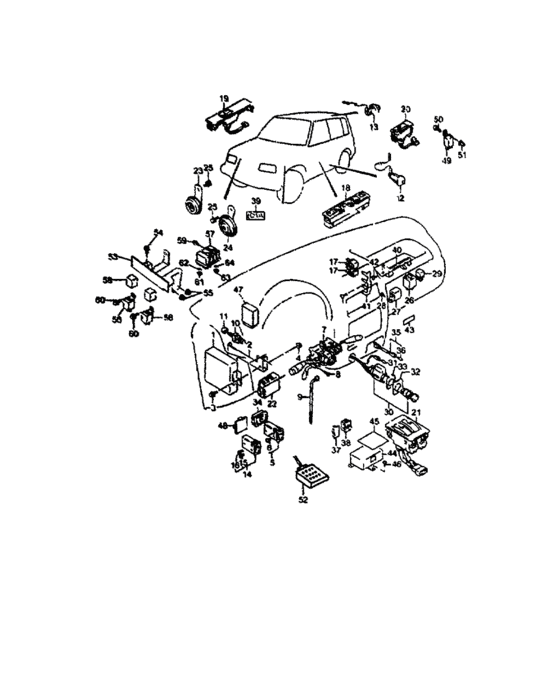

Electrical control (ELECTRICAL CONTROL) 74
#OEMPart name
1 35374-86CA0-000 Controller, assy
2 33924-86CA2-000 Bracket, epi controller
3 01550-06123-000 Bolt
3 01550-0612B-000 Bolt - Bolt, clamp
3 01550-0612A-000 Bolt
4 08316-10063-000 Nut
4 08316-1006B-000 NUT
5 37280-60G00-000 SWITCH ASSY,RR FOG LAMP
6 37399-60E10-000 BULB,SWITCH(GREEN)
7 37400-77EE1-000 SWITCH ASSY,COMB
7 37400-77EF1-000 SWITCH ASSY,COMB
8 02112-05123-000 Screw 5x12
8 02112-0512A-000 SCREW
9 36990-85C01-000 Clamp - L:235
10 37740-60D01-000 SWITCH ASSY,STOP LAMP
11 09140-10043-000 NUT - Nut, tie rod rh thread
12 37670-61A00-000 SWITCH ASSY,DOOR
14 37860-70F00-000 SWITCH ASSY,RR DEFOGGER
15 09471-12135-000 BULB(CLEAR)
17 31850-85C00-000 Relay assy, epi
18 37990-56B61-H2J Switch, power win. master
18 37990-56B62-H2J SWITCH ASSY,P/W MASTER
19 37995-56B60-H2J SWITCH ASSY,P/W SUB
20 37995-56B50-H2J SWITCH ASSY,P/W RR
21 37993-56B50-H2J SWITCH ASSY,P/W CTR
22 38700-85C10-000 Switch, power door lock
23 38500-85C01-000 Horn assy, high pitched
24 38500-85C11-000 Horn assy, low pitched
25 01570-08123-000 Bolt
25 01570-0812A-000 Bolt
26 38610-85C00-000 Relay assy, turn & 4 way
27 38590-85C00-000 Contro. assy, warning buzzer
28 03541-05163-000 Screw
28 03541-0516A-000 SCREW
30 39400-86821-000 LIGHTER ASSY,CIGARETTE
31 00000-A0008-500 Lampe
32 39471-60A00-000 RIM,CIGARETTE
33 39472-82000-000 WASHER,CIGARETTE LIGHTER
34 37950-60E01-000 SWITCH ASSY,MIRROR
35 36550-85C00-000 Lamp assy, ashtray illum.
36 09471-12091-000 BULB(12V1.4W G30)
37 37285-60E00-000 CAP,OPTION SW HOLE
38 35180-85C00-000 Switch, headlamp leveling
39 35186-70A01-000 LABEL,HEADLAMP INITIAL AIMING
40 38851-77E00-000 BRACKET,RELAY
41 38851-77E10-000 BRACKET,RELAY
42 03541-05123-000 Screw
42 03541-0512B-000 SCREW
43 36930-85C00-000 Tape, rr deffoger
44 38910-70E40-000 CONTROLLER ASSY,AIR BAG
45 38912-77E00-000 COVER,CONTROLLER
46 09129-06006-000 SCREW(6X18)
47 33970-86CA0-000 Relay assy, immobilizer
48 37955-60E00-000 CAP,MIRROR SW HOLE
49 38650-85C00-000 Relay, rear wiper
51 59918-85C00-000 Nut, protector
52 35346-86CA0-000 Keyboard, immobilizer
53 36737-86CB0-000 Bracket, main fuse
54 02142-06123-000 Screw - Screw, tilt up handle
54 02142-0612B-000 SCREW
54 02142-0612A-000 SCREW
56 31850-86CB0-000 Relay assy - Fuse box
57 35376-86CA0-000 Relay assy, pre/post
58 38861-86CA0-000 Cover, relay assy
61 08310-00053-000 Nut
61 08310-0005A-000 NUT
62 08321-01053-000 Lock washer
62 08321-0105B-000 WASHER,LOCK
62 08321-0105A-000 WASHER,LOCK
63 08310-00063-000 Nut
63 08310-0006B-000 NUT - Nut gear shift link rod
63 08310-0006A-000 NUT
64 08321-01063-000 Washer, lock
64 08321-0106A-000 WASHER,LOCK
