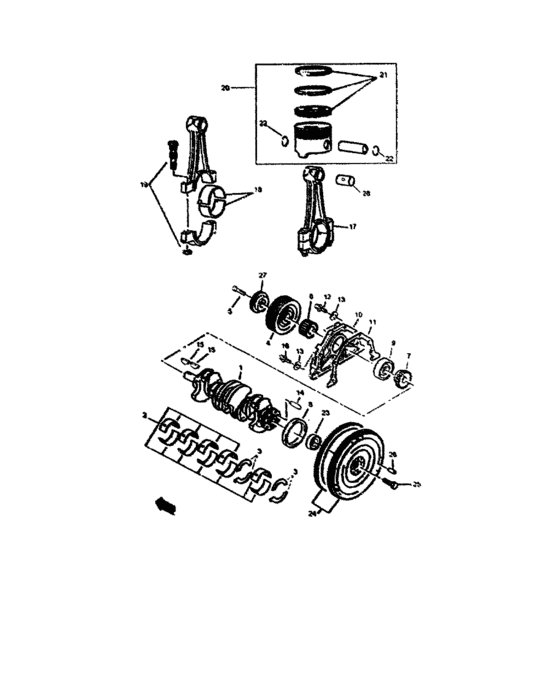

Crankshaft (CRANKSHAFT)
35
| # | OEM | Part name |
|---|
| 1 |
12221-86CT0-000 |
Cranckshaft |
| 2 |
12340-86CB0-000 |
Bearing set, crankshaft |
| 2 |
12340-86CA1-000 |
Bearing set, crankshaft |
| 3 |
12391-86CT0-000 |
Set of 2 half flange |
| 3 |
12391-86CT1-000 |
Set of 2 half flange |
| 3 |
12391-86CT2-000 |
Set of 2 half flange |
| 3 |
12351-86CT3-000 |
Bearing set, thrust |
| 4 |
12610-86CA0-000 |
Pulley, cranckshaft |
| 5 |
12636-86CA0-000 |
Pulley screw |
| 6 |
12631-86CA1-000 |
Gear |
| 7 |
12632-86CT0-000 |
Oil pump, gear |
| 8 |
11314-86CA1-000 |
Seal, oil |
| 9 |
11228-86CA3-000 |
Seal, oil |
| 10 |
11312-86CA0-000 |
Plate,oil seal |
| 11 |
11313-86CA0-000 |
Gasket |
| 12 |
11119-86CA1-000 |
Screw hrdl |
| 13 |
08321-86CT1-000 |
Spring washer |
| 15 |
12290-86CA0-000 |
Key |
| 16 |
11119-86CA2-000 |
Bolt |
| 17 |
12180-86CT0-000 |
Set of 8 half bearing |
| 18 |
12180-86CT1-000 |
Set of 8 half bearing |
| 19 |
00000-A0131-100 |
Bolt |
| 20 |
12111-86CT0-000 |
Set of 4 piston |
| 20 |
12111-86CT1-000 |
Set of 4 piston |
| 20 |
12111-86CT2-000 |
Set of 4 piston |
| 21 |
12140-86CT0-000 |
Set of 3 piston ring |
| 21 |
12140-86CT1-000 |
Set of 3 piston ring |
| 21 |
12140-86CT2-000 |
Set of 3 piston ring |
| 22 |
12161-86CT0-000 |
Circlip |
| 23 |
12623-86CA0-000 |
Bush, imput shaft |
| 24 |
12620-86CC0-000 |
Flywheel assy |
| 25 |
12625-86CB0-000 |
Bolt |
| 26 |
09202-86CA0-000 |
Key |
| 27 |
11031-86CA0-000 |
Pulley |
| 28 |
12162-86CT0-000 |
Bush, con, rod |
| OEM |
Part name |
Category |
| 00000-A0131-100 |
Bolt |
Crankshaft (CRANKSHAFT) |
| 08321-86CT1-000 |
Spring washer |
Crankshaft (CRANKSHAFT) |
| 09202-86CA0-000 |
Key |
Crankshaft (CRANKSHAFT) |
| 11031-86CA0-000 |
Pulley |
Crankshaft (CRANKSHAFT) |
| 11119-86CA1-000 |
Screw hrdl |
Crankshaft (CRANKSHAFT) |
| 11119-86CA2-000 |
Bolt |
Crankshaft (CRANKSHAFT) |
| 11228-86CA3-000 |
Seal, oil |
Crankshaft (CRANKSHAFT) |
| 11312-86CA0-000 |
Plate,oil seal |
Crankshaft (CRANKSHAFT) |
| 11313-86CA0-000 |
Gasket |
Crankshaft (CRANKSHAFT) |
| 11314-86CA1-000 |
Seal, oil |
Crankshaft (CRANKSHAFT) |
| 12111-86CT0-000 |
Set of 4 piston |
Crankshaft (CRANKSHAFT) |
| 12111-86CT1-000 |
Set of 4 piston |
Crankshaft (CRANKSHAFT) |
| 12111-86CT2-000 |
Set of 4 piston |
Crankshaft (CRANKSHAFT) |
| 12140-86CT0-000 |
Set of 3 piston ring |
Crankshaft (CRANKSHAFT) |
| 12140-86CT1-000 |
Set of 3 piston ring |
Crankshaft (CRANKSHAFT) |
| 12140-86CT2-000 |
Set of 3 piston ring |
Crankshaft (CRANKSHAFT) |
| 12161-86CT0-000 |
Circlip |
Crankshaft (CRANKSHAFT) |
| 12162-86CT0-000 |
Bush, con, rod |
Crankshaft (CRANKSHAFT) |
| 12180-86CT0-000 |
Set of 8 half bearing |
Crankshaft (CRANKSHAFT) |
| 12180-86CT1-000 |
Set of 8 half bearing |
Crankshaft (CRANKSHAFT) |
| 12221-86CT0-000 |
Cranckshaft |
Crankshaft (CRANKSHAFT) |
| 12290-86CA0-000 |
Key |
Crankshaft (CRANKSHAFT) |
| 12340-86CA1-000 |
Bearing set, crankshaft |
Crankshaft (CRANKSHAFT) |
| 12340-86CB0-000 |
Bearing set, crankshaft |
Crankshaft (CRANKSHAFT) |
| 12351-86CT3-000 |
Bearing set, thrust |
Crankshaft (CRANKSHAFT) |
| 12391-86CT0-000 |
Set of 2 half flange |
Crankshaft (CRANKSHAFT) |
| 12391-86CT1-000 |
Set of 2 half flange |
Crankshaft (CRANKSHAFT) |
| 12391-86CT2-000 |
Set of 2 half flange |
Crankshaft (CRANKSHAFT) |
| 12610-86CA0-000 |
Pulley, cranckshaft |
Crankshaft (CRANKSHAFT) |
| 12620-86CC0-000 |
Flywheel assy |
Crankshaft (CRANKSHAFT) |
| 12623-86CA0-000 |
Bush, imput shaft |
Crankshaft (CRANKSHAFT) |
| 12625-86CB0-000 |
Bolt |
Crankshaft (CRANKSHAFT) |
| 12631-86CA1-000 |
Gear |
Crankshaft (CRANKSHAFT) |
| 12632-86CT0-000 |
Oil pump, gear |
Crankshaft (CRANKSHAFT) |
| 12636-86CA0-000 |
Pulley screw |
Crankshaft (CRANKSHAFT) |
