SE419D

Suzuki VITARA · 2,559 parts · 114 categories
SE419D ×

← Back to categories

2,559 items

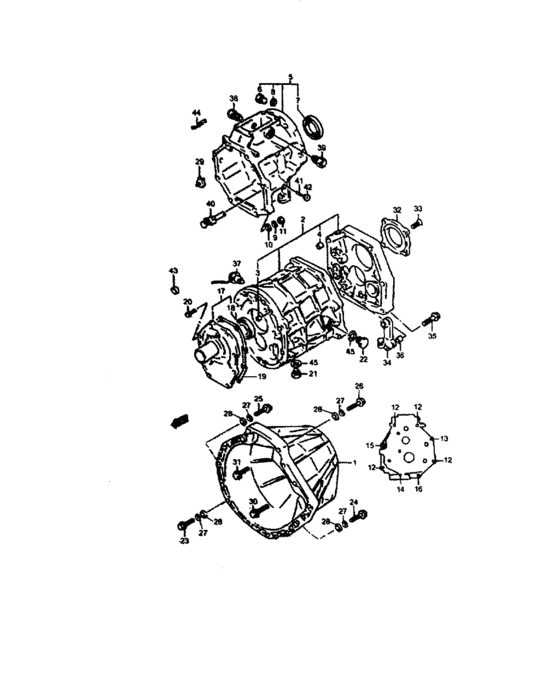

Case (CASE) 48
#OEMPart name
1 21341-86CB0-000 Housing, clutch
2 24700-78E50-000 CASE ASSY,T/M
3 24781-78E50-000 KNOCK,FR INTERMEDIATE
4 24782-70E50-000 Knock, rr intermediate
5 24730-78E50-000 Case, t/m rear
5 24730-78E80-000 CASE,T/M,RR
6 24734-78E50-000 PLUG,T/M REAR CASE
7 24732-78E50-000 SEAL,T/M MAIN SHAFT
8 24735-78E50-000 GASKET,T/M RR CASE
9 24723-78E50-000 WASHER,LOCK
10 24724-78E50-000 WASHER
11 24722-78E50-000 NUT,T/M CASE
12 24725-78E50-000 BOLT,T/M CASE NO.1
13 24726-78E50-000 BOLT,T/M CASE NO.2
14 24727-78E50-000 BOLT,T/M CASE NO.3
15 24728-78E50-000 BOLT,STUD NO.1
16 24729-78E50-000 BOLT,STUD NO.2
17 24740-78E50-000 RETAINER,INPUT SFT BRG
18 24742-78E50-000 SEAL,INPUT SHAFT OIL
19 24743-78E50-000 GASKET,RETAINER INPUT
20 24745-78E50-000 BOLT,RETAINER INPUT SFT
21 24791-78E50-000 Plug,Oil Drain
22 24792-78E50-000 PLUG,OIL LEVEL
23 21342-86CA0-000 Bolt
24 21345-86CA0-000 Bolt block & t/m case, upper r
26 07130-86CB0-000 Bolt
27 08321-A3110-300 Washer plain
28 08322-11103-000 WASHER 105X18X16
28 08322-0110A-000 WASHER - Washer, knuckle end
28 08322-0110B-000 WASHER - Washer, knuckle end
29 24733-78E50-000 Gutter
30 01550-10453-000 Bolt
30 01550-1045B-000 Bolt
31 01550-10503-000 Bolt - Bolt, rh
31 01550-1050B-000 Bolt
32 24137-78E50-000 PLATE,MAIN & COUNTER SFT BRG
33 24138-78E50-000 BOLT,COUNTERSHAFT PLATE
34 25340-78E50-000 STAY,REV LINK
35 25351-78E50-000 BOLT,REV LINK STAY
36 25352-78E50-000 KNOCK,REV LINK STAY
37 25354-78E50-000 SWITCH,REV SHIFT
38 25524-78E50-000 BOLT,RETURN SPRING LOW
39 25525-78E50-000 BOLT,RETURN SPRING REV
40 25540-78E50-000 CAM,5TH-REV INTERLOCK
41 25541-78E50-000 PIN,INTERLOCK CAM
42 25542-78E50-000 PLUG,INTERLOCK CAM PIN
43 24715-78E50-000 PLUG
44 36990-85C30-000 Clamp, engine harness
