Search › Model › SE419D
SE419D

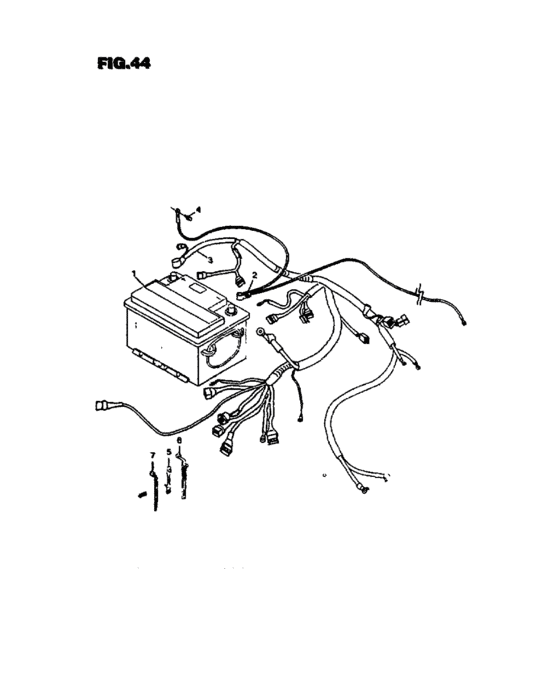

Battery (BATTERY) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-86CB0-R00 | Battery assy |
| 2 | 33850-86CA0-000 | Cable comp. bat, gnd |
| 3 | 36650-86CF0-000 | Harness assy, wrg engine |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) |
| 5 | 00009-00000-000 | Clamp,wire electro fan |
| 6 | 09407-12404-000 | CLAMP(L:140) |
| 7 | 36990-85C01-000 | Clamp - L:235 |
| OEM | Part name | Category |
|---|---|---|
| 00009-00000-000 | Clamp,wire electro fan | Battery (BATTERY) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09407-12404-000 | CLAMP(L:140) | Battery (BATTERY) |
| 33610-86CB0-R00 | Battery assy | Battery (BATTERY) |
| 33850-86CA0-000 | Cable comp. bat, gnd | Battery (BATTERY) |
| 36650-86CF0-000 | Harness assy, wrg engine | Battery (BATTERY) |
| 36990-85C01-000 | Clamp - L:235 | Battery (BATTERY) |
