Search › Model › SE419D
SE419D

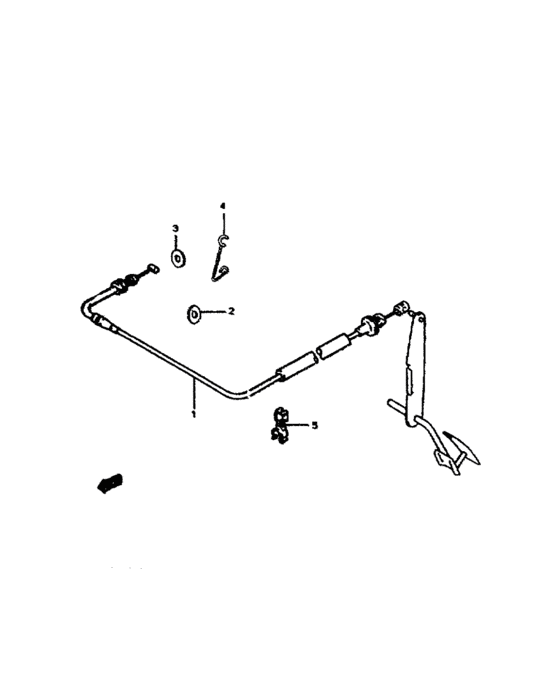

Accel cable (ACCEL CABLE) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 15910-86CB0-000 | Cable assy, accel |
| 2 | 15926-86CA0-000 | Grommet, accel. cable |
| 3 | 15927-86CA0-000 | Washer stopper |
| 4 | 15928-86CA0-000 | Spring, situation bushing |
| 5 | 23916-85C00-000 | CLAMP,CLUTCH CABLE |
| OEM | Part name | Category |
|---|---|---|
| 15910-86CB0-000 | Cable assy, accel | Accel cable (ACCEL CABLE) |
| 15926-86CA0-000 | Grommet, accel. cable | Accel cable (ACCEL CABLE) |
| 15927-86CA0-000 | Washer stopper | Accel cable (ACCEL CABLE) |
| 15928-86CA0-000 | Spring, situation bushing | Accel cable (ACCEL CABLE) |
| 23916-85C00-000 | CLAMP,CLUTCH CABLE | Accel cable (ACCEL CABLE) |
