SE416

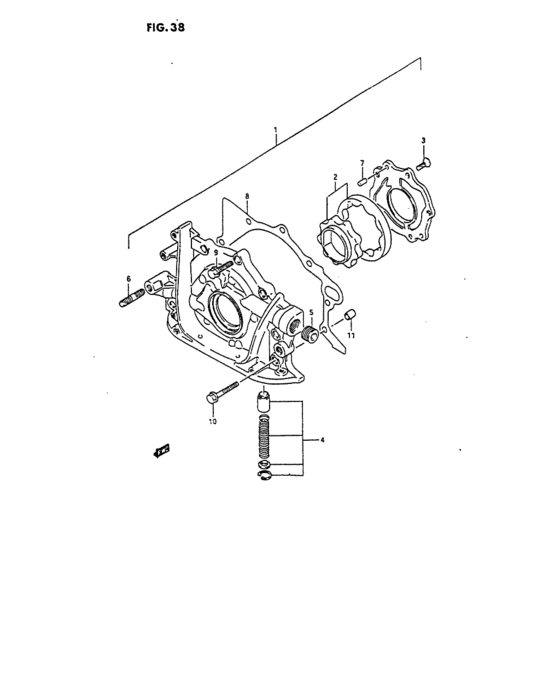

Oil pump (OIL PUMP) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-85C00-000 | Pump set, oil |
| 2 | 16130-60A00-000 | ROTOR SET,OIL PUMP |
| 3 | 09126-06007-000 | SCREW(6X14) - Bolt |
| 4 | 16150-60A00-000 | Valve set, relief - Valve set, oil pump relief |
| 4 | 16150-60A20-000 | VALVE SET,OIL PUMP RELIEF |
| 5 | 09246-08002-000 | PLUG |
| 6 | 01411-08203-000 | Stud 8x20 - Stud bolt |
| 6 | 01411-0820B-000 | BOLT,STUD |
| 7 | 04221-06129-000 | PIN |
| 8 | 16119-85C00-000 | Gasket, oil pump case |
| 9 | 01550-06253-000 | Bolt (6x25) |
| 9 | 01550-0625B-000 | Bolt - Bolt, head cover |
| 9 | 01550-0625A-000 | Bolt |
| 10 | 01550-06353-000 | Bolt |
| 10 | 01550-0635B-000 | Bolt |
| 10 | 01550-0635A-000 | Bolt |
| 11 | 04211-A0910-900 | Coupille centrage |
| OEM | Part name | Category |
|---|---|---|
| 01411-08203-000 | Stud 8x20 - Stud bolt | Oil pump (OIL PUMP) |
| 01411-0820B-000 | BOLT,STUD | Oil pump (OIL PUMP) |
| 01550-06253-000 | Bolt (6x25) | Oil pump (OIL PUMP) |
| 01550-0625A-000 | Bolt | Oil pump (OIL PUMP) |
| 01550-0625B-000 | Bolt - Bolt, head cover | Oil pump (OIL PUMP) |
| 01550-06353-000 | Bolt | Oil pump (OIL PUMP) |
| 01550-0635A-000 | Bolt | Oil pump (OIL PUMP) |
| 01550-0635B-000 | Bolt | Oil pump (OIL PUMP) |
| 04211-A0910-900 | Coupille centrage | Oil pump (OIL PUMP) |
| 04221-06129-000 | PIN | Oil pump (OIL PUMP) |
| 09126-06007-000 | SCREW(6X14) - Bolt | Oil pump (OIL PUMP) |
| 09246-08002-000 | PLUG | Oil pump (OIL PUMP) |
| 16100-85C00-000 | Pump set, oil | Oil pump (OIL PUMP) |
| 16119-85C00-000 | Gasket, oil pump case | Oil pump (OIL PUMP) |
| 16130-60A00-000 | ROTOR SET,OIL PUMP | Oil pump (OIL PUMP) |
| 16150-60A00-000 | Valve set, relief - Valve set, oil pump relief | Oil pump (OIL PUMP) |
| 16150-60A20-000 | VALVE SET,OIL PUMP RELIEF | Oil pump (OIL PUMP) |
