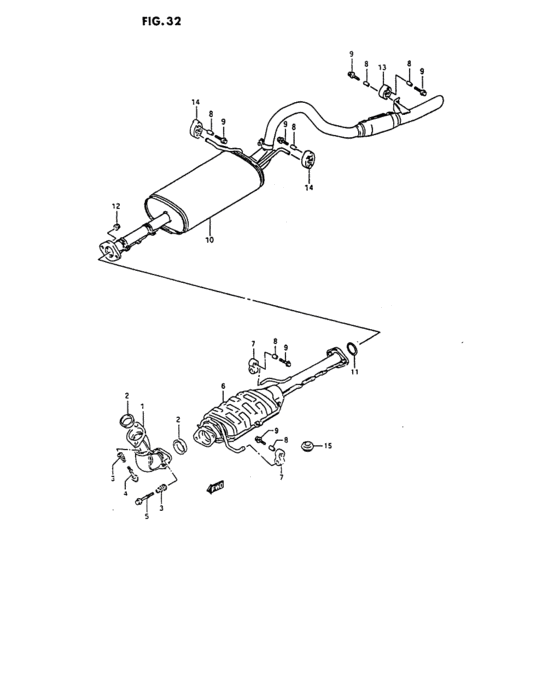

Muffler (4 VALVE:5DR)
24
| # | OEM | Part name |
|---|
| 1 |
14190-58B02-000 |
PIPE,EXH NO.1 |
| 2 |
14183-58B02-000 |
Ring,seal exh pipe |
| 2 |
14183-65D00-000 |
RING,SEAL EXH PIPE |
| 2 |
14183-58B10-000 |
RING,SEAL EXH PIPE |
| 3 |
14492-85C00-000 |
Spring |
| 4 |
09119-10041-000 |
BOLT(10X65) |
| 5 |
14493-85C00-000 |
Bolt - 10x65 |
| 6 |
14250-58B01-000 |
Pipe, exhaust no. 2 |
| 6 |
14250-58BVV-000 |
PIPE,EXH NO.2 |
| 6 |
14250-58B30-000 |
PIPE,EXH NO.2 |
| 7 |
14281-71C00-000 |
MOUNTING |
| 7 |
14281-71C01-000 |
MOUNTING,MUF |
| 8 |
09180-A0812-900 |
Spacer, mtg |
| 9 |
01550-08353-000 |
Bolt, rear |
| 9 |
01550-0835B-000 |
Bolt |
| 9 |
01550-0835A-000 |
Bolt |
| 10 |
14300-77EA1-000 |
MUFFLER,EXH |
| 10 |
14300-85C20-000 |
Muffler |
| 11 |
14182-58B10-000 |
GASKET,MUFFLER |
| 12 |
14494-85C00-000 |
Nut |
| 13 |
14281-85C00-000 |
Mounting |
| 14 |
14281-58B00-000 |
MOUNTING |
| 14 |
14281-58B01-000 |
MOUNTING,MUF |
| 15 |
09250-25007-000 |
CAP(OD:25.0) |
| OEM |
Part name |
Category |
| 01550-08353-000 |
Bolt, rear |
Muffler (4 VALVE:5DR) |
| 01550-0835A-000 |
Bolt |
Muffler (4 VALVE:5DR) |
| 01550-0835B-000 |
Bolt |
Muffler (4 VALVE:5DR) |
| 09119-10041-000 |
BOLT(10X65) |
Muffler (4 VALVE:5DR) |
| 09180-A0812-900 |
Spacer, mtg |
Muffler (4 VALVE:5DR) |
| 09250-25007-000 |
CAP(OD:25.0) |
Muffler (4 VALVE:5DR) |
| 14182-58B10-000 |
GASKET,MUFFLER |
Muffler (4 VALVE:5DR) |
| 14183-58B02-000 |
Ring,seal exh pipe |
Muffler (4 VALVE:5DR) |
| 14183-58B10-000 |
RING,SEAL EXH PIPE |
Muffler (4 VALVE:5DR) |
| 14183-65D00-000 |
RING,SEAL EXH PIPE |
Muffler (4 VALVE:5DR) |
| 14190-58B02-000 |
PIPE,EXH NO.1 |
Muffler (4 VALVE:5DR) |
| 14250-58B01-000 |
Pipe, exhaust no. 2 |
Muffler (4 VALVE:5DR) |
| 14250-58B30-000 |
PIPE,EXH NO.2 |
Muffler (4 VALVE:5DR) |
| 14250-58BVV-000 |
PIPE,EXH NO.2 |
Muffler (4 VALVE:5DR) |
| 14281-58B00-000 |
MOUNTING |
Muffler (4 VALVE:5DR) |
| 14281-58B01-000 |
MOUNTING,MUF |
Muffler (4 VALVE:5DR) |
| 14281-71C00-000 |
MOUNTING |
Muffler (4 VALVE:5DR) |
| 14281-71C01-000 |
MOUNTING,MUF |
Muffler (4 VALVE:5DR) |
| 14281-85C00-000 |
Mounting |
Muffler (4 VALVE:5DR) |
| 14300-77EA1-000 |
MUFFLER,EXH |
Muffler (4 VALVE:5DR) |
| 14300-85C20-000 |
Muffler |
Muffler (4 VALVE:5DR) |
| 14492-85C00-000 |
Spring |
Muffler (4 VALVE:5DR) |
| 14493-85C00-000 |
Bolt - 10x65 |
Muffler (4 VALVE:5DR) |
| 14494-85C00-000 |
Nut |
Muffler (4 VALVE:5DR) |
