SE416

Suzuki VITARA · 5,475 parts · 240 categories
SE416 ×

← Back to categories

5,475 items

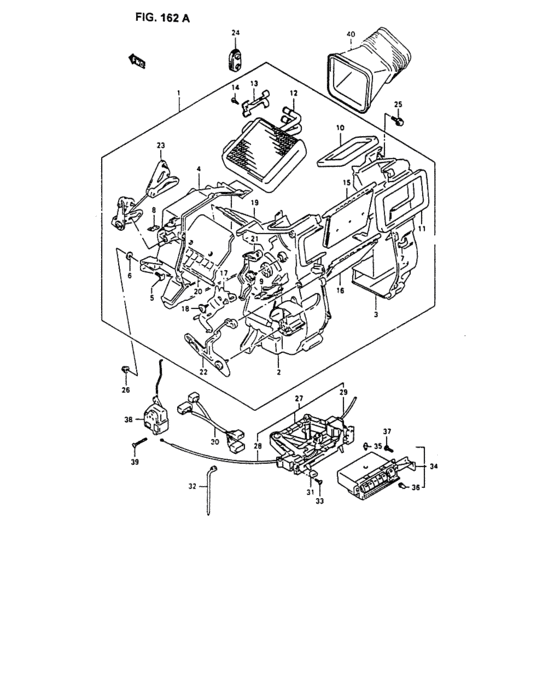

Heater - my98 (LHD - MY98) 44
#OEMPart name
1 74019-85C00-000 Heater assy
1 74019-86C00-000 Heater assy
2 74111-85C10-000 Case, heater
3 74112-85C10-000 Case, heater
4 74113-85C10-000 Case, heater rr
5 74115-85C00-000 Bolt
6 74116-85C00-000 Gasker
7 74133-85C00-000 Spring, holder
8 74151-85C00-000 Clamp
10 74161-85C00-000 Packing, dfr
11 74162-85C00-000 Packing, vent
12 74120-85C10-000 Core, heater
13 74199-85C10-000 Clamp
14 03111-05123-000 Screw - Tapping screw
14 03111-0512A-000 SCREW
15 74171-85C10-000 Damper, v/d
16 74172-85C00-000 Damper, heat
17 74176-85C10-000 Lever, control
18 74183-85C00-000 Bolt and washer, lever
19 74173-85C10-000 Damper, a/m no. 1
20 74174-85C10-000 Damper, a/m no. 2
21 74170-85C10-000 Lever assy, vent
22 74180-85C10-000 Lever assy, heat
23 74190-85C10-000 Lever assy, temp
24 74812-82030-000 GROMMET,HTR
25 01550-06123-000 Bolt
25 01550-0612B-000 Bolt - Bolt, clamp
25 01550-0612A-000 Bolt
26 08310-10083-000 Nut starting motor
27 74400-78E50-000 LEVER ASSY,HTR CONT
28 74452-78E10-000 CABLE,TEMP CONTROL L:490
29 74453-85C70-000 CABLE,FRESH AIR CONTROL
30 74436-78E60-000 HARNESS,MODE CONTROL SW
31 74461-78E00-5PK KNOB,CONTROL LEVER
32 36990-85C10-000 Clamp, wiper harness
33 03511-05165-000 Screw
33 03511-0516A-000 SCREW
34 74510-63G01-5PK SWITCH,MODE CONTROL
34 74510-63G11-5PK SWITCH,MODE CONTROL
35 74513-63G00-000 BULB,0.7W
36 74514-63G00-000 BULB,0.6W
38 95653-78E10-000 ACTUATOR,MODE
39 95911-63G00-000 SCREW,ACTUATOR
40 74620-60A10-000 DUCT,HEATER
