SE416

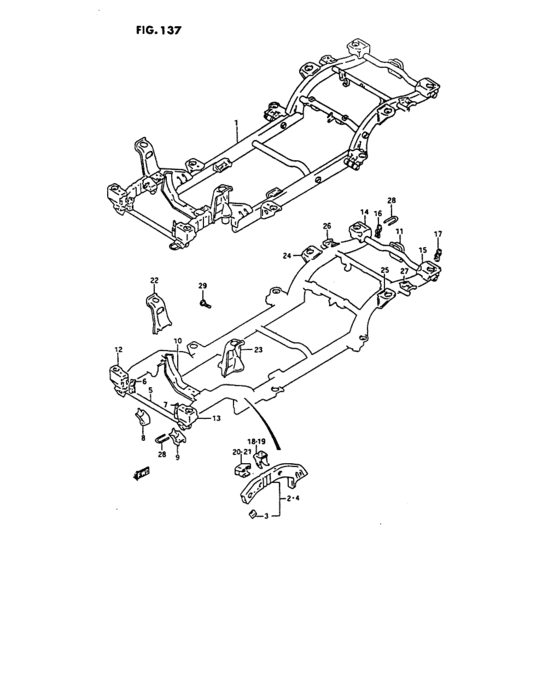

Chassis frame (3DR) 38
| # | OEM | Part name |
|---|---|---|
| 1 | 57000-85C21-000 | Frame assy |
| 1 | 57000-85C30-000 | Frame assy |
| 1 | 57000-86CA0-000 | Frame assy |
| 2 | 57110-60A21-000 | MEMBER,SIDE FRAME FR,R |
| 2 | 57110-60A31-000 | MEMBER,SIDE FRAME FR,R |
| 3 | 57942-60A00-000 | HOOK,SHIPPING FR |
| 4 | 57160-60A20-000 | MEMBER,SIDE FRAME FR,L |
| 4 | 57160-60A30-000 | MEMBER,SIDE FRAME FR,L |
| 5 | 57211-60A20-000 | CROSSMEMBER,1ST |
| 6 | 57551-60A00-000 | BRACKET,RDTR STAY,R |
| 7 | 57561-60A00-000 | BRACKET,RDTR STAY,L |
| 8 | 57710-60A00-000 | Hanger, fr spnsn arm rh |
| 8 | 57710-60A10-000 | HANGER,FR SPNSN ARM,R |
| 8 | 57710-80A10-000 | Hanger, fr spnsn arm rh |
| 9 | 57720-60A10-000 | ハンガ,フロントサスペンションアーム,レフト |
| 9 | 57720-60A00-000 | HANGER,FR SPNSN ARM,L |
| 10 | 57220-56B20-000 | Crossmember, 2nd |
| 11 | 57260-60A10-000 | クロスメンバ,テール |
| 11 | 57260-60A11-000 | CROSSMEMBER,TAIL |
| 12 | 57310-60A01-000 | BRACKET,1ST MOUNTING,R |
| 13 | 57320-60A01-000 | BRACKET,1ST MOUNTING,L |
| 14 | 57370-60A00-000 | BRACKET,4TH MOUNTING,R |
| 15 | 57380-60A00-000 | BRACKET,4TH MOUNTING,L |
| 16 | 57481-60A00-000 | BRACKET,RR BUMPER SIDE,R |
| 17 | 57482-60A00-000 | BRACKET,RR BUMPER SIDE,L |
| 18 | 57511-60A00-000 | BRACKET,ENG MTG,R |
| 19 | 57521-60A00-000 | BRACKET,ENG MTG,L |
| 20 | 57620-60A00-000 | BRACKET,FR DIFF MTG,R |
| 21 | 57630-60A00-000 | BRACKET,FR DIFF MTG,L |
| 22 | 57730-56B10-000 | BRACKET,FR STRUT,R |
| 23 | 57740-56B00-000 | BRACKET,FR STRUT,L |
| 24 | 57810-77E00-000 | BRACKET,RR COIL SPRING,R |
| 25 | 57820-77E00-000 | BRACKET,RR COIL SPRING,L |
| 26 | 57831-56B00-000 | BRACKET,RR SHOCK ABSORBER,R |
| 27 | 57841-56B00-000 | BRACKET,RR SHOCK ABSORBER,L |
| 28 | 57941-60A00-000 | HOOK,TOWING |
| 29 | 09119-05018-000 | BOLT(8X35) |
| 29 | 59971-85C00-000 | Bolt/stud |
| OEM | Part name | Category |
|---|---|---|
| 09119-05018-000 | BOLT(8X35) | Chassis frame (3DR) |
| 57000-85C21-000 | Frame assy | Chassis frame (3DR) |
| 57000-85C30-000 | Frame assy | Chassis frame (3DR) |
| 57000-86CA0-000 | Frame assy | Chassis frame (3DR) |
| 57110-60A21-000 | MEMBER,SIDE FRAME FR,R | Chassis frame (3DR) |
| 57110-60A31-000 | MEMBER,SIDE FRAME FR,R | Chassis frame (3DR) |
| 57160-60A20-000 | MEMBER,SIDE FRAME FR,L | Chassis frame (3DR) |
| 57160-60A30-000 | MEMBER,SIDE FRAME FR,L | Chassis frame (3DR) |
| 57211-60A20-000 | CROSSMEMBER,1ST | Chassis frame (3DR) |
| 57220-56B20-000 | Crossmember, 2nd | Chassis frame (3DR) |
| 57260-60A10-000 | クロスメンバ,テール | Chassis frame (3DR) |
| 57260-60A11-000 | CROSSMEMBER,TAIL | Chassis frame (3DR) |
| 57310-60A01-000 | BRACKET,1ST MOUNTING,R | Chassis frame (3DR) |
| 57320-60A01-000 | BRACKET,1ST MOUNTING,L | Chassis frame (3DR) |
| 57370-60A00-000 | BRACKET,4TH MOUNTING,R | Chassis frame (3DR) |
| 57380-60A00-000 | BRACKET,4TH MOUNTING,L | Chassis frame (3DR) |
| 57481-60A00-000 | BRACKET,RR BUMPER SIDE,R | Chassis frame (3DR) |
| 57482-60A00-000 | BRACKET,RR BUMPER SIDE,L | Chassis frame (3DR) |
| 57511-60A00-000 | BRACKET,ENG MTG,R | Chassis frame (3DR) |
| 57521-60A00-000 | BRACKET,ENG MTG,L | Chassis frame (3DR) |
| 57551-60A00-000 | BRACKET,RDTR STAY,R | Chassis frame (3DR) |
| 57561-60A00-000 | BRACKET,RDTR STAY,L | Chassis frame (3DR) |
| 57620-60A00-000 | BRACKET,FR DIFF MTG,R | Chassis frame (3DR) |
| 57630-60A00-000 | BRACKET,FR DIFF MTG,L | Chassis frame (3DR) |
| 57710-60A00-000 | Hanger, fr spnsn arm rh | Chassis frame (3DR) |
| 57710-60A10-000 | HANGER,FR SPNSN ARM,R | Chassis frame (3DR) |
| 57710-80A10-000 | Hanger, fr spnsn arm rh | Chassis frame (3DR) |
| 57720-60A00-000 | HANGER,FR SPNSN ARM,L | Chassis frame (3DR) |
| 57720-60A10-000 | ハンガ,フロントサスペンションアーム,レフト | Chassis frame (3DR) |
| 57730-56B10-000 | BRACKET,FR STRUT,R | Chassis frame (3DR) |
| 57740-56B00-000 | BRACKET,FR STRUT,L | Chassis frame (3DR) |
| 57810-77E00-000 | BRACKET,RR COIL SPRING,R | Chassis frame (3DR) |
| 57820-77E00-000 | BRACKET,RR COIL SPRING,L | Chassis frame (3DR) |
| 57831-56B00-000 | BRACKET,RR SHOCK ABSORBER,R | Chassis frame (3DR) |
| 57841-56B00-000 | BRACKET,RR SHOCK ABSORBER,L | Chassis frame (3DR) |
| 57941-60A00-000 | HOOK,TOWING | Chassis frame (3DR) |
| 57942-60A00-000 | HOOK,SHIPPING FR | Chassis frame (3DR) |
| 59971-85C00-000 | Bolt/stud | Chassis frame (3DR) |
