SE413

Suzuki SIDEKICK · 3,121 parts · 98 categories
SE413 ×

← Back to categories

3,121 items

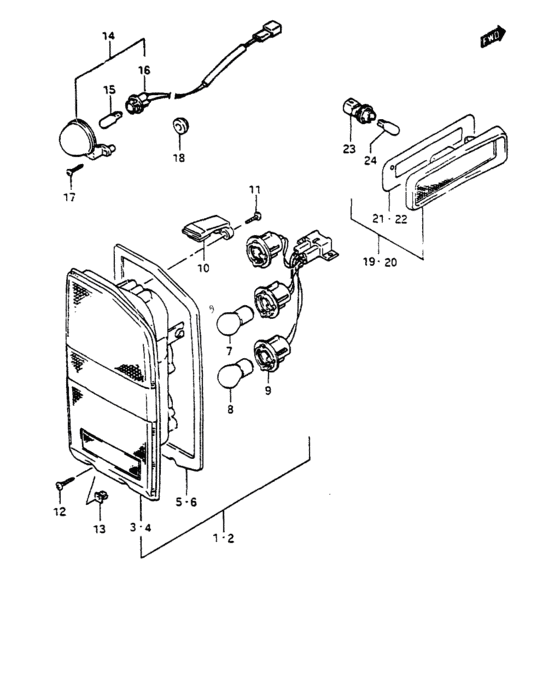

Rear lamp (REAR LAMP) 35
#OEMPart name
1 35603-60A10-000 Lamp, rear combination rh
1 35603-60A11-000 Lamp, rear combination rh
2 35604-60A10-000 Lamp, rear combination lh
3 35650-60A00-000 ランプユニット,リヤコンビネーション,ライト
3 35650-60A22-000 LAMP UNIT,RR COMB,R
4 35670-60A00-000 ランプユニット,リヤコンビネーション,レフト
4 35670-60A21-000 LAMP UNIT,RR COMB,L
5 35653-60A00-000 GASKET,R
6 35673-60A00-000 GASKET,L
7 09471-12068-000 BULB(12V32/3CP)
8 09471-12065-000 BULB(12V27W)
9 35655-60A00-000 SOCKET,RR COMB LAMP
10 35659-60A00-000 CLAMP,R
11 03511-04146-000 スクリュ
11 03512-04149-000 SCREW
12 03142-04255-000 スクリュ
12 03142-04259-000 SCREW
13 09148-04021-000 NUT
14 35910-60A10-000 Lamp assy, license
14 35910-60A00-000 Lamp assy,license
15 09471-12099-000 BULB(12V3CP)
16 35918-60A10-000 Socket, license lamp
16 35918-60A00-000 SOCKET,LICENSE LAMP
17 03511-04163-000 Screw
17 03511-0416A-000 SCREW
18 09308-06009-000 GROMMET
19 36530-60A00-000 Lamp assy, rear side rh
19 36530-56B00-000 LAMP&RR ASSY,RR SIDE,R
20 36540-60A00-000 Lamp assy, rear side lh
20 36540-56B00-000 LAMP&RR ASSY,RR SIDE,L
21 36512-60A00-000 Gasket, rh
21 36532-56B00-000 Gasket,rr side marker lamp
22 36522-60A00-000 Gasket, lh
23 36518-60A00-000 SOCKET,MARKER LAMP
24 09471-12094-000 BULB(12V2CP)
