| 01184-08206-000 |
Bolt |

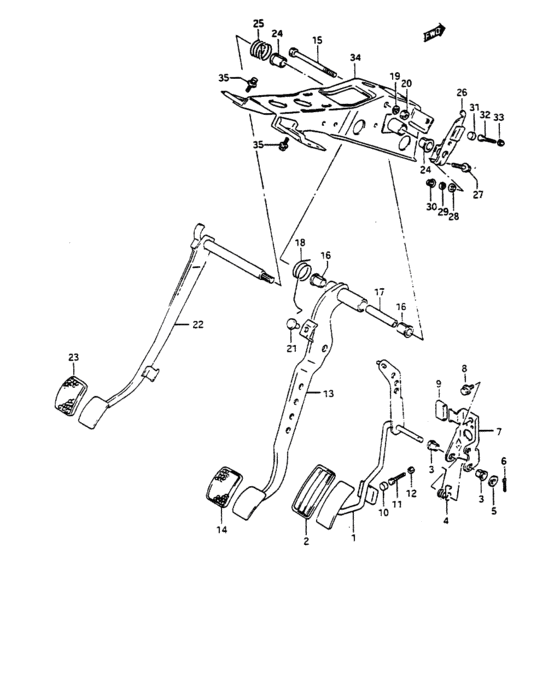

Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 01517-08356-000 |
Bolt, front |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 01550-0835A-000 |
Bolt |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 01550-0835B-000 |
Bolt |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 01580-0820A-000 |
Bolt |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 04111-20208-000 |
20 x 20 cotter - Cotter pin |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 04111-2020A-000 |
PIN - Cotter pin, rod end |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-0006A-000 |
NUT |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-0008B-000 |
NUT |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-0010A-000 |
NUT |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-0010B-000 |
NUT |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-11066-000 |
Nut |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-12086-000 |
NUT |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08310-12106-000 |
Nut |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08321-0108A-000 |
WASHER,LOCK |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08321-0108B-000 |
WASHER,LOCK |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08321-0110A-000 |
WASHER,LOCK |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08321-0110B-000 |
WASHER,LOCK - Washer, knuckle end |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08321-31106-000 |
Washer lock |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08322-0108A-000 |
WASHER |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08322-0108B-000 |
WASHER |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 08322-11086-000 |
Washer |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09100-06133-000 |
Bolt - Bolt (6x31) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09100-10069-000 |
BOLT(10X96) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09128-06058-000 |
SCREW(6X10) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09160-09007-000 |
Washer 9.5x20x1 |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09160-09016-000 |
WASHER(9.5X20X1) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09180-10118-000 |
SPACER(10.1X13X81) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09251-09002-000 |
CAP(OD:13.6) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09251-09008-000 |
Cap(Od:13.6) |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09306-13004-000 |
BUSH |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09307-09001-000 |
BUSH |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09307-13004-000 |
BUSHING |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09307-13005-000 |
BUSH - Bushing |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09307-16001-000 |
BUSH |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09321-06026-000 |
CUSHION |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09448-21003-000 |
SPRING |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09448-21005-000 |
SPRING |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09448-25025-000 |
Spring |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 09448-26006-000 |
Spring |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49410-60810-000 |
Pedal set,accelerator |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49410-60A00-000 |
Pedal, accelerator |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49416-60A00-000 |
CUSHION,ACCEL PEDAL RETURN |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49451-80100-000 |
PAD,ACCELERATOR PEDAL |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49511-60A00-000 |
ブラケット,アクセレレータ |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49511-65D00-000 |
BRACKET,ACCELERATOR |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49610-60A00-000 |
Pedal, brake |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49610-60A01-000 |
Pedal, brake |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49710-60A10-000 |
Bracket, pedal |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49710-60A62-000 |
Bracket, pedal |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49751-58J00-000 |
PAD,PEDAL |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49751-79001-000 |
Pad, pedal |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49810-60A00-000 |
Pedal, clutch |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49810-60A30-000 |
PEDAL,CLUTCH |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
| 49820-60A00-000 |
ARM,CLUTCH PEDAL SHAFT |
Pedal and pedal bracket (PEDAL AND PEDAL BRACKET) |
