Search › Model › SE413
SE413

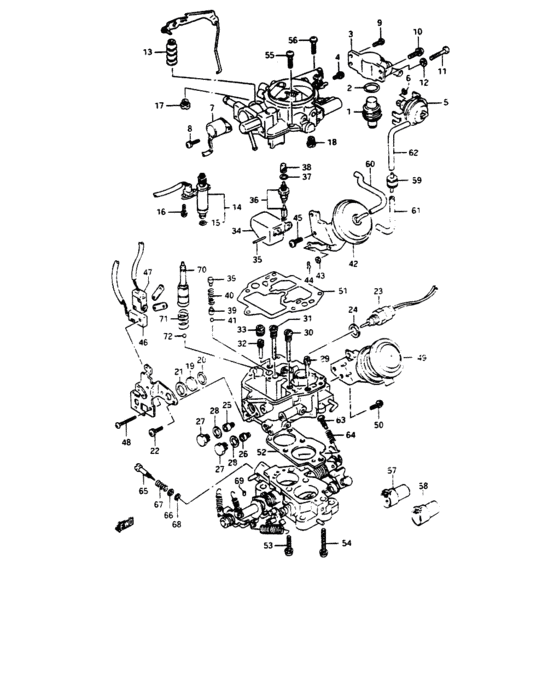

Carburetor (CARBURETOR) 96
| # | OEM | Part name |
|---|---|---|
| 0 | 13200-63AC0-000 | Carburetor assy |
| 1 | 13228-82080-000 | ELEMENT,THERMO |
| 2 | 13229-82080-000 | SEAL,THERMO ELEMENT |
| 3 | 13227-82080-000 | HOLDER,THERMO ELEMENT |
| 4 | 02112-35126-000 | Screw |
| 4 | 02112-3512A-000 | SCREW |
| 5 | 13235-63A00-000 | Piston assy, choke |
| 6 | 13374-82000-000 | E ring |
| 6 | 09383-02003-000 | E RING |
| 7 | 13220-63A00-000 | Solenoid, switch vent |
| 8 | 02112-34106-000 | Screw |
| 8 | 02112-3410A-000 | SCREW |
| 9 | 13377-82000-000 | Screw |
| 9 | 13225-82100-000 | SCREW |
| 10 | 02112-36106-000 | Screw |
| 10 | 02112-3610A-000 | SCREW |
| 11 | 13234-82000-000 | Screw |
| 12 | 08321-31066-000 | Lock washer |
| 12 | 08321-0106A-000 | WASHER,LOCK |
| 13 | 13233-83150-000 | BOOT,PUMP |
| 14 | 13240-63A00-000 | Valve assy, solenoid |
| 15 | 13241-82000-000 | O ring,solenoid valve |
| 16 | 02112-74106-000 | Screw |
| 16 | 02112-7410B-000 | SCREW |
| 17 | 13265-83060-000 | Bleeder, slow air - #140 |
| 18 | 13266-83060-000 | Bleeder, slow air - #70 |
| 19 | 13251-82000-000 | Gauge, level |
| 20 | 13252-82000-000 | O ring |
| 21 | 13267-82000-000 | Gasket, level gauge |
| 21 | 13267-82000-H17 | Gasket, level gauge |
| 22 | 02112-35086-000 | Screw |
| 22 | 02112-3508B-000 | SCREW |
| 23 | 13261-63A00-000 | Valve, solenoid |
| 24 | 13262-82000-000 | WASHER,SOLENOID VALVE |
| 25 | 09491-86003-000 | Jet, main - #86 |
| 26 | 09491-24025-000 | Jet, main - #123 |
| 27 | 13254-82000-000 | Plug, drain |
| 28 | 13363-82000-000 | GASKET,DRAIN PLUG |
| 29 | 09492-70006-000 | Jet, slow - #70 |
| 30 | 13259-83060-000 | Bleeder, main air - #70 |
| 31 | 13258-63A00-000 | Bleeder, main air - #60 |
| 32 | 09492-51004-000 | Jet, slow - #51 |
| 33 | 13266-82000-000 | Bleeder, slow air - #100 |
| 34 | 13319-82000-000 | FLOAT |
| 35 | 13323-82000-000 | Pin, float |
| 36 | 13332-82000-000 | VALVE ASSY,NEEDLE |
| 37 | 13364-82000-000 | GASKET,NEEDLE VALVE |
| 38 | 13324-82000-000 | Filter,needle valve |
| 39 | 13321-82000-000 | WEIGHT,INJECTOR |
| 40 | 13322-82000-000 | Spring,injector |
| 41 | 13325-82000-000 | BALL |
| 42 | 13330-63A00-000 | Chamber assy, diaphragm |
| 43 | 13372-86060-000 | Washer |
| 43 | 08322-0104B-000 | WASHER - Washer, headlamp |
| 43 | 08322-0104A-000 | WASHER - Washer, cam rocker arm |
| 43 | 08322-01043-000 | Washer |
| 44 | 13371-82000-000 | Cotter pin |
| 46 | 13337-63A00-000 | Switch, idle micro |
| 46 | 13337-83060-000 | SWITCH,IDLE MICRO |
| 47 | 13338-63A00-000 | Switch, wot micro |
| 48 | 13375-82000-000 | Screw |
| 49 | 13350-83050-000 | Actuator assy |
| 51 | 13361-63A00-000 | Gasket, choke chamber |
| 52 | 13362-82000-000 | Insulator |
| 52 | 13362-82000-H17 | INSULATOR,NA |
| 53 | 13382-83060-000 | Screw |
| 53 | 02112-0616A-000 | SCREW |
| 53 | 02112-0616B-000 | SCREW |
| 53 | 02112-06163-000 | Screw |
| 54 | 13384-83060-000 | Screw |
| 54 | 02112-0635B-000 | SCREW |
| 54 | 02112-06353-000 | Screw |
| 55 | 02112-35166-000 | Screw |
| 55 | 02112-3516A-000 | SCREW |
| 56 | 02112-35206-000 | Screw |
| 56 | 02112-3520B-000 | SCREW |
| 57 | 13395-86060-000 | Connector, 6p |
| 58 | 13385-86060-000 | Connector, 4p |
| 59 | 13318-82020-000 | VALVE,DELAY |
| 60 | 13423-63A00-000 | Hose |
| 61 | 13422-83050-000 | Hose |
| 61 | 13316-82000-000 | Hose |
| 62 | 13421-83050-000 | Hose |
| 62 | 09355-40805-600 | HOSE(4X8X600) |
| 62 | 09354-40805-300 | ホース,4X8X300 |
| 63 | 13299-82000-000 | Screw, throttle adjust |
| 64 | 13311-82000-000 | Spring |
| 65 | 13295-83150-000 | Screw, idle adjust |
| 66 | 13296-82000-000 | Washer |
| 67 | 13297-82000-000 | Spring |
| 68 | 13298-82000-000 | O ring |
| 69 | 13699-83050-000 | Pin, tamper |
| 70 | 13353-83050-000 | PISTON |
| 71 | 13331-82310-000 | Spring,piston return |
| 73 | 13200-60810-000 | Gasket set |
| 73 | 13200-83821-000 | GASKET SET,CARB |
| OEM | Part name | Category |
|---|---|---|
| 02112-06163-000 | Screw | Carburetor (CARBURETOR) |
| 02112-0616A-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-0616B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-06353-000 | Screw | Carburetor (CARBURETOR) |
| 02112-0635B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-34106-000 | Screw | Carburetor (CARBURETOR) |
| 02112-3410A-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-35086-000 | Screw | Carburetor (CARBURETOR) |
| 02112-3508B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-35126-000 | Screw | Carburetor (CARBURETOR) |
| 02112-3512A-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-35166-000 | Screw | Carburetor (CARBURETOR) |
| 02112-3516A-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-35206-000 | Screw | Carburetor (CARBURETOR) |
| 02112-3520B-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-36106-000 | Screw | Carburetor (CARBURETOR) |
| 02112-3610A-000 | SCREW | Carburetor (CARBURETOR) |
| 02112-74106-000 | Screw | Carburetor (CARBURETOR) |
| 02112-7410B-000 | SCREW | Carburetor (CARBURETOR) |
| 08321-0106A-000 | WASHER,LOCK | Carburetor (CARBURETOR) |
| 08321-31066-000 | Lock washer | Carburetor (CARBURETOR) |
| 08322-01043-000 | Washer | Carburetor (CARBURETOR) |
| 08322-0104A-000 | WASHER - Washer, cam rocker arm | Carburetor (CARBURETOR) |
| 08322-0104B-000 | WASHER - Washer, headlamp | Carburetor (CARBURETOR) |
| 09354-40805-300 | ホース,4X8X300 | Carburetor (CARBURETOR) |
| 09355-40805-600 | HOSE(4X8X600) | Carburetor (CARBURETOR) |
| 09383-02003-000 | E RING | Carburetor (CARBURETOR) |
| 09491-24025-000 | Jet, main - #123 | Carburetor (CARBURETOR) |
| 09491-86003-000 | Jet, main - #86 | Carburetor (CARBURETOR) |
| 09492-51004-000 | Jet, slow - #51 | Carburetor (CARBURETOR) |
| 09492-70006-000 | Jet, slow - #70 | Carburetor (CARBURETOR) |
| 13200-60810-000 | Gasket set | Carburetor (CARBURETOR) |
| 13200-63AC0-000 | Carburetor assy | Carburetor (CARBURETOR) |
| 13200-83821-000 | GASKET SET,CARB | Carburetor (CARBURETOR) |
| 13220-63A00-000 | Solenoid, switch vent | Carburetor (CARBURETOR) |
| 13225-82100-000 | SCREW | Carburetor (CARBURETOR) |
| 13227-82080-000 | HOLDER,THERMO ELEMENT | Carburetor (CARBURETOR) |
| 13228-82080-000 | ELEMENT,THERMO | Carburetor (CARBURETOR) |
| 13229-82080-000 | SEAL,THERMO ELEMENT | Carburetor (CARBURETOR) |
| 13233-83150-000 | BOOT,PUMP | Carburetor (CARBURETOR) |
| 13234-82000-000 | Screw | Carburetor (CARBURETOR) |
| 13235-63A00-000 | Piston assy, choke | Carburetor (CARBURETOR) |
| 13240-63A00-000 | Valve assy, solenoid | Carburetor (CARBURETOR) |
| 13241-82000-000 | O ring,solenoid valve | Carburetor (CARBURETOR) |
| 13251-82000-000 | Gauge, level | Carburetor (CARBURETOR) |
| 13252-82000-000 | O ring | Carburetor (CARBURETOR) |
| 13254-82000-000 | Plug, drain | Carburetor (CARBURETOR) |
| 13258-63A00-000 | Bleeder, main air - #60 | Carburetor (CARBURETOR) |
| 13259-83060-000 | Bleeder, main air - #70 | Carburetor (CARBURETOR) |
| 13261-63A00-000 | Valve, solenoid | Carburetor (CARBURETOR) |
| 13262-82000-000 | WASHER,SOLENOID VALVE | Carburetor (CARBURETOR) |
| 13265-83060-000 | Bleeder, slow air - #140 | Carburetor (CARBURETOR) |
| 13266-82000-000 | Bleeder, slow air - #100 | Carburetor (CARBURETOR) |
| 13266-83060-000 | Bleeder, slow air - #70 | Carburetor (CARBURETOR) |
| 13267-82000-000 | Gasket, level gauge | Carburetor (CARBURETOR) |
| 13267-82000-H17 | Gasket, level gauge | Carburetor (CARBURETOR) |
| 13295-83150-000 | Screw, idle adjust | Carburetor (CARBURETOR) |
| 13296-82000-000 | Washer | Carburetor (CARBURETOR) |
| 13297-82000-000 | Spring | Carburetor (CARBURETOR) |
| 13298-82000-000 | O ring | Carburetor (CARBURETOR) |
| 13299-82000-000 | Screw, throttle adjust | Carburetor (CARBURETOR) |
| 13311-82000-000 | Spring | Carburetor (CARBURETOR) |
| 13316-82000-000 | Hose | Carburetor (CARBURETOR) |
| 13318-82020-000 | VALVE,DELAY | Carburetor (CARBURETOR) |
| 13319-82000-000 | FLOAT | Carburetor (CARBURETOR) |
| 13321-82000-000 | WEIGHT,INJECTOR | Carburetor (CARBURETOR) |
| 13322-82000-000 | Spring,injector | Carburetor (CARBURETOR) |
| 13323-82000-000 | Pin, float | Carburetor (CARBURETOR) |
| 13324-82000-000 | Filter,needle valve | Carburetor (CARBURETOR) |
| 13325-82000-000 | BALL | Carburetor (CARBURETOR) |
| 13330-63A00-000 | Chamber assy, diaphragm | Carburetor (CARBURETOR) |
| 13331-82310-000 | Spring,piston return | Carburetor (CARBURETOR) |
| 13332-82000-000 | VALVE ASSY,NEEDLE | Carburetor (CARBURETOR) |
| 13337-63A00-000 | Switch, idle micro | Carburetor (CARBURETOR) |
| 13337-83060-000 | SWITCH,IDLE MICRO | Carburetor (CARBURETOR) |
| 13338-63A00-000 | Switch, wot micro | Carburetor (CARBURETOR) |
| 13350-83050-000 | Actuator assy | Carburetor (CARBURETOR) |
| 13353-83050-000 | PISTON | Carburetor (CARBURETOR) |
| 13361-63A00-000 | Gasket, choke chamber | Carburetor (CARBURETOR) |
| 13362-82000-000 | Insulator | Carburetor (CARBURETOR) |
| 13362-82000-H17 | INSULATOR,NA | Carburetor (CARBURETOR) |
| 13363-82000-000 | GASKET,DRAIN PLUG | Carburetor (CARBURETOR) |
| 13364-82000-000 | GASKET,NEEDLE VALVE | Carburetor (CARBURETOR) |
| 13371-82000-000 | Cotter pin | Carburetor (CARBURETOR) |
| 13372-86060-000 | Washer | Carburetor (CARBURETOR) |
| 13374-82000-000 | E ring | Carburetor (CARBURETOR) |
| 13375-82000-000 | Screw | Carburetor (CARBURETOR) |
| 13377-82000-000 | Screw | Carburetor (CARBURETOR) |
| 13382-83060-000 | Screw | Carburetor (CARBURETOR) |
| 13384-83060-000 | Screw | Carburetor (CARBURETOR) |
| 13385-86060-000 | Connector, 4p | Carburetor (CARBURETOR) |
| 13395-86060-000 | Connector, 6p | Carburetor (CARBURETOR) |
| 13421-83050-000 | Hose | Carburetor (CARBURETOR) |
| 13422-83050-000 | Hose | Carburetor (CARBURETOR) |
| 13423-63A00-000 | Hose | Carburetor (CARBURETOR) |
| 13699-83050-000 | Pin, tamper | Carburetor (CARBURETOR) |
