Search › Model › SE413
SE413

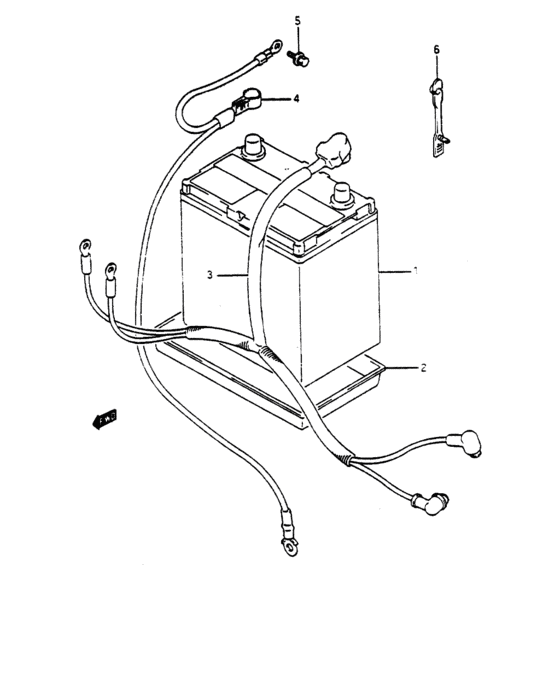

Battery (BATTERY) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-60A20-000 | Battery assy - 12v,38ah |
| 1 | 33610-83021-000 | Battery - 55b24r s -mf |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33800-63A00-000 | Cable, starter motor |
| 4 | 33850-60A00-000 | CABLE,STG MOT GND |
| 5 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 5 | 09115-06005-000 | BOLT(6X16) |
| 6 | 09407-05403-000 | CLAMP,L:88 |
| OEM | Part name | Category |
|---|---|---|
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09407-05403-000 | CLAMP,L:88 | Battery (BATTERY) |
| 33610-60A20-000 | Battery assy - 12v,38ah | Battery (BATTERY) |
| 33610-83021-000 | Battery - 55b24r s -mf | Battery (BATTERY) |
| 33660-71L10-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33660-73010-000 | Tray, battery | Battery (BATTERY) |
| 33800-63A00-000 | Cable, starter motor | Battery (BATTERY) |
| 33850-60A00-000 | CABLE,STG MOT GND | Battery (BATTERY) |
