SD306

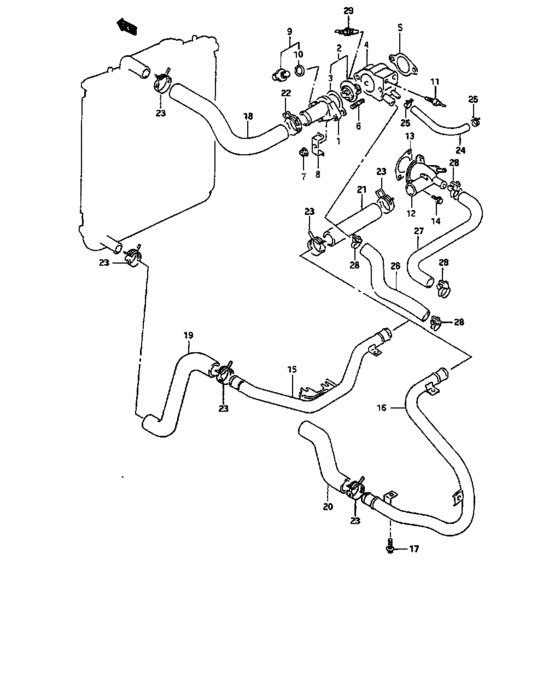

Water hose (Hong Kong) 37
| # | OEM | Part name |
|---|---|---|
| 1 | 17561-61F00-000 | CAP,WATER THERMOSTAT |
| 2 | 17600-85811-000 | THERMOSTAT SET,WATER 82 DEG |
| 3 | 17569-82001-H17 | GASKET,WTR THERMO CAP |
| 4 | 17690-61F00-000 | CASE,THERMOSTAT |
| 5 | 17699-53F01-000 | GASKET |
| 6 | 01411-08753-000 | スタッドボルト |
| 6 | 01411-0875A-000 | BOLT,STUD |
| 7 | 08316-10083-000 | Nut |
| 7 | 08316-1008B-000 | NUT |
| 8 | 17568-53A00-000 | PLATE,EARTH |
| 9 | 17680-50F00-000 | SWITCH,FAN THERMO |
| 9 | 17680-50F01-000 | Switch Comp,rdtr Fan |
| 10 | 17689-50F00-000 | O-RING |
| 11 | 34850-70B10-000 | GAUGE ASSY,WATER TEMP |
| 12 | 17550-72X50-000 | CAP,WATER INLET |
| 13 | 17559-73000-H17 | ガスケット,ウォータ,インレット |
| 13 | 17559-73010-000 | GASKET,WATER INLET PIPE |
| 14 | 01550-06203-000 | Bolt |
| 14 | 01550-0620B-000 | Bolt - Bolt, inspection cap |
| 15 | 17840-70B01-000 | パイプ,ラジエータ,アウトレット |
| 15 | 17840-70B0V-000 | PIPE,RDTR OUTLET |
| 18 | 17852-61D00-000 | HOSE,RDTR INLET |
| 19 | 17854-70G10-000 | Hose, radiator outlet |
| 19 | 17854-70G00-000 | HOSE,RADIATOR OUTLET |
| 21 | 17856-50F10-000 | HOSE,RADIATOR |
| 22 | 09401-31405-000 | クリップ |
| 22 | 09401-31406-000 | CLIP |
| 22 | 17859-70G00-000 | Clip |
| 22 | 09401-30405-000 | CLIP |
| 22 | 09401-30403-000 | CLIP |
| 23 | 09402-32511-000 | CLAMP |
| 24 | 09352-90141-600 | HOSE(9X14X600) |
| 25 | 09401-13417-000 | CLIP |
| 26 | 17871-70B02-000 | HOSE,HEATER INLET |
| 27 | 17872-72B50-000 | HOSE,HEATER OUTLET |
| 28 | 09401-18403-000 | CLIP - Clip, heater hose |
| 29 | 95644-50F00-000 | GAUGE,WATER TEMP |
| OEM | Part name | Category |
|---|---|---|
| 01411-08753-000 | スタッドボルト | Water hose (Hong Kong) |
| 01411-0875A-000 | BOLT,STUD | Water hose (Hong Kong) |
| 01550-06203-000 | Bolt | Water hose (Hong Kong) |
| 01550-0620B-000 | Bolt - Bolt, inspection cap | Water hose (Hong Kong) |
| 08316-10083-000 | Nut | Water hose (Hong Kong) |
| 08316-1008B-000 | NUT | Water hose (Hong Kong) |
| 09352-90141-600 | HOSE(9X14X600) | Water hose (Hong Kong) |
| 09401-13417-000 | CLIP | Water hose (Hong Kong) |
| 09401-18403-000 | CLIP - Clip, heater hose | Water hose (Hong Kong) |
| 09401-30403-000 | CLIP | Water hose (Hong Kong) |
| 09401-30405-000 | CLIP | Water hose (Hong Kong) |
| 09401-31405-000 | クリップ | Water hose (Hong Kong) |
| 09401-31406-000 | CLIP | Water hose (Hong Kong) |
| 09402-32511-000 | CLAMP | Water hose (Hong Kong) |
| 17550-72X50-000 | CAP,WATER INLET | Water hose (Hong Kong) |
| 17559-73000-H17 | ガスケット,ウォータ,インレット | Water hose (Hong Kong) |
| 17559-73010-000 | GASKET,WATER INLET PIPE | Water hose (Hong Kong) |
| 17561-61F00-000 | CAP,WATER THERMOSTAT | Water hose (Hong Kong) |
| 17568-53A00-000 | PLATE,EARTH | Water hose (Hong Kong) |
| 17569-82001-H17 | GASKET,WTR THERMO CAP | Water hose (Hong Kong) |
| 17600-85811-000 | THERMOSTAT SET,WATER 82 DEG | Water hose (Hong Kong) |
| 17680-50F00-000 | SWITCH,FAN THERMO | Water hose (Hong Kong) |
| 17680-50F01-000 | Switch Comp,rdtr Fan | Water hose (Hong Kong) |
| 17689-50F00-000 | O-RING | Water hose (Hong Kong) |
| 17690-61F00-000 | CASE,THERMOSTAT | Water hose (Hong Kong) |
| 17699-53F01-000 | GASKET | Water hose (Hong Kong) |
| 17840-70B01-000 | パイプ,ラジエータ,アウトレット | Water hose (Hong Kong) |
| 17840-70B0V-000 | PIPE,RDTR OUTLET | Water hose (Hong Kong) |
| 17852-61D00-000 | HOSE,RDTR INLET | Water hose (Hong Kong) |
| 17854-70G00-000 | HOSE,RADIATOR OUTLET | Water hose (Hong Kong) |
| 17854-70G10-000 | Hose, radiator outlet | Water hose (Hong Kong) |
| 17856-50F10-000 | HOSE,RADIATOR | Water hose (Hong Kong) |
| 17859-70G00-000 | Clip | Water hose (Hong Kong) |
| 17871-70B02-000 | HOSE,HEATER INLET | Water hose (Hong Kong) |
| 17872-72B50-000 | HOSE,HEATER OUTLET | Water hose (Hong Kong) |
| 34850-70B10-000 | GAUGE ASSY,WATER TEMP | Water hose (Hong Kong) |
| 95644-50F00-000 | GAUGE,WATER TEMP | Water hose (Hong Kong) |
