SD306

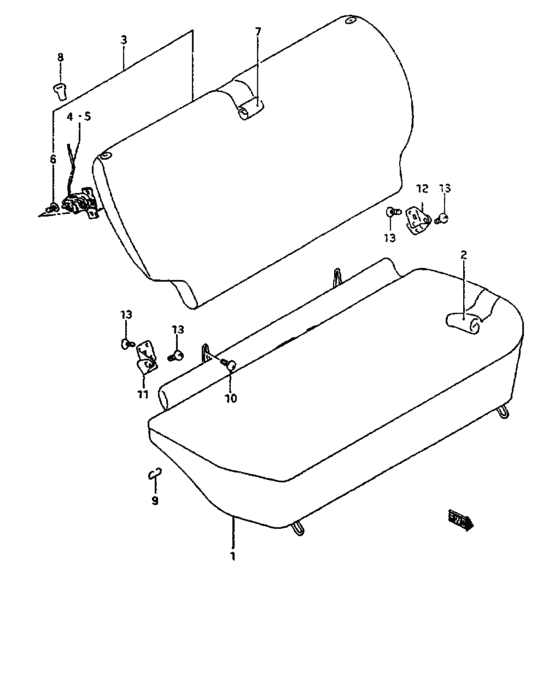

Rear seat (REAR SEAT) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 87160-70G00-000 | PAD,REAR CUSHON |
| 2 | 87180-70G00-D7A | トリム,リヤクッション |
| 2 | 87180-70G00-D7B | トリム,リヤクッション |
| 2 | 87180-70G00-J1L | Trim, rear seat cushion |
| 2 | 87180-70G00-J0Z | Trim comp,rr cush |
| 3 | 87305-70G00-000 | Back sub assy,rr |
| 4 | 87840-70G00-000 | Lock assy,rr back,r |
| 5 | 87940-70G00-000 | LOCK ASSY,RR BACK,L |
| 6 | 02142-06123-000 | Screw - Screw, tilt up handle |
| 6 | 02142-0612B-000 | SCREW |
| 6 | 02142-0612A-000 | SCREW |
| 7 | 87380-70G00-D7A | トリム,リヤバック |
| 7 | 87380-70G00-D7B | トリム,リヤバック |
| 7 | 87380-70G00-J1L | Trim, rear seat back |
| 7 | 87380-70G00-J0Z | トリム,リヤバック |
| 8 | 87846-82000-5ES | KNOB, SEAT BACK LOCK (BLACK) |
| 9 | 09387-19001-000 | RING |
| 10 | 09136-06017-000 | SCREW(6X16) |
| 10 | 09136-06133-000 | BOLT(6X16) - Screw |
| 11 | 87850-70G00-000 | Hinge comp,rr back,r |
| 12 | 87950-70G00-000 | HINGE,RR BACK,L |
| 13 | 02142-06163-000 | Screw |
| 13 | 02142-0616A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02142-06123-000 | Screw - Screw, tilt up handle | Rear seat (REAR SEAT) |
| 02142-0612A-000 | SCREW | Rear seat (REAR SEAT) |
| 02142-0612B-000 | SCREW | Rear seat (REAR SEAT) |
| 02142-06163-000 | Screw | Rear seat (REAR SEAT) |
| 02142-0616A-000 | SCREW | Rear seat (REAR SEAT) |
| 09136-06017-000 | SCREW(6X16) | Rear seat (REAR SEAT) |
| 09136-06133-000 | BOLT(6X16) - Screw | Rear seat (REAR SEAT) |
| 09387-19001-000 | RING | Rear seat (REAR SEAT) |
| 87160-70G00-000 | PAD,REAR CUSHON | Rear seat (REAR SEAT) |
| 87180-70G00-D7A | トリム,リヤクッション | Rear seat (REAR SEAT) |
| 87180-70G00-D7B | トリム,リヤクッション | Rear seat (REAR SEAT) |
| 87180-70G00-J0Z | Trim comp,rr cush | Rear seat (REAR SEAT) |
| 87180-70G00-J1L | Trim, rear seat cushion | Rear seat (REAR SEAT) |
| 87305-70G00-000 | Back sub assy,rr | Rear seat (REAR SEAT) |
| 87380-70G00-D7A | トリム,リヤバック | Rear seat (REAR SEAT) |
| 87380-70G00-D7B | トリム,リヤバック | Rear seat (REAR SEAT) |
| 87380-70G00-J0Z | トリム,リヤバック | Rear seat (REAR SEAT) |
| 87380-70G00-J1L | Trim, rear seat back | Rear seat (REAR SEAT) |
| 87840-70G00-000 | Lock assy,rr back,r | Rear seat (REAR SEAT) |
| 87846-82000-5ES | KNOB, SEAT BACK LOCK (BLACK) | Rear seat (REAR SEAT) |
| 87850-70G00-000 | Hinge comp,rr back,r | Rear seat (REAR SEAT) |
| 87940-70G00-000 | LOCK ASSY,RR BACK,L | Rear seat (REAR SEAT) |
| 87950-70G00-000 | HINGE,RR BACK,L | Rear seat (REAR SEAT) |
