SD306

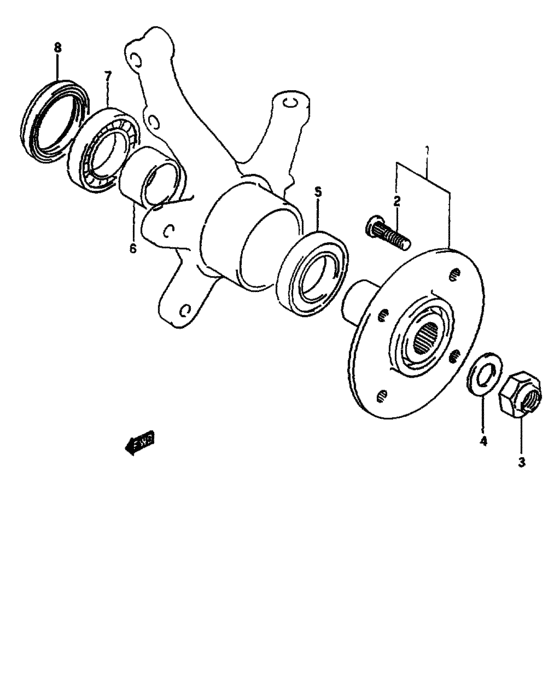

Front wheel hub (FRONT WHEEL HUB) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 43420-50810-000 | HUB SET,FR WHL |
| 2 | 09119-12012-000 | BOLT(12X38) |
| 3 | 09159-18008-000 | NUT |
| 4 | 09160-18017-000 | WASHER(18X35X4) |
| 5 | 09262-35032-000 | BEARING(35X62X14) |
| 6 | 43483-70BA0-000 | SPACER,FRONT WHEEL BEARING |
| 7 | 09262-35012-000 | BEARING(35X62X14) |
| 8 | 09283-44011-000 | SEAL,OIL(44X62X8) |
| OEM | Part name | Category |
|---|---|---|
| 09119-12012-000 | BOLT(12X38) | Front wheel hub (FRONT WHEEL HUB) |
| 09159-18008-000 | NUT | Front wheel hub (FRONT WHEEL HUB) |
| 09160-18017-000 | WASHER(18X35X4) | Front wheel hub (FRONT WHEEL HUB) |
| 09262-35012-000 | BEARING(35X62X14) | Front wheel hub (FRONT WHEEL HUB) |
| 09262-35032-000 | BEARING(35X62X14) | Front wheel hub (FRONT WHEEL HUB) |
| 09283-44011-000 | SEAL,OIL(44X62X8) | Front wheel hub (FRONT WHEEL HUB) |
| 43420-50810-000 | HUB SET,FR WHL | Front wheel hub (FRONT WHEEL HUB) |
| 43483-70BA0-000 | SPACER,FRONT WHEEL BEARING | Front wheel hub (FRONT WHEEL HUB) |
