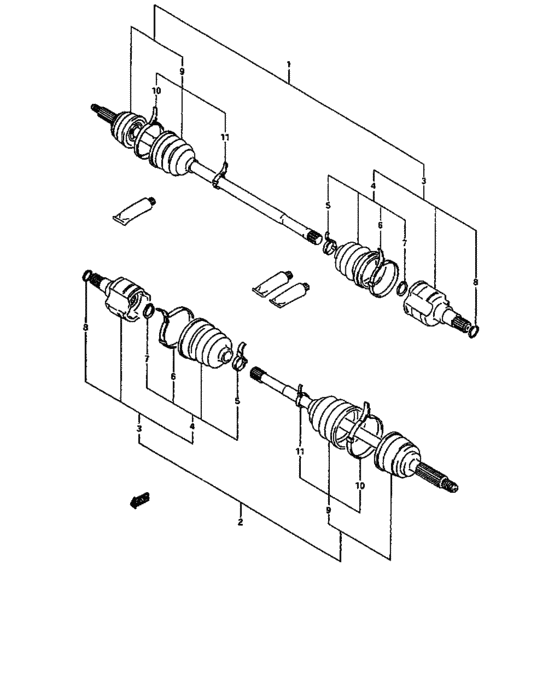

Front axle (MT)
11
| # | OEM | Part name |
|---|
| 1 |
44101-60DA1-000 |
シャフトアッシ,フロントドライブ,ライト |
| 1 |
44101-60DJ1-000 |
SHAFT ASSY,FRONT DRIVE,R |
| 2 |
44102-60DA1-000 |
シャフトアッシ,フロントドライブ,レフト |
| 2 |
44102-60DJ1-000 |
SHAFT ASSY,FRONT DRIVE,L |
| 3 |
44114-60DA0-000 |
JOINT ASSY,DIFF SIDE |
| 4 |
44119-60DA0-000 |
BOOT SET,DIFF SIDE |
| 5 |
44124-84040-000 |
BAND,BOOT |
| 6 |
44122-84040-000 |
BAND,BOOT |
| 7 |
44111-71B20-000 |
RING,SNAP |
| 8 |
44112-71B10-000 |
SNAP RING |
| 9 |
44118-60DA0-000 |
BOOT SET,WHEEL SIDE |
| OEM |
Part name |
Category |
| 44101-60DA1-000 |
シャフトアッシ,フロントドライブ,ライト |
Front axle (MT) |
| 44101-60DJ1-000 |
SHAFT ASSY,FRONT DRIVE,R |
Front axle (MT) |
| 44102-60DA1-000 |
シャフトアッシ,フロントドライブ,レフト |
Front axle (MT) |
| 44102-60DJ1-000 |
SHAFT ASSY,FRONT DRIVE,L |
Front axle (MT) |
| 44111-71B20-000 |
RING,SNAP |
Front axle (MT) |
| 44112-71B10-000 |
SNAP RING |
Front axle (MT) |
| 44114-60DA0-000 |
JOINT ASSY,DIFF SIDE |
Front axle (MT) |
| 44118-60DA0-000 |
BOOT SET,WHEEL SIDE |
Front axle (MT) |
| 44119-60DA0-000 |
BOOT SET,DIFF SIDE |
Front axle (MT) |
| 44122-84040-000 |
BAND,BOOT |
Front axle (MT) |
| 44124-84040-000 |
BAND,BOOT |
Front axle (MT) |
