SCP92

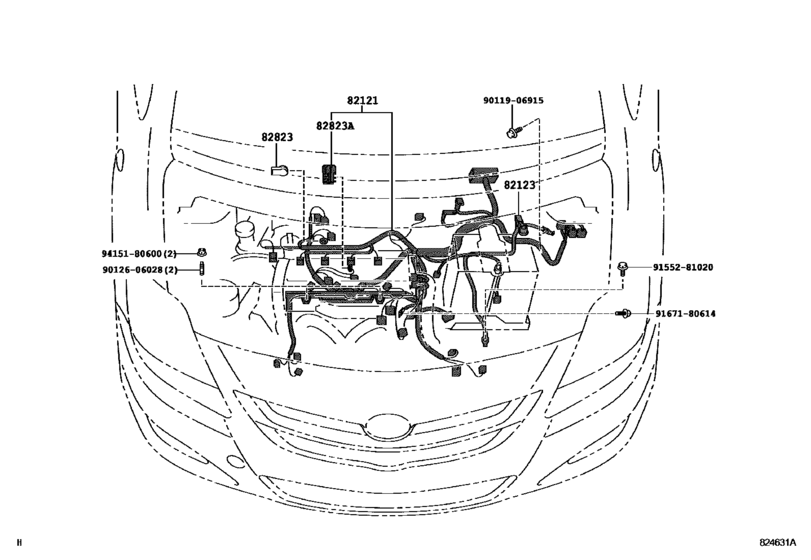

Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) 10
| # | OEM | Part name |
|---|---|---|
| 82121 | 82121-52E20 | Wire, Engine |
| 82121 | 82121-52L40 | Wire, Engine |
| 82123 | 82123-52230 | Wire, Engine, No.3 |
| 82823 | 82823-22050 | Cap, Terminal, No.1 |
| 82823 | 82823-20080 | Cap, Terminal, No.1 |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9012606028 | 90126-06028 | Bolt, Stud(For Oil Pan) |
| 9155281020 | 91552-81020 | Bolt(For Alternator) |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 82121-52E20 | Wire, Engine | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 82121-52L40 | Wire, Engine | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 82123-52230 | Wire, Engine, No.3 | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 82823-20080 | Cap, Terminal, No.1 | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 82823-22050 | Cap, Terminal, No.1 | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 90126-06028 | Bolt, Stud(For Oil Pan) | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 91552-81020 | Bolt(For Alternator) | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Wiring & Clamp ([11.2005 - ] ｴﾝｼﾞﾝ (0511- )SCP92) |
